Interfaces; Video Output Port - Intergraph RealiZm Graphics Z10 Hardware User's Manual

60

Interfaces

RealiZm graphics accelerators have three interface connections: a video output port, a VGA
input port, and a stereo sync output port.

Video Output Port

The video output port provides connection to the monitor. The recommended cable length is
less than three meters. The following table provides the pin connections for the video output
port.
Z10 Signal Name
Red Analog Video
Green Analog Video
Blue Analog Video
Ground
Ground
Ground
Ground
Ground
No Connect
Ground
Ground
Ground
Horizontal Sync
Vertical Sync
Ground

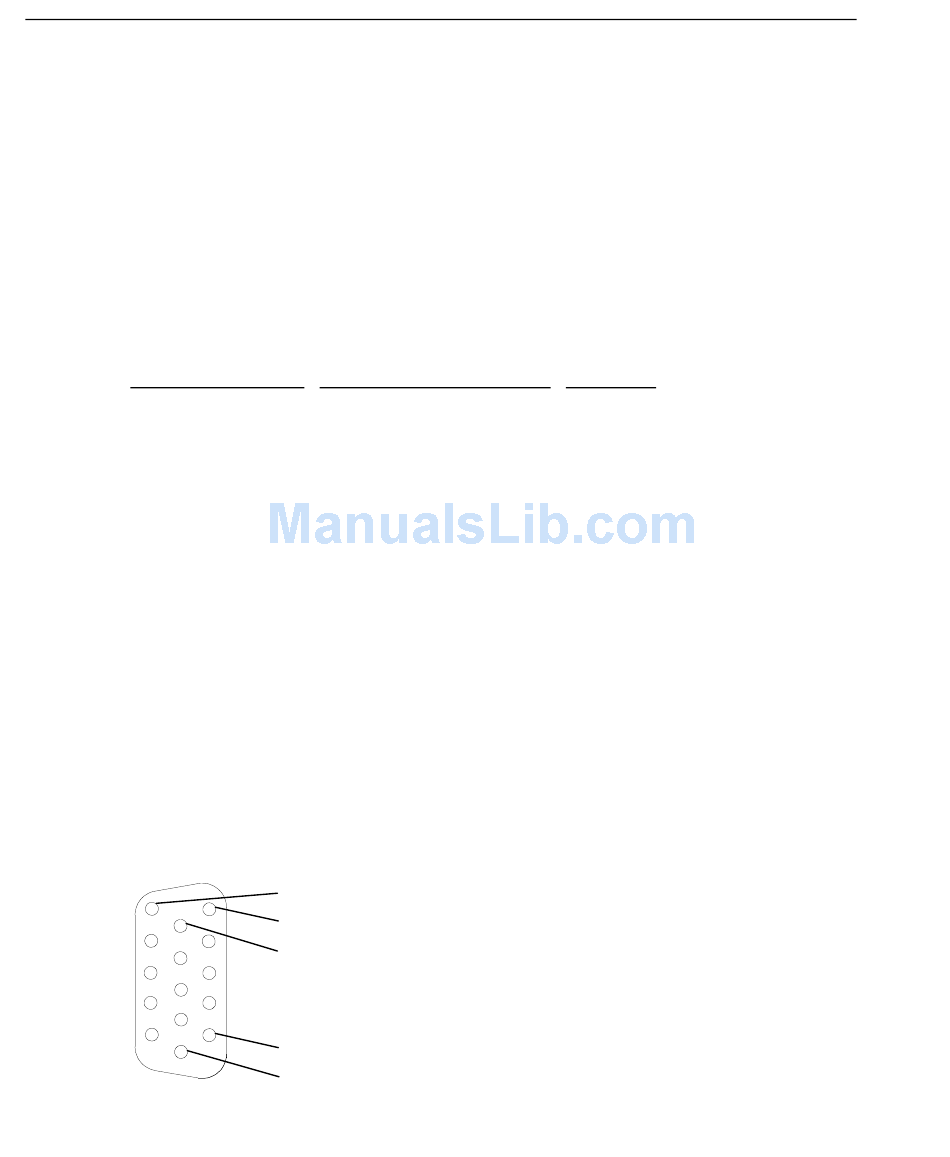

The video output port is female, 15-pin, D-Sub as shown in the following figure.
Z13/Z25/V25 Signal Name
Red Analog Video
Green Analog Video
Blue Analog Video
Monitor ID [2]
Ground
Ground
Ground
Ground
Supply +5V
Ground
Monitor ID [0]
Monitor ID [1]
Horizontal Sync
Vertical Sync
Monitor ID [3]
15
5
10
1
6
Pin
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
