Intergraph InterRAID-12 Hardware User's Manual

Disk array cabinet
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

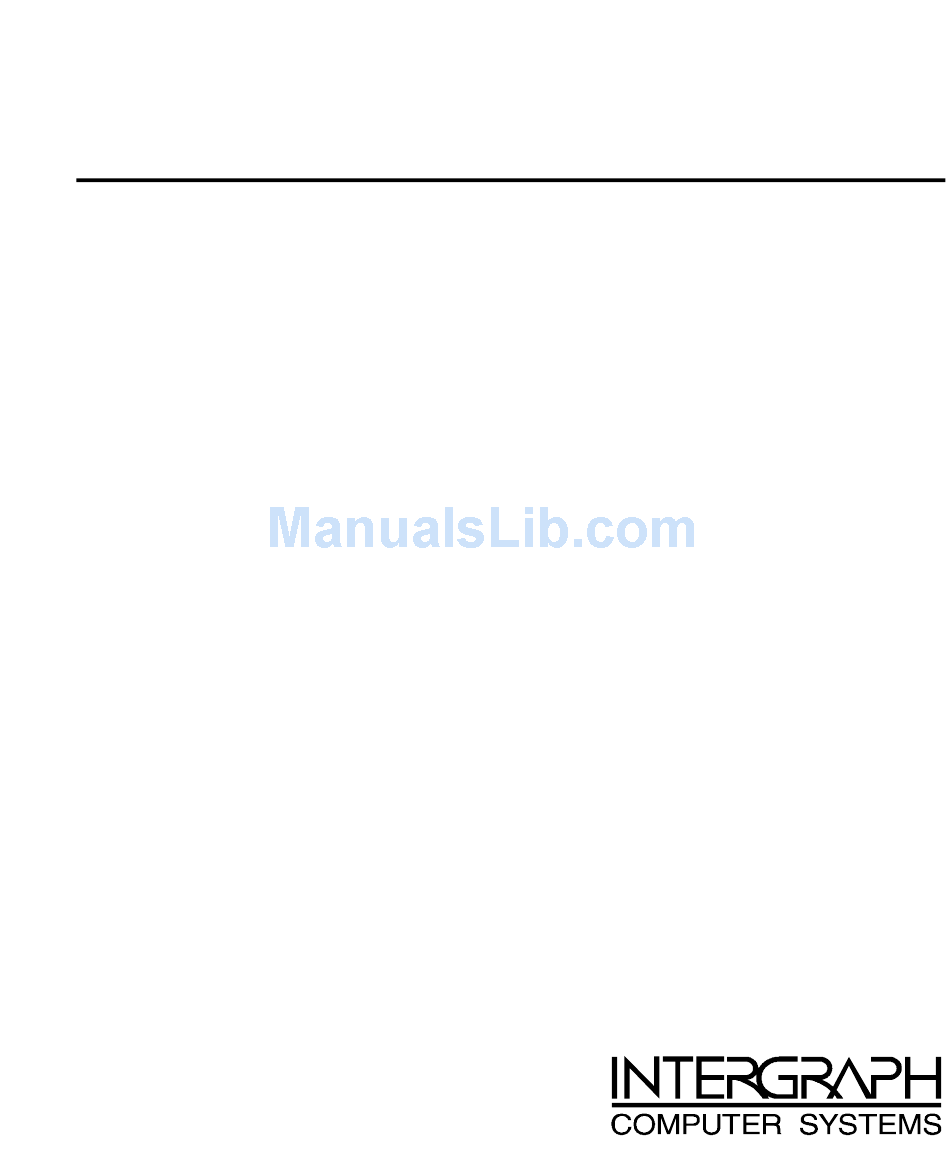

InterRAID
Hardware User's Guide
January 1997
DHA018210

Advertisement

Table of Contents
loading

Related Manuals for Intergraph InterRAID-12

Summary of Contents for Intergraph InterRAID-12

  • Page 1 InterRAID Hardware User’s Guide January 1997 DHA018210...
  • Page 2 The software discussed in this document is furnished under a license and may be used or copied only in accordance with the terms of the license. No responsibility is assumed by Intergraph for the use or reliability of software on equipment that is not supplied by Intergraph or its affiliated companies.
  • Page 3 FCC Compliance This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy.

  • Page 5: Table Of Contents

    Finding Operating System Information ................xii Getting Documentation and Training ................xiii Getting Telephone Support ....................xiii Using the Intergraph Bulletin Board Service ..............xiv Using the Intergraph FAXLink ..................xiv Finding Intergraph on the Internet ..................xv 1 Getting Started ....................... 1 Unpacking the Equipment ....................
  • Page 6 Expanding the System ......................18 Unpacking ......................18 Placing Cabinets ....................19 Setting Up Host.....................20 Installing Multiple Expansions ................21 Installing the RAID Disk Drives ..................23 Powering On and Configuring the System ................25 Important Operating Notices .................25 Important Software Notices...................25 4 Setting Up and Expanding InterRAID-12..............27 Connecting InterRAID-12 to the System................27 Connecting Remaining Cabinets and Cables ...............28 Expanding the System ......................29...
  • Page 7 Error Conditions ........................ 70 Installation Aborted Errors ................... 70 NVRAM/Flash Configuration Mismatch Errors ........... 71 Controller Checksum Errors ................. 71 Common DACCF Procedures..................... 72 Enabling Automatic Rebuild................. 72 Changing the Write Policy ................... 73 Configuring Additional Disk Arrays ..............73 Recovering Unusable (DED) Disk Drives.............
  • Page 8 viii View Log......................118 Diagnostics ......................118 Enclosure Management ..................118 Properties......................119 Hide/Show Toolbox.....................120 Performance Monitor ..................120 Object Identification....................120 Enable/Disable Sound ..................121 Enable/Disable Alarm Control ................121 Exit........................121 Physical Drv Menu ......................121 Rebuild .......................121 Abort Rebuild .....................122 Format ........................122 Diagnostics ......................122 Tools........................122 Properties......................122 Logical Drv Menu ......................123 Create .........................123 Initialize ......................124 Check Parity .......................125...
  • Page 9 RAID SCSI Bus....................146 Components........................146 i960 RISC Processor................... 146 Cache Memory....................147 PCI Connector....................147 Flash EEPROM (MegaRAID Only)..............147 SCSI Controller....................147 External RAID SCSI Connector (DAC960PD and MegaRAID)......147 Onboard Speaker (MegaRAID Only)..............147 10 Configuring the Disk Array for Performance ............149 RAID Technology......................
  • Page 10 SCSI Bus Access Failure..................165 Hardware and Software Failures ..................166 InterRAID-8 Power Supply Failures..............166 Disk Drive Rebuild and Disk Drive Failure ............166 Windows NT Server Failure................167 Removable Media Drive Failure................167 Glossary ..........................169 Index..........................177 Returning Equipment to Intergraph Returned Goods Authorization (RGA) Form Shipping Labels...

  • Page 11: Preface

    The InterRAID Hardware User’s Guide provides user and technical information about the InterRAID-6, InterRAID-8, and InterRAID-12 disk array cabinet. It provides instructions for installing and expanding the disk array cabinets for use with Intergraph’s servers. This guide provides hardware and software installation procedures, specifications, and troubleshooting information.

  • Page 12: Document Conventions

    Windows NT System Guide, delivered on CD-ROM with the operating system, and to Windows NT Help. You can purchase a printed copy of the System Guide from Intergraph. For detailed information on installing and updating Windows NT, refer to the Windows...

  • Page 13: Getting Documentation And Training

    Outside the United States, contact the Intergraph subsidiary or distributor from which you purchased your Intergraph product to place an order. To find information on training for Intergraph products, or to enroll for an available class, contact Intergraph Training Solutions at 1-800-240-3000.

  • Page 14: Using The Intergraph Bulletin Board Service

    Using the Intergraph Bulletin Board Service Available 24 hours a day, 7 days a week, the Intergraph Bulletin Board Service (IBBS) is an electronic forum for Intergraph customers to exchange information with Intergraph’s technical and marketing staff, and with other Intergraph customers. You can use the IBBS to get technical support information, documentation and training information, programs, and software updates and fixes.

  • Page 15: Finding Intergraph On The Internet

    You can participate in the Intergraph Customer Forum (ICF), a bidirectional gateway to the USENET newsgroup comp.sys.intergraph. Anything posted to that group or sent to comp-sys-intergraph@ingr.com is emailed to all subscribers. Incoming email messages are also posted to the newsgroup. You can subscribe to the ICF via Intergraph Online.

  • Page 16: Getting Started

    1 Getting Started The InterRAID-6, InterRAID-8, and InterRAID-12 disk array cabinets are easy to set up and connect to an Intergraph desktop or deskside system. This document assumes the system base unit is already set up. NOTE To unpack and connect the rack-mount InterRAID-8 cabinet, refer to the hardware documentation for the rack-mounted system.

  • Page 17: Identifying The Operating System Disk Drives

    Retain all packaging materials. Equipment returned for repair must be in the original packaging to obtain warranty service, if provided under your contract agreement. NOTE If any of the listed parts are missing or damaged, call the Intergraph Customer Response Center at 1-800-633-7248. Identifying the Operating System Disk Drives The box containing the operating system disk drives is labeled, “This box contains disk...

  • Page 18: Raid Controller Board

    NOTE After inserting the key into the lock, the key can only be removed when the door is locked. Describing Applicable Intergraph Systems The dual-channel InterRAID-8 is available as a deskside (tower) unit, and the rack-mount version is available as dual-channel and single-channel, depending on the system to which it...
  • Page 19 The following tables list current InterRAID cabinets, systems, controllers, and applicable software. InterRAID-6 Intergraph System Controller/Software Cabinet Software Single-channel DTP Server (TD-40) DAC960xx with Smart Cabinet Tower InterServe 21 DACCF, DACADM, InterServe 32 and DACMON utilities TD-30, TD-40 TDZ-600, TDZ-610...

  • Page 20: Identifying System Pci Slots

    Intergraph does not recommend striping a 2-pack or logical drive across Smart cabinets and SAF-TE cabinets. For more information on striping, refer to the appropriate chapter in this guide for the installed controller and the applicable software utility. DAC960xx with DACCF, DACADM, and DACMON utilities are found in Chapter 5.

  • Page 21: Determining The Raid Controller

    Determining the RAID Controller You can determine which RAID controller is installed in your system by viewing the BIOS banner during the boot process. Chapters 5 and 6 provide examples of the BIOS banner for the appropriate RAID controller. Refer to Chapter 5 for either a DAC960P or DAC960PD controller, or Chapter 6 for a MegaRAID controller.

  • Page 22: Setting Up And Expanding Interraid-6

    2 Setting Up and Expanding InterRAID-6 To set up the InterRAID-6 disk array with a system base unit, you will perform the following tasks: Connect the InterRAID-6 cabinet to the system base unit. Expand the system (if installing additional disk arrays). Install the RAID disk drives.

  • Page 23: Connecting Remaining Cabinets And Cables

    4. If you have additional cabinets, connect the RAID SCSI cables and power cords in the same manner as instructed above. 5. For Intergraph deskside systems, use the following table as a guide to install any secondary RAID controller boards.

  • Page 24: Unpacking

    Retain all packaging materials. You must return the system in the original packaging to obtain warranty service. Refer to the instructions in the back of this guide for returning equipment to Intergraph. Setting Up Host The following provides instructions for setting up the host system for use with an...

  • Page 25: Installing The Raid Disk Drives

    NOTE Intergraph attaches a SCSI ID number to the disk drive label to identify each of the boot disk drives. All other disk drives are for data storage and do not specify a SCSI ID number.
  • Page 26 2. Remove the RAID disk drives from the carton labeled, “This box contains disk drives loaded with operating system software..” For TD-xx desktop and deskside systems, the first three drives (ID 0, 1, 2) contain the operating system. For the DTP Server systems, all six disk drives contain the operating system.

  • Page 27: Powering On And Configuring The System

    RAID controller board number (ADP X), channel number (CHN Y), and SCSI ID number (ID Z). In the following table, Intergraph reserves SCSI ID 3 for the entire disk array. All six RAID disk drives connect to a single channel.

  • Page 28: Important Software Notices

    Write-through caching reduces the risk of data loss in the event of a power failure. Write-back caching improves performance, but the drawback is potential data loss if power fails. Intergraph recommends connection to a UPS to guard against data loss.
  • Page 29 5. If necessary, configure the RAID controller board to your preferences. Refer to Chapter 5 “Using DAC InterRAID Utilities,” or Chapter 6 “Using MegaRAID BIOS” and Chapter 7, “Using Power Console.” 6. Use Disk Administrator in Windows NT to partition and format the disk space not used by the operating system.

  • Page 30: Setting Up And Expanding Interraid-8

    3 Setting Up and Expanding InterRAID-8 To set up the InterRAID-8 disk array with a system base unit, you will perform the following tasks: Connect the InterRAID-8 cabinet to the system base unit. Expand the system (if installing additional disk arrays). Install the RAID disk drives.

  • Page 31: Dual-Channel

    RAID Controller Channel 0 Board in Base Unit 2. Connect the other end of the RAID SCSI cable to the channel 0 port on the RAID controller board in the system base unit. Dual-Channel To connect the dual-channel InterRAID-8 cabinet: 1.

  • Page 32: Connecting Remaining Cabinets And Cables

    The primary RAID controller board connects to the internal RAID subsystem. For Intergraph deskside systems with an internal hard disk drive, the boot drive is the internal hard disk drive and does not require connection to a primary RAID controller board.

  • Page 33: Expanding The System

    For InterServe 650, 660 systems, use the following table as a guide to install any secondary RAID controller boards. Number of RAID Controllers Primary Secondary Secondary Secondary PCI Slot 7 PCI Slot 7 PCI Slot 6 Three PCI Slot 7 PCI Slot 6 PCI Slot 5 Four...

  • Page 34: Placing Cabinets

    Retain all packaging materials. You must return the system in the original packaging to obtain warranty service. Refer to the instructions in the back of this guide for returning equipment to Intergraph. Placing Cabinets To place the cabinets side-by-side: 1.

  • Page 35: Setting Up Host

    Setting Up Host The following provides instructions for installing the internal expansion cable in the host to use Channel 2 of the secondary RAID controller board. To set up host for use with InterRAID-8: 1. Connect the internal expansion cable to the Channel 2 connector of the secondary RAID controller board as shown in the following figure (here, the secondary RAID controller is installed in PCI slot 2).

  • Page 36: Installing Multiple Expansions

    Internal Expansion Cable Screw ISA I/O Slot Panel ISA I/O Lock Bracket RAID Connector Bracket 4. Remove the blanking plate from an available ISA I/O slot. 5. Install the RAID connector bracket of the internal expansion cable into the ISA I/O slot. 6.
  • Page 37 Adding a third expansion is not shown, but is discussed later. Available Internal RAID ISA I/O Subsystem and slot Cabling “B” Expansion (See Note 2.) “A” Expansion (See Note 1.) Channel 0 Channel 2 Channel 1 Channels 0, 1, and 2 on the primary RAID controller board in PCI slot 3 supports two external disk arrays and one internal RAID subsystem.

  • Page 38: Installing The Raid Disk Drives

    The left-hand side of the disk drive label identifies the disk drive size. NOTE Intergraph attaches a SCSI ID number to the disk drive label to identify each of the boot disk drives. All other disk drives are for data storage and do not specify a SCSI ID number.
  • Page 39 RAID controller board number (ADP X), channel number (CHN Y), and SCSI ID number (ID Z). In the tables below, Intergraph reserves SCSI ID 3 for the entire disk array and SCSI ID 7 for the RAID controller board. In a single-channel InterRAID-8 cabinet, all eight RAID disk drives connect to a single channel.

  • Page 40: Powering On And Configuring The System

    In a dual-channel InterRAID-8 cabinet, the lower four RAID disk drives connect to channel 0; the upper four RAID disk drives connect to channel 1. Use the following table to label the drives: Disk Drive Label InterRAID-8 Slots ADP X CHN 1 ID 4 Slot 8 (top, if deskside;...
  • Page 41 Write-through caching reduces the risk of data loss in the event of a power failure. Write-back caching improves performance, but the drawback is potential data loss if power fails. Intergraph recommends connection to a UPS to guard against data loss.

  • Page 42: Setting Up And Expanding Interraid-12

    4 Setting Up and Expanding InterRAID-12 To set up the InterRAID-12 disk array with a system base unit, you will perform the following tasks: Connect the InterRAID-12 cabinet to the system base unit. Expand the system (if installing additional disk arrays). Install the RAID disk drives.

  • Page 43: Connecting Remaining Cabinets And Cables

    The primary RAID controller board connects to the internal RAID subsystem. For Intergraph deskside systems with an internal hard disk drive, the boot drive is the internal hard disk drive and does not require connection to a primary RAID controller board.

  • Page 44: Expanding The System

    Retain all packaging materials. You must return the system in the original packaging to obtain warranty service. Refer to the instructions in the back of this guide for returning equipment to Intergraph. Placing Cabinets To place the cabinets side-by-side: 1.

  • Page 45: Setting Up Host

    To stack the cabinets: 1. If existing InterRAID cabinets are not already stacked, remove the RAID disk drives from them and place the drives on an antistatic surface. CAUTION Keep track of the drive locations. You must install the drives in the same cabinets and slots from which you remove them.

  • Page 46: Installing The Raid Disk Drives

    NOTE Intergraph attaches a SCSI ID number to the disk drive label to identify each of the boot disk drives. All other disk drives are for data storage and do not specify a SCSI ID number.
  • Page 47 RAID controller board number (ADP X), channel number (CHN Y), and SCSI ID number (ID Z). In the table below, Intergraph reserves SCSI ID 3 for the entire disk array. The lower six RAID disk drives connect to channel...

  • Page 48: Powering On And Configuring The System

    Use the following table to label the drives: Disk Drive Label InterRAID-12 Slots ADP X CHN 1 ID 6 Slot 12 (Top) ADP X CHN 1 ID 5 Slot 11 ADP X CHN 1 ID 4 Slot 10 ADP X CHN 1 ID 2 Slot 9 ADP X CHN 1 ID 1 Slot 8...

  • Page 49: Important Software Notices

    Write-through caching reduces the risk of data loss in the event of a power failure. Write-back caching improves performance, but the drawback is potential data loss if power is interrupted. Intergraph recommends connection to a UPS to guard against data loss.

  • Page 50: Using Dac Interraid Utilities

    (DED) disk drives. Intergraph includes DACCF on a diskette delivered with the InterRAID cabinets. Other available utilities include the Disk Array Controller Administrator (DACADM) and the Disk Array Controller Monitor (DACMON).

  • Page 51: Dacadm And Dacmon Utilities

    8. Insert the diskette containing DAC960 NT driver into the floppy disk drive, and select OK. The Select OEM Option dialog displays with the DAC960 adapter highlighted. 9. Select OK. Setup displays the Select SCSI Adapter Option dialog. 10. Select Install. Setup displays a message that the driver is already present on the system. 11.

  • Page 52: Starting Dacadm

    The following Windows NT 3.5x and 4.00 drivers and utilities are provided in the DAC960 disk array driver and utilities: DAC960NT.SYS Main DAC960 driver file for Windows NT DACADM.EXE RAID controller board administration utility DACMON.EXE Utility for monitoring the RAID controller board To install DACADM and DACMON utilities: 1.

  • Page 53: Dacadm Options

    Before running DACADM under Windows NT 4.00, create an icon in the Program group. To create an icon, and start DACADM using Windows NT 4.00: 1. Select Start => Settings => Taskbar 2. Click Start Menu Programs. 3. Click Add. 4.
  • Page 54 Commands are executed only on the selected board. If a RAID controller board is not found, the message “Not Installed” appears in the box. Drive Information Use this option to provide information about the disk drives connected to the selected RAID controller board in a system.

  • Page 55: Dacmon Overview

    DACMON Overview The DACMON utility monitors the activities of the RAID controller board in the system and records the activities in the Event Viewer. DACMON will fail to run if the RAID controller board is not present. DACMON displays the status of the RAID controller board, the disk drives, and the progress of any rebuild operations.

  • Page 56: Startup Sequence

    Startup Sequence During power up, the RAID controller board’s BIOS displays a sign-on message with its version number and date. The sign-on message looks similar to the following: DAC960P(D) BIOS Version x.xx-- Thereafter, the BIOS tries to locate the RAID disk array controller. Once located, the BIOS determines if the controller firmware is operational.

  • Page 57: Overview Of Daccf

    Adapter cannot recover from mirror race! Some system drives are inconsistent! If the firmware fails to respond to the BIOS inquiry within two minutes, the following message displays: DAC960 not responding--no drives installed. The BIOS then inquires for the firmware version and other information, and displays the following message: DAC960 firmware version x.xx One or more of the following messages display if the firmware reports the error conditions:...

  • Page 58: Starting Daccf

    The following table defines the terms you will see while running DACCF and configuring drives. Disk drive ready for configuration CD-ROM drive Tape drive Unformatted drive Configured packs DRVS Number of drives in a pack SIZE Size of the packs (in megabytes) Drive online (part of pack) Failed drive Rebuilding...
  • Page 59 MYLEX Disk Array Controller-Configuration Utility Version X.XX X/XX/XX Inquiring the devices connected to the adapter Channel # X Target ID X Initializing tables, please wait... The DACCF Main Menu displays if there is only one board installed, as described in the “Main Menu”...

  • Page 60: Main Menu

    For DTP Server and TD-xx deskside systems, the following table identifies the scan order of the PCI slots containing the primary and secondary RAID controller boards (DAC960). DACCF DAC960 RAID Controller Selection Menu Board System PCI Slot Scan Order Slot 4 DAC960 #1 Primary Slot 3...

  • Page 61: 01. Automatic Configuration

    MYLEX Disk Array Controller-Configuration Utility Version X.XX X/XX/XX 2 Channel - 7 Target DAC960P #1 Firmware version x.xx Main Menu 01. Automatic Configuration 02. New Configuration 03. View/Update Configuration 04. Rebuild 05. Initialize System Drive 06. Consistency Check 07. Tools 08.
  • Page 62 2. Select YES in the confirmation window to proceed. Select NO to return to the Main Menu. After selecting YES, the RAID controller examines the total capacity of each drive connected to the controller. If all the drives are the same, this message displays: Do you want to have Write Caching enabled? 3.

  • Page 63: 02. New Configuration

    7. To partition the disk drive space, reboot the system into Windows NT and run Disk Administrator. 02. New Configuration Use the New Configuration option in the DACCF Main Menu to configure the drives in the disk array for the first time, or to establish a new configuration. This option overwrites the existing configuration with the new configuration.
  • Page 64 MYLEX Disk Array Controller-Configuration Utility Version X.XX X/XX/XX 2 Channel - 7 Target DAC960P #1 Firmware version x.xx Tgt Channel Number Pack Definition 1. Create Pack 2. Cancel Pack 3. Arrange Pack 4. Device Information DRVS SIZE (MB) The disk drive list to the left of the display contains the details of existing configured drives. RDY indicates the disk drive is ready for configuration.
  • Page 65 4. When you have included all of the desired disk drives for this pack, press to return to the Pack Definition menu. The drives in the pack are labeled online (ONL), and identified by the pack label and stripe order. For example, A-0 stands for pack A, drive 0;...
  • Page 66 MYLEX Disk Array Controller-Configuration Utility Version X.XX X/XX/XX 2 Channel - 7 Target DAC960P #1 Firmware version x.xx Tgt Channel Number Pack Definition 1. Create Pack 2. Cancel Pack 3. Arrange Pack 4. Device Information DRVS SIZE (MB) 4052 2026 4.
  • Page 67 Define System Drive Define System Drive of the New Configuration menu allows you to create one or more system drives, and change the write policy for the selected system drive. You can define a maximum of eight (8) system drives per DAC960 RAID controller. When you select Define System Drive, a display similar to the following appears.
  • Page 68 DAC960 System Drive Size Limit If your system has InterRAID disk arrays that use a DAC960P or DAC960PD RAID controller board with version 2.x (or previous) firmware, be aware of the following limitations: You cannot create a system (logical) drive larger than 32,768 MB. You can create a pack larger than 32,768 MB.
  • Page 69 The following table briefly describes the supported RAID levels. RAID Level Description Data is striped across several physical drives, yielding higher performance than is possible with individual drives. This level does not provide redundancy. Drives are paired and mirrored. All data is 100 percent duplicated on an equivalent drive.
  • Page 70 4. Select YES to create the system drive as defined. The system drive information displays in the Sys Drv column. Write-through caching reduces the risk of data loss in the event of a power failure. Write-back caching improves performance, but the drawback is potential data loss if power fails.

  • Page 71: 03. View/Update Configuration

    03. View/Update Configuration Use the View/Update Configuration option in the DACCF Main Menu to view, edit, or update an existing configuration, add more disk drives, or use existing standby drives as normal drives. You can change the write policy of any system disk drive at any time by selecting this option.
  • Page 72 MYLEX Disk Array Controller-Configuration Utility Version X.XX X/XX/XX 2 Channel - 7 Target DAC960P #1 Firmware version x.xx Tgt Channel Number Pack Definition 1. Create Pack 2. Cancel Pack 3. Arrange Pack 4. Device Information DRVS SIZE (MB) 3039 The disk drive list to the left of the display contains the details of existing configured drives. ONL indicates the disk drive is online (usable) and CDR represents an installed CD-ROM drive.

  • Page 73: 04. Rebuild

    Array Encl MGMT I/F option and other hardware parameters. Intergraph recommends that you use the automatic rebuild feature, rather than rebuild the replacement disks manually. Systems using a redundant RAID level without standby drives in place pose a risk should one of the online drives suddenly fail.

  • Page 74: 05. Initialize System Drive

    MYLEX Disk Array Controller-Configuration Utility Version X.XX X/XX/XX 2 Channel - 7 Target DAC960P #1 Firmware version x.xx Tgt Channel Number REBUILD Select a drive using cursor keys, hit <Enter> to Rebuild, <ESC> to Quit 2. Select the drive marked DED, and press .

  • Page 75: 06. Consistency Check

    Simultaneous initialization of two or more drives can be done. Using cursor keys, move the required System drive box and hit <Enter> to select. After selecting the required System drive(s), move to the ‘START’ box and hit <Enter> to proceed with the Initialization.

  • Page 76: 07. Tools

    NOTE Restoring consistency could mean loss of data in the blocks that were found inconsistent. 4. After restoring consistency, select another drive to check, or exit to the DACCF Main Menu. 07. Tools Use the Tools option in the DACCF Main Menu to perform many useful operations on the RAID system.
  • Page 77 Select View Write Back BBT for information about the bad blocks detected during write back operations. This information includes the location on the system drive where the disk error occurred, its block number, and the number of consecutive blocks where the disk errors occurred.
  • Page 78 4. Select YES. The following message displays: Do you really want to Format selected drives? 5. Select YES to start formatting. The following message displays: Formatting all the selected drives. Please wait... Once complete, the disk drives return to their original states, except for the drives labeled UNF (unformatted), which will be changed to RDY (ready).
  • Page 79 3. Press the cursor keys to highlight a drive, and then press . A confirmation ENTER message displays: Do you really want to KILL the drive? 4. Select YES. The drive state changes to DED. 5. After selecting all the drives to be killed, press Backup/Restore Conf Use the Backup/Restore Conf option in the Tools menu to save a new configuration to a diskette (back up), or to restore a configuration file that has become corrupted or lost.
  • Page 80 CAUTION The restored configuration file must match the hardware configuration. DACCF assumes the number of physical drives installed in the InterRAID cabinet is the same as the number of drives configured in the configuration file. 5. Select YES and then press .

  • Page 81: 08. Select Dac960

    6. To print a hardcopy, use the editor’s print command. 7. Remove the diskette from the floppy disk drive. 08. Select DAC960 When you have multiple RAID controller boards in the system, the Select DAC960 option in the DACCF Main Menu allows you to select the RAID controller that needs to be configured.
  • Page 82 The Array Enclosure Management I/F option should be set to Enabled each time you create a new configuration. This option allows the Windows NT Server operating system to recognize a failed drive and to begin the automatic on-line rebuild of the drive. Intergraph recommends the automatic rebuild capability for every InterRAID configuration.
  • Page 83 Physical Parameters When you select Physical Parameters, a menu similar to the following displays. The three physical parameters that can be set are Default rebuild rate, the Stripe size (K bytes), and Controller read ahead. Use the arrow keys to select a parameter, and press to toggle ENTER the settings.
  • Page 84 SCSI Xfr Parameters Data transfer rate 10 MHz Command tagging Enabled SCSI data bus width 16 Bit NOTE The default SCSI Xfr parameters are: Data transfer rate = 10 MHz, Command tagging = Enabled, SCSI data bus width = 16 Bit. The Data transfer rate option sets the default SCSI negotiation rate for the selected SCSI channel.

  • Page 85: 10. Diagnostics

    The last option in the DACCF Main Menu is for performing system level diagnostics on the selected RAID controller. Diagnostics are reserved for Intergraph field engineer use only. An engineer can access the diagnostics with an uppercase Y as supported under DACCF version 3.10.

  • Page 86: Nvram/Flash Configuration Mismatch Errors

    NVRAM/Flash Configuration Mismatch Errors If detecting a mismatch between the configurations saved in the NVRAM and flash EEPROM, the following message displays: The NVRAM and FLASH configurations do not match. Proceeding further will allow selection between NVRAM and FLASH configurations. The cause of this error is probably due to a corrupted NVRAM.

  • Page 87: Common Daccf Procedures

    3. Wait at least 30 seconds; then, restart the InterRAID cabinet and restart the system with the DACCF diskette in the floppy disk drive. 4. At the command prompt, key in daccf. 5. When the DACCF Main Menu displays, select the Tools option. 6.

  • Page 88: Changing The Write Policy

    8. Toggle the Array Encl MGMT I/F option to Enable. 9. Press twice to save the automatic rebuild setting. 10. Select Yes to save the configuration. 11. Exit DACCF, remove the diskette, and then restart the system. Changing the Write Policy Follow these steps to change the write policy of system drives.

  • Page 89: Recovering Unusable (Ded) Disk Drives

    5. At the command prompt, key in daccf. 6. If you have multiple RAID controller boards installed in the system, select the controller to be configured. 7. From the DACCF Main Menu, select the Automatic Configuration option (which defaults to RAID Level 5). 8.
  • Page 90 To recover a DED disk drive: 1. Ensure the boot sequence for the system is A:, C:. 2. Insert the DACCF diskette into the floppy disk drive. 3. Restart the system. 4. At the command prompt, key in daccf. 5. If you have multiple RAID controller boards installed in the system, select the controller to be configured.
  • Page 91 14. Press to exit the Tools menu. 15. Press to exit DACCF, and then select YES at the confirmation window. 16. Remove the DACCF diskette and restart the system.

  • Page 92: Using Megaraid Bios

    Configuration Utility to configure disk arrays and logical drives. Since the utility resides in the MegaRAID BIOS, its operation is independent of the operating system on your system base unit. Intergraph includes MegaRAID BIOS on a diskette delivered with the InterRAID cabinets.
  • Page 93 3. From the Options menu, select Add/Remove SCSI Adapters. 4. Select the MegaRAID driver; then, select Remove. 5. Select OK at the Warning dialog; then, select OK again. 6. At the Warning dialog, select Add; then, select OK. Windows NT Setup displays a list of adapters.

  • Page 94: Startup Sequence

    Startup Sequence When the system boots, press when the following appears: CTRL MEGARAID CONTROLLER BIOS Version x.xx Aug 1, 1996 Host Adapter-1 Firmware Version x.xx DRAM Size 8 MB 0 Logical Drives found on the Host Adapter 0 Logical Drives handled by BIOS Press <Ctrl><M>...

  • Page 95: Exiting Megaraid Bios Configuration Utility

    Exiting MegaRAID BIOS Configuration Utility To exit the MegaRAID BIOS configuration utility, press while the Management menu is displayed. Choose Yes at the prompt. You must then reboot the system. The MegaRAID BIOS message displays again. Press when the BIOS Configuration Utility prompt displays.

  • Page 96: Configure Menu

    Configure Menu Choose the Configure option from the ManagementSetup main menu to select a method for configuring arrays and logical drives. Option Description Easy Select this option to perform a basic logical drive configuration where Configuration every physical array you define is automatically associated with exactly one logical drive.
  • Page 97 Under Objects/Adapter/Chip Set Type, ensure Others is selected. Under Objects/Adapter/Alarm Control, ensure Disable is selected. Under Objects/Adapter/Spinup Timings/Spinup Parameters, set to two drives every six seconds. Under Objects/Adapter/Ultra SCSI, set to Disabled. Adapter If your system has more than one MegaRAID controller, choose the Adapter option from the Objects menu to select a MegaRAID controller and to modify the parameters.
  • Page 98 Option Description Rebuild Rate Choose this option to change the rebuild rate for the controller. You can also display the firmware version number. Alarm Control Choose this option to enable, disable, or silence the onboard alarm tone generator. Default is disable. Ultra SCSI Choose this option to enable or disable Ultra SCSI.
  • Page 99 The following table defines some terms you will see while configuring drives and running the MegaRAID BIOS configuration utility. READY Disk drive ready for configuration ONLINE Disk drive ready for use REBUILD Disk drive to be replaced OFFLINE Unformatted drive PACK Configured pack DRIVES...

  • Page 100: Format Menu

    Option Description Synchronous Choose this option to enable or disable synchronous negotiation for the Negotiation selected physical device. The default is Enabled. SCSI-2 Choose this option to set the number of queue tags per command to 2, 3, Command or 4, or to disable command tagging. The default setting is 4 queue tags. Tagging SCSI Channel Choose the SCSI Channel option from the Objects menu to select a SCSI channel on the...

  • Page 101: Rebuild Menu

    Since most SCSI disk drives are low-level formatted at the factory, this step is usually not necessary. You must format a disk only if one of the following applies: The disk drive was not low-level formatted at the factory There are an excessive number of media errors detected on the disk drive You do not need to use the Format option to erase existing information on your SCSI disks, such as a DOS partition.

  • Page 102: Select Adapter Menu

    When the consistency check is finished, press any key to clear the progress display and press to return to the main menu. Select Adapter Menu This menu item displays only if more than one MegaRAID controller is installed in the system.

  • Page 103: Choosing The Configuration Method

    6. Initialize the new logical drives. Choosing the Configuration Method Easy Configuration In Easy Configuration, each physical array you create is associated with exactly one logical drive, and you can modify the following parameters: RAID level Stripe size Cache write policy Read policy I/O policy If there are already logical drives configured when you select Easy Configuration, their...

  • Page 104: Designating Drives As Hot Spares

    Designating Drives as Hot Spares Hot spares are physical drives that are powered up with the RAID drives, and usually stay in a standby state. If a disk drive used in a RAID logical drive fails, a hot spare will automatically take its place and the data on the failed drive is reconstructed on the hot spare.

  • Page 105: Using Easy Configuration

    Press the arrow keys to select Make HotSpare and press . The indicator for the ENTER selected drive changes to HOTSP. Using Easy Configuration In Easy Configuration, each array is associated with exactly one logical drive. Follow the steps below to create arrays using Easy Configuration. You can define a maximum of eight (8) logical drives per MegaRAID controller.
  • Page 106 The number of physical drives in a specific array determines the RAID levels that can be implemented with the array. RAID 0 requires one or more physical drives per array. RAID 1 requires two to eight physical drives per array. RAID 3 requires at least three physical drives per array.
  • Page 107 The Advanced menu options are as follows: Option Description Stripe Size This option sets the stripe size from 2 KB to 128 KB. Write Policy This option sets the caching method to write-back or write-through. In Write-back caching, the controller sends a data transfer completion signal to the host when the controller cache has received all the data in a transaction.

  • Page 108: Using New Configuration

    9. Repeat steps 3 through 8 to configure another array and logical drive. MegaRAID supports up to eight logical drives per controller. If you are finished configuring logical drives, press to exit Easy Configuration. A list of the currently configured logical drives displays: After you respond to the Save prompt, you will return to the Configure menu.
  • Page 109 Hot key information appears at the bottom of the screen. The hot key functions are as follows: Display the manufacturer data and MegaRAID error count for the highlighted drive. Display the logical drives that have been configured. Designate the highlighted drive as a hot spare . Display the logical drive configuration screen.
  • Page 110 The window at the top of the screen shows the logical drive that is currently being configured as well as any existing logical drives. The column headings are as follows: The logical drive number RAID The RAID level Size The logical drive size #Stripes The number of stripes (physical drives) in the associated physical array StrpSz...
  • Page 111 The spanning options are: Configuring RAID 10, RAID 30, or RAID 50 Logical Drives. Configure RAID 10 by spanning two to eight contiguous RAID 1 logical drives. The RAID 1 logical drives must have the same stripe size. For example, you can use the span option to configure up to four pairs of RAID 1 drives.

  • Page 112: Using View/Add Configuration

    Using View/Add Configuration View/Add Configuration allows you to associate logical drives with partial and/or multiple physical arrays (this is called spanning of arrays). The existing configuration is left intact, so you can also use View/Add Configuration simply to look at the current configuration. To use view/add configuration: 1.
  • Page 113 The number of physical drives in a specific array determines the RAID levels that can be implemented with the array. RAID 0 requires one or more physical drives per array. RAID 1 requires two to eight physical drives per array. RAID 3 requires at least three physical drives per array.
  • Page 114 7. Set the spanning mode for the current logical drive. Highlight Span from the bottom window of the logica drive configuration screen and press . The choices are: ENTER CanSpan Array spanning is enabled for the current logical drive. The logical drive can occupy space in more than one array.

  • Page 115: Initializing Logical Drives

    11. When you finish defining the current logical drive, highlight Accept from the bottom window of the logical drive configuration screen, and press . If there is space ENTER remaining in the arrays, the next logical drive ready to be configured displays. 12.

  • Page 116: Formatting Physical Drives

    To use individual initialization: 1. Choose the Objects option from the Management menu. Choose the Logical Drive option from the Objects menu. The following displays. 2. Select the logical drive to be initialized. The following menu displays: 3. Choose the Initialize option from the action menu. The progress of the initialization displays as a bar graph on the screen.
  • Page 117 To use batch formatting: 1. Choose Format from the Management menu. A device selection window displays as shown below, showing the devices connected to the current controller: 2. Press the arrow keys to highlight all drives. Press the spacebar to select the highlighted physical drive for formatting.

  • Page 118: Rebuilding Failed Disk Drives

    2. Press the arrow keys to highlight the physical drive to be formatted and press ENTER The following action menu displays: 3. Choose the Format option from the action menu and respond to the confirmation prompt. Formatting can take some time, depending on the drive capacity. 4.
  • Page 119 2. Press the arrow keys to highlight the physical drive to be rebuilt and press . The ENTER following action menu displays: 3. Choose the Rebuild option from the action menu and respond to the confirmation prompt. Rebuilding can take some time, depending on the drive capacity. 4.

  • Page 120: Using A Pre-Loaded Scsi Drive "As-Is

    Using a Pre-loaded SCSI Drive “As-is” CAUTION To use a pre-loaded drive in the manner described here, you must make it the first logical drive defined (for example: LD1) on the controller to which it is connected. You may have a SCSI disk drive that is already loaded with software. The drive may be a boot disk containing an operating system.

  • Page 122: Using Power Console

    If you need to reload Power Console, follow the applicable instructions in Chapter 6. Installing the MegaRAID Power Console Utility Intergraph installs the MegaRAID Power Console utility on your system before shipment. However, if you need to re-install it, the MegaRAID Power Console utility is easy to install and use in the Windows NT environment.

  • Page 123: Overview

    6. Remove the diskette containing the MegaRAID Power Console utility from the disk drive. 7. Reboot the system. 8. To run Power Console, select the Power Console icon. Overview Power Console allows you to control and monitor the status of hard disk drives and RAID enclosure and to store information in the Windows NT Event Viewer.

  • Page 124: Power Console Icons

    Power Console Icons Power Console includes several toolbox buttons at the right side of the main dialog. These buttons provide easy access to Power Console features. You can remove the toolbox from the dialog by clicking on Hide Toolbox in the Adapter menu. The buttons are described below. Configuration Icons Display configuration;...
  • Page 125 Print; click on this icon to make a hardcopy of the current configuration. Auto configuration; click on this icon to allow MegaRAID to configure the RAID subsystem. Custom configuration; click on this icon to allow you to configure the RAID subsystem. Reset;...

  • Page 126: Drag And Drop Icons

    Rescan; when you click on this icon, the currently selected MegaRAID controller rescans its SCSI channels to make sure that all drive configuration information is current. Enclosure management; click on this icon to display the enclosure management dialog. Enclosure management displays the drive temperature, drive fan status, and other information.

  • Page 127: Logical Drive And Channel Icons

    - Failed physical drive: drive degraded to Optimal logical drive - Online physical drive: removing a physical drive from logical drive. In the above cases, reconstruction of the logical drive starts after the drop operation is finished. For more details, refer to Help => Adapter Menu => Toolbox, and click on the Trash icon.

  • Page 128: Defining Power Console Menu Options

    The channel indicator light on each channel icon indicates the status of that channel. The Deactivate option lasts for 60 seconds when invoked. Defining Power Console Menu Options The Power Console menu options are as follows: Option Description Adapter Choose this option for the MegaRAID controller-related functions. You can configure logical drives, enable the speaker, toggle object identification, invoke the performance monitor, and display the toolbar by selecting an item from this menu.

  • Page 129: Adapter Menu

    In InterServe 615, 625, 635, 645 systems, the BIOS and Power Console assign controller numbers as follows: BIOS lists the controllers starting from PCI slot 3 to PCI slot 1, and then PCI slot 6 (or 5), and counts them incrementally from 0 to 3. Power Console counts the controllers incrementally from 0 to 3, but lists the controllers starting from PCI slot 6 (or 5), and then from PCI slot 1 to PCI slot 3.
  • Page 130 The following table defines some terms you will see while configuring drives and running Power Console. READY Disk drive ready for configuration OPTIMAL Disk drive ready for use ONLINE Disk drive ready for use REBUILD Disk drive to be replaced OFFLINE Unformatted drive PACK...

  • Page 131: Configuration

    Option Description Object Select this option to turn the Object Identification feature on if it is Identification not already on. Select this option to turn it off if it is on. Object On/Off identification is a Power Console feature that identifies all objects displayed on the dialog.
  • Page 132 Option Description Custom Select this option to delete existing configuration information and Configuration configure new arrays and logical drives into different groups. You can perform logical drive configuration functions and associate logical drives with multiple or partial arrays. You must first create an array. Arrays are groups of physical drives that define the stripe width common to one RAID type.

  • Page 133: Flush Cache

    Configure RAID 10 by spanning two to four pairs of contiguous RAID 1 logical drives. The RAID 1 logical drives must have the same stripe size. Configure RAID 30 by spanning two contiguous RAID 3 logical drives. The RAID 3 logical drives must have the same stripe size.

  • Page 134: Properties

    NOTE Click on any device displayed on the enclosure management dialog to display device information, as shown: Properties Select this option to display the adapter properties. A dialog similar to the following appears:...

  • Page 135: Hide/Show Toolbox

    Hide/Show Toolbox The RAID Configuration toobox can be removed from the dialog by clicking on Hide Toolbox in the Adapter menu. The option will then change to Display toolbox. Performance Monitor Click the left mouse button on a logical drive icon and select Performance Monitor to display a graphic representation of drive performance.

  • Page 136: Enable/Disable Sound

    Enable/Disable Sound Choose this option to enable or disable the onboard tone generator. To silence a sounding alarm, choose Disable Sound and Disable Alarm Control. Enable/Disable Alarm Control Choose this option to enable or disable the audible alarms and warnings. Exit Choose this item to leave Power Console.

  • Page 137: Abort Rebuild

    A RAID 1, 3, or 5 configuration has built-in redundancy. If a drive in a RAID group fails, the RAID subsystem continues to work but no additional redundancy is provided. Another drive failure will bring the system down. The failed drive can be replaced and added into the RAID system by rebuilding the drive.

  • Page 138: Logical Drv Menu

    Logical Drv Menu The Power Console Logical Drv (Drive) menu is as follows: Create Choose the Create option to create arrays. A dialog such as the following appears. You can select the RAID type, stripe size, write policy, read policy, and cache policy.

  • Page 139: Initialize

    Select the array to be created by clicking on ARR1 - ARR8 at the top of the dialog. Select the drives to be included in the array by clicking on the device icons displayed in the middle of the dialog. You can include SCSI devices from more than one channel in the new array. You can define a maximum of eight (8) logical drives per MegaRAID controller.

  • Page 140: Check Parity

    You can also initialize a drive by dragging the drive icon to the Format icon and dropping it. Check Parity Choose Check Parity from the Logical Drv menu to make sure that parity is correct for the selected drives. A dialog such as the following appears. Click on the drive to be checked (D1 - D8) and click on the Go button.

  • Page 141: Properties

    Properties Choose Properties from the Logical Drv menu to display the logical drive properties of the selected logical drive. A dialog such as the following appears. Each logical drive can be displayed by selecting the Previous or Next buttons. Logical Drive Menu When you click the right mouse button on a logical drive in the Power Console menu, you can change or expand any logical drive without halting system operations.
  • Page 142 NOTE The trash can icon in the lower right corner of the MegaRAID Power Console dialog is available for you to use. To delete a physical drive from a RAID logical drive, just drag and drop a physical drive over it. Other options also appear in the Advanced Menu pulldown after you select a logical drive and click the right mouse button.

  • Page 143: Change Policy

    Change Policy You can select Change Policy from the Logical Drive pulldown menu to change the write, read, and cache policies of a selected array. To change a RAID policy: 1. From MegaRAID Power Console, place the cursor on the logical drive for which you want to change the RAID policy, and click the right mouse button.
  • Page 144 You can change RAID levels without degrading the RAID subsystem. For example, you can convert a degraded RAID 1, RAID 3, or RAID 5 logical drive to an Optimal RAID 0 logical drive. After you select the degraded logical drive to be optimized, the software reconstructs the RAID subsystem without halting the system.
  • Page 145 4. Select Apply. The Reconstructing dialog displays as follows: 5. Click on the Info button of the Reconstructing dialog to display detailed information about the reconstruction operation being performed, as shown:...
  • Page 146 6. Review the changes that have been made and select OK when finished. Adding a Drive Add Drive from the Advanced Menu of the Logical Drive pulldown menu allows you to add a physical drive to a configured logical drive. The logical drive state must be Optimal.
  • Page 147 3. Select the physical drive(s) to be added using the left button (a check appears on the drive). Select Apply. The Reconstructing dialog displays as follows: 4. Click on the Info button of the Reconstructing dialog to display detailed information, as shown below, about the reconstruction operation being performed:...

  • Page 148: Removing A Drive

    5. Review the changes that have been made and select OK when finished. 6. Reboot the system to use the added capacity unless Flexible (Dynamic) Sizing is enabled. Removing a Drive You can change the configuration of any logical drive by removing a physical drive from the configured logical drive.

  • Page 149: Designating Drives As Hot Spares

    2. Select the RAID level that will allow the new RAID configuration to become Optimal. Select Apply and the Reconstructing dialog display. Designating Drives as Hot Spares Hot spares are physical drives that are powered up along with the RAID drives and usually are placed in a standby state.

  • Page 150: Saving Configuration To Floppy

    To secure the Power Console utility: 1. Log in as Administrator. 2. Run File Manager. 3. Select the path containing the Power Console executable. 4. Pull down the Security menu in File Manager and choose Permissions. 5. When the permission dialog box appears, assign the List permission to all Groups except Administrator, Backup Operators, System, and Creator Owner.
  • Page 151 5. Choose another option, or press 5 to exit. To restore a configuration: 1. At the MegaRAID PCI Adapter Configuration Manager menu, key in 2 to restore a configuration from a file. 2. Key in the filename for the configuration file. Do not include directory paths. If you used a .MEG extension as part of the filename, include the extension.

  • Page 152: Servicing The Disk Array

    Cooling fans Cabinets NOTE Always purchase replacement parts from Intergraph to maintain proper specifications. If replacing the RAID controller board in your system, refer to the system documentation. Precautions Static electricity can damage the components inside the system base unit. To minimize the possibility, observe the following precautions when working with the internal components of the system.
  • Page 153 If replacing a RAID controller board in a desktop system, be sure to install the board in the same slot that was used for the old board. Refer to your system documentation to open the base unit and replace an option board. Use this section to replace a failed RAID controller board (DAC960P, DAC960PD, or MegaRAID) located in the the server base unit.

  • Page 154: Replacing Disk Drives

    Only the InterRAID-8 and InterRAID-12 have hot-swap power supplies. Do not attempt to replace a power supply in an InterRAID-6. If a power supply fails in the InterRAID-6, return the unit to Intergraph. You do not need to power off the InterRAID-8 or InterRAID- 12 cabinet to replace a power supply.

  • Page 155: Replacing Cooling Fans

    Only the InterRAID-8 and InterRAID-12 have hot-swap cooling fans. Do not attempt to replace the cooling fans in an InterRAID-6. If a cooling fan fails in the InterRAID-6, return the unit to Intergraph. You do not have to power off the InterRAID-8 or InterRAID-12 to replace the cooling fans To replace an InterRAID-8 or InterRAID-12 cooling fan: 1.

  • Page 156: Replacing Cabinets

    Replacing Cabinets Follow these instructions to replace the InterRAID-6, InterRAID-8, or InterRAID-12 cabinet. To replace a cabinet: 1. Remove the new cabinet from the shipping carton and inspect the shipment. Save the packaging material. 2. Open the door of the old cabinet. Note the position of each disk drive in the old cabinet. The drives are labeled with an ID number.

  • Page 158: Identifying The Raid Controller Board

    The RAID controller board is a high-performance PCI SCSI controller that manages the disk array of the host server. Three versions of the RAID controller board are used in conjunction with Intergraph’s host servers: DAC960P, DAC960PD, and MegaRAID. DAC960P Controller DAC960P has two independent RAID SCSI bus channels (0 and 1), each using a separate 53C720 SCSI controller.

  • Page 159: Dac960Pd Controller

    DAC960PD Controller DAC960PD has three independent RAID SCSI bus channels (0, 1, and 2), each using a separate 53C720 SCSI controller. This allows the system to read or write data on several disk drives simultaneously. The DAC960PD RAID controller board is shown in the following figure.

  • Page 160: Megaraid Controller

    MegaRAID Controller MegaRAID has three independent RAID SCSI bus channels (0, 1, and 2), each using a separate 53C770 SCSI controller. This allows the system to read or write data on several disk drives simultaneously. The MegaRAID RAID controller board is shown in the following figure.

  • Page 161: Pci Bus Interface

    PCI Bus Interface The RAID controller interfaces to its host system through the PCI bus. The PCI bus allows 32-bit high speed transfers and supports a burst data rate of over 130 MB per second. AT Compatible BIOS The RAID controller has an Advanced Technology (AT) compatible BIOS containing a set of special programs which receive control of the system when it is first powered on.

  • Page 162: Cache Memory

    Cache Memory The cache memory subsystem on the RAID controller board has a total of 8 MB of DRAM. PCI Connector The PCI connector inserts into the PCI slot of the server system board. This connector carries all the PCI bus signals between the RAID controller board and the system board. Flash EEPROM (MegaRAID Only) Flash EEPROM stores the RAID firmware programs and the RAID configuration data.
