If replacing Z10 in a dual-screen configuration, remove the clock sync cable from
between the Z10 boards or the Z10-T board sets. Refer to the following figures.

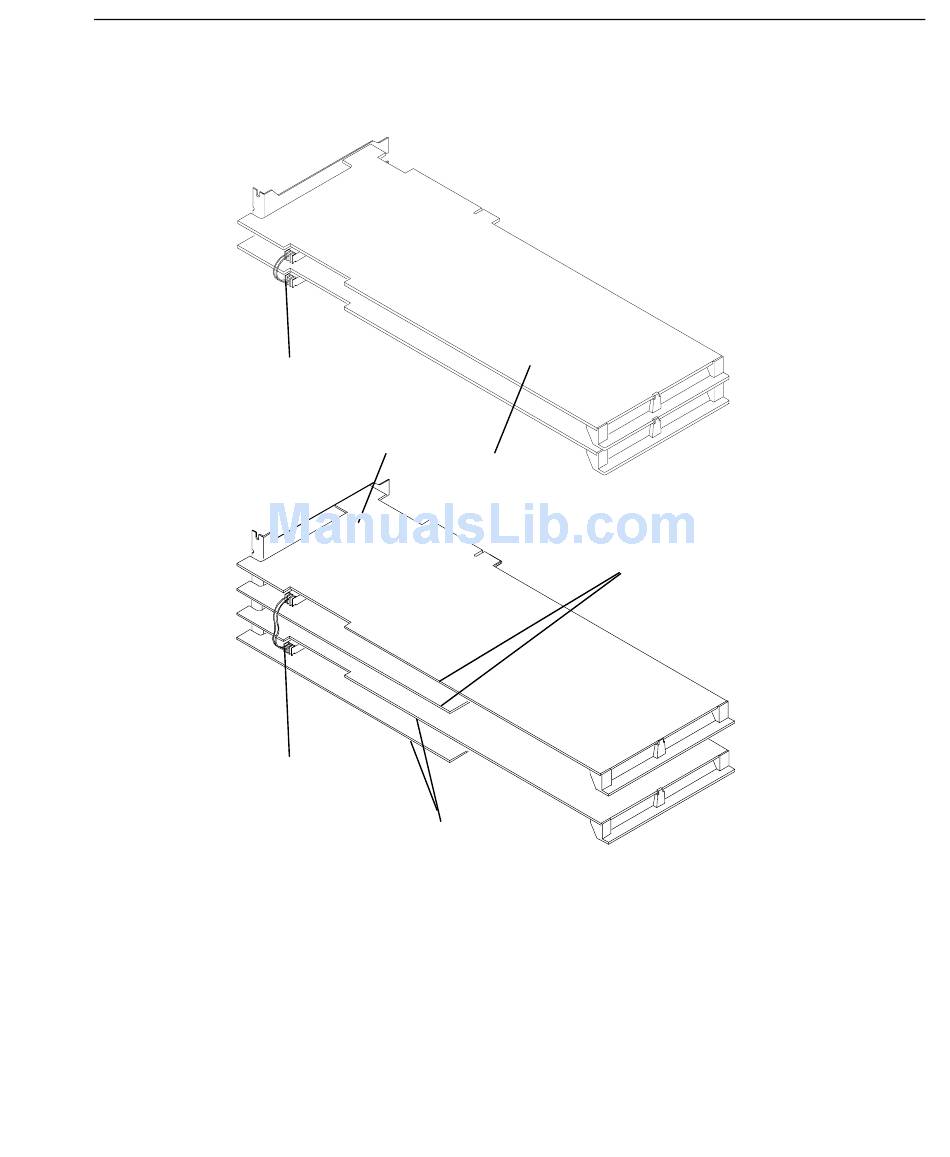

Clock Sync
Cable
Clock Sync
Cable
5.
Use a quarter-inch nutdriver to remove the screws that secure the Z10 board or Z10-T
board set to the system chassis. Retain the screws.
6.
Remove the Z10 board or Z10-T board set from the system.
7.
If replacing a single Z10 board with a Z10-T board set in a desktop system, use a quarter-
inch nutdriver to remove the blanking plate from PCI slot 3. Retain the screw.
If replacing two Z10 boards with Z10-T board sets in a deskside system, use a quarter-
inch nutdriver to remove the blanking plates from PCI slots 4 and 5. Retain the screws.
Z10 Boards
Secondary
Z10-T
Board Set
Primary
Z10-T
Board Set
11
