RAX Systems
System Setup
December 1998
DHA034700

Advertisement

Table of Contents
loading

Related Manuals for Intergraph StudioZ RenderRAX III

Summary of Contents for Intergraph StudioZ RenderRAX III

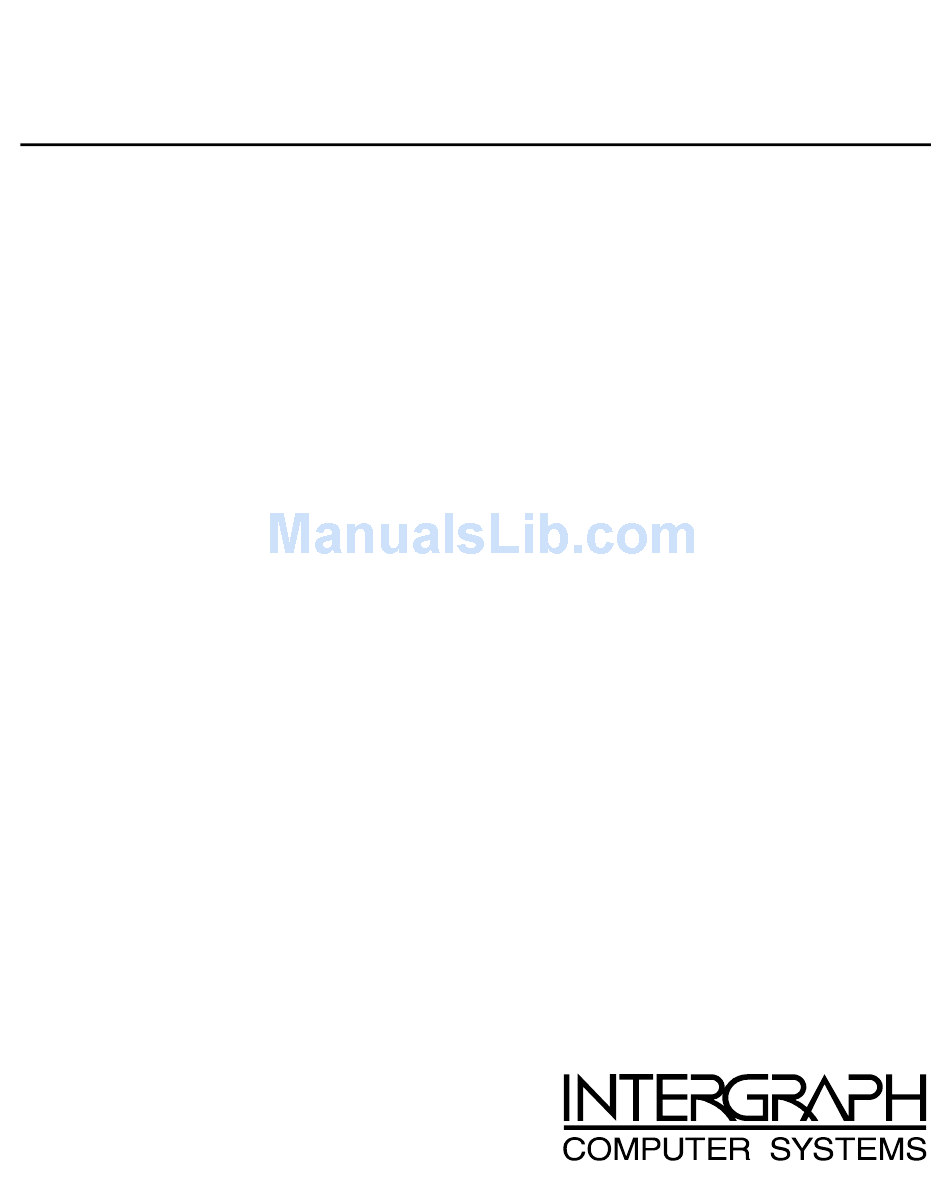

  • Page 1 RAX Systems System Setup December 1998 DHA034700...
  • Page 2 Computer Systems shall not be liable for incidental or consequential damages resulting from the furnishing or use of this document. All warranties given by Intergraph Computer Systems about equipment or software are set forth in your purchase contract. Nothing stated in, or implied by, this document or its contents shall be considered or deemed a modification or amendment of such warranties.

  • Page 3: Table Of Contents

    Ergonomic Information ......................viii Customer Support........................viii Hardware and Software Support Services ..............viii World Wide Web ....................... ix Intergraph Bulletin Board Service................ix FAXLink ........................ix Telephone........................x More Support Options....................x 1 Setting Up the Hardware ..................... 1 Unpacking the System.......................
  • Page 4 Configuring a Zip or Jaz Drive....................26 Configuring a Tape Drive......................27 Configuring JBOD Disk Drives....................27 Configuring RAID Disk Drives....................27 Changing Drive Letters ......................29 Changing Virtual Memory Settings..................29 Configuring the Symbios SCSI Adapter.................. 30 Creating an Emergency Repair Disk ..................31 Getting Operating System Updates..................
  • Page 5 Network........................... 66 Peripheral Drive Errors ......................67 Miscellaneous Hardware ......................67 7 Reinstalling System Software .................... 69 Before You Begin........................70 System Software Products....................... 71 Installing Windows NT Workstation 4.0................. 72 Enabling Bus Mastering for IDE/ATAPI Devices ............ 73 Updating the Operating System....................74 8 Using System Resources.....................

  • Page 7: Preface

    Preface This System Setup document describes setting up, configuring, and reinstalling system software on your Intergraph Computer Systems rack-mount RAX system. This document supports the following RAX systems: StudioZ RenderRAX III ViZ RAX About This Document This System Setup document is organized as follows: Chapter 1, “Setting Up the Hardware,”...

  • Page 8: Operating System Information

    Services include warranty upgrades, repair depot service, on-site hardware maintenance, system administration, and network consulting. Hardware purchased from Intergraph Computer Systems includes a factory warranty ranging from 30 days to three years. A detailed warranty description is available on the World Wide Web; see the Support...

  • Page 9: World Wide Web

    On these pages, you can get news and product information, technical support information, software updates and fixes, and more. Intergraph Bulletin Board Service On the Intergraph Bulletin Board Service (IBBS), you can get technical support information, software updates and fixes, and more. NOTE Most of the system software for your RAX system can be found in the TDZ 2000 GL2 Series A area of the IBBS.

  • Page 10: Telephone

    In the United States, call 1-800-633-7248 between the hours of 7:00 a.m. and 7:00 p.m. Central Time, Monday through Friday (except holidays). Outside the United States, contact your local Intergraph Computer Systems subsidiary or distributor. Have the following information available when you call: Your service number, which identifies your site to Intergraph Computer Systems.

  • Page 11: Setting Up The Hardware

    Setting Up the Hardware This chapter provides instructions for setting up and installing the rack-mount base unit for your RAX system into a standard equipment rack. Refer to the documentation delivered with the rack for instructions to unpack it and set it up. Unpacking the System......................

  • Page 12: Unpacking The System

    Windows NT operating system software (CD-ROM and diskettes) and documentation. Intergraph system software for Windows NT (diskettes). If you purchased a monitor from Intergraph Computer Systems, its carton contains the following: Monitor and power cord. Video cable.

  • Page 13: Observing Safety Precautions

    Observing Safety Precautions WARNING Follow all instructions explicitly to avoid personal injury and equipment damage. Before installing the base unit into a rack, prevent the rack from moving by engaging the stabilizers. If the rack is not equipped with stabilizers, refer to the documentation delivered with the rack for stabilizing instructions.

  • Page 14: Understanding Vertical Units

    Maintain the following operating environment. Temperature range: 50 F to 77 F (10 C to 25 C). Optimum: 70 F (21 C) Humidity range: 20 % to 80 % non-condensing. Optimum: 50 % Understanding Vertical Units You can identify a vertical unit (U) mark as a round hole along the edge of the side rails. Note that it is smaller than the mounting holes used to secure equipment in a rack.
  • Page 15 Install the handle brackets on the base unit, using the screws provided. Base Unit Rail Guide Handle Brackets If the rail guides are already attached to the base unit, skip to step 4. If the rail guides are not attached to the base unit, do the following: Remove the rail guides from the mounting rails.
  • Page 16 Use the button-head screws and bolts provided to loosely secure the rail brackets to the rack rails. See the following figure. The rail brackets have the rail teeth needed to secure the rack rails to the back of the rack. Install the button-head screws and bolts loosely so you can adjust the back rail teeth positions as needed in step 8.
  • Page 17 Mounting Holes Bar Nut Flat-Head Screws Teeth Rack Rail Slide tinnerman nuts over the third and thirteenth mounting holes starting from the bottom of the 5 Us. The tinnerman nuts will be used when you secure the handle brackets on the front of the base unit to the front of the rack.
  • Page 18 Bar Nut Mounting Holes Button-Head Teeth Screws Rack Rail Tighten the screws on the rail brackets on each rack rail in the back of the rack. 10. Extend the rails from the rack until they lock. 11. With a person on each side, lift the base unit and align the rack rails with the rail guides mounted on the side of the base unit.

  • Page 19: Connecting The Cables

    Connecting the Cables All cable ports on the base unit and other Intergraph Computer Systems equipment are keyed or molded and labeled to ensure proper cable attachment. If a cable is not attaching easily, ensure that you are aligning the cable connector correctly with the port.
  • Page 20 Connect the cable from this To this port Connector Mouse or mouse cable from Mouse port concentrator Keyboard (optional) or keyboard Keyboard port cable from concentrator Universal Serial Bus device Universal Serial Bus port Modem, printer, or other serial Serial (COM) ports 1 and 2 device Printer or other parallel device Parallel (LPT) port...

  • Page 21: Installed Expansion Cards

    Connect the system power cord to the AC receptacle on the base unit. If using an AC distribution box or UPS, connect its power cord to a grounded, three- prong AC power outlet. CAUTION Ensure the circuit breaker on the AC distribution box is set to Off before connecting the power cord.

  • Page 22: Installing Disk Drives In The Disk Drive Bay

    Installing Disk Drives in the Disk Drive Bay The following figure shows the disk drive bay door and door lock on the front of the system. Door Lock Disk Drive Bay Door The disk drive bay may contain up to four JBOD (for “just a bunch of disks”) or RAID SCA SCSI disk drives.
  • Page 23 The following figure shows the system with the disk drive bay door open. Disk Drive Slots Disk Drive Bay Door (open) To install JBOD or RAID disk drives: Open the disk drive bay door on the front of the base unit. The key is in the parts box. Remove the disk drive(s) from the disk drive carton and place them on an antistatic surface.

  • Page 24: Connecting An External Scsi Device

    The following figure shows three disk drives installed in the disk drive bay. Latching Clips Drive Rail Drive Connector Drive 0 Connecting an External SCSI Device You can connect external SCSI peripheral devices to the external port on the dual-channel LVDS SCSI adapter card.

  • Page 25: Checking The System

    Checking the System Before starting the system, review the following items: All hardware is properly and securely installed in the rack. The cables are properly attached to the base unit, and there is enough slack cable to allow the base unit to extend from the rack. The cables that run along the sides or top of the rack have clips or ties to secure them in place.

  • Page 26: What's Next

    You can do any of the following to prepare your system for use: If you want to get going with Intergraph’s default setup, go to Chapter 2, “Setting Up the Software,” to start the system and go through Windows NT Setup. If you start the system, and then turn it off before completing the instructions in Chapter 2, you will have to reinstall the operating system and associated system software.

  • Page 27: Setting Up The Software

    Setting Up the Software Follow the instructions in this chapter to set up the operating system and associated system software for your RAX system. Preparing for System Software Setup................18 Starting Operating System Setup..................19 Finishing System Software Setup..................21 Creating an Emergency Repair Disk ..............

  • Page 28: Preparing For System Software Setup

    The latest certified Windows NT Service Pack software Quick-Fix Engineering (QFE) software, if needed InterSite software Intergraph Computer Systems installs the operating system through Phase I of the operating system Setup process. You must follow the operating system Setup process to prepare Microsoft Windows NT for use.

  • Page 29: Starting Operating System Setup

    If the system is connected to a network, get and record the following information for your system from your network administrator: Computer name: Workgroup name (if the system will be part of a workgroup): Domain name (if the system will be part of a Windows NT domain): If the system is connected to a network that uses the Transmission Control Protocol/Internet Protocol (TCP/IP), get and record the appropriate TCP/IP information for your system from...
  • Page 30 Power Button The first time you start the system, it boots to a Microsoft End User License Agreement (EULA). After reading and accepting the terms of the agreement, follow the instructions to continue operating system Setup. Take the default settings provided by Setup, except as noted in the following text.

  • Page 31: Finishing System Software Setup

    You can use InterSite Welcome to get the latest driver and other system software from the World Wide Web, and to learn about Intergraph Computer Systems customer support. You should take advantage of the tools provided by InterSite Welcome to ensure that your system is fully ready for use.

  • Page 32: Creating System Software Backup Diskettes

    CD-ROM or on backup diskettes delivered with expansion cards. See Version Manager Help for information on creating system software backup diskettes. Visit the Intergraph Computer Systems site on the World Wide Web and vendor bulletin boards for new and updated drivers.

  • Page 33: Configuring The System

    Configuring the System Follow the instructions in this chapter to configure your RAX system for use. This chapter covers items required for basic operation. Configuring the Video Display....................24 Resetting the Video Display Resolution..............24 Changing the Default Video Display Driver ............. 24 Correcting Video Display Problems................

  • Page 34: Configuring The Video Display

    Changing the Default Video Display Driver After configuring the video display and restarting the system, you should configure the system to use the Intergraph video display driver by default. To change the default video display driver: Open System in the Windows NT Control Panel. The System dialog displays.

  • Page 35: Correcting Video Display Problems

    A multi-sync monitor is selected, but a graphics display device with different video timings (such as an Intergraph InterVue monitor) is connected to the system. Select the appropriate monitor type as described previously. The monitor selection is inappropriate for the monitor connected to the system. Select a new monitor.

  • Page 36: Configuring System Audio

    Configuring System Audio Your system was delivered with an installed Creative Labs Sound Blaster 16 audio card. This 16-bit Industry Standard Architecture (ISA) card contains the system’s audio ports and a MIDI/game port. If you connected a microphone and speakers to the ports on this card, you can set the microphone input and speaker volume levels by using the operating system’s audio control programs.

  • Page 37: Configuring A Tape Drive

    Configuring a Tape Drive If you purchased an internal tape drive with your system, it was installed before shipment. You can use the Windows NT Backup tool to run the tape drive; from the operating system Start menu, go to Programs/Administrative Tools/Backup. See the documentation delivered with the tape drive for configuration instructions.
  • Page 38 ID means the identification number of the drive in the slot. NOTE When the standard disk drives are configured by Intergraph Computer Systems (as described below), they assume the ID number of the internal disk section slot. Three or four RAID disk drives may be installed and configured with the Mylex RAID controller software at the factory.

  • Page 39: Changing Drive Letters

    For detailed information about using the Mylex RAID controller BIOS or the Mylex RAID configuration utility, refer to the Mylex RAID controller documentation. For technical information about the disk drive bay, refer to the System Reference. Changing Drive Letters If you have more than one hard disk drive or CD-ROM drive, you may need to reassign system drive letters.

  • Page 40: Configuring The Symbios Scsi Adapter

    Change the SCSI adapter parameters on a per-device basis under the following conditions: If you are advised to do so by Intergraph Computer Systems technical support or instructed to do so by the vendor documentation supplied with the SCSI device.

  • Page 41: Creating An Emergency Repair Disk

    See SCSI Configuration Utility Help and the Symbios SCSI adapter documentation for instructions on using the SCSI Configuration Utility. NOTE Change the synchronous data transfer rate or the data width parameters for an individual device only. Do not change the parameters for the SCSI host adapter itself. Changes to the SCSI host adapter affect all devices on its bus.

  • Page 42: Getting Operating System Updates

    CAUTION If Intergraph Computer Systems provides a Service Pack through the IBBS or w ith a product, it has been certified against Intergraph Computer Systems hardware as described in the announcement of its availability. If you obtain a Service Pack from any other source, be...

  • Page 43: Operating Notes

    Operating Notes This chapter contains important, basic information on operating your RAX system. Starting and Stopping the System.................... 34 Observing Operating Precautions .................... 35 Using the Keyboard......................... 36 Using the Mouse........................37 Using the Floppy Disk Drive....................37 Using the CD-ROM Drive....................... 38 Understanding Disk Drive LEDs.....................

  • Page 44: Starting And Stopping The System

    Starting and Stopping the System The following figure shows the Power button on the front of the system. Power Button Power LED Reset Button Disk Activity Light After connecting the system to AC power, press the Power button to start the system. After you complete Setup and start the system for the first time, you can start and stop the system as needed.

  • Page 45: Observing Operating Precautions

    To log on to the operating system: If the logon dialog does not display, press to display it. CTRL DELETE Type a username and password into the appropriate boxes. If appropriate, type a domain name. Select OK or press ENTER To log off, restart, shut down, or power down the system: Go to Start/Shut Down.

  • Page 46: Using The Keyboard

    Using the Keyboard NOTE If you use a concentrator to connect several systems to a single keyboard, mouse, and monitor, you may not have purchased a keyboard with each system. The system’s keyboard includes the following features: 104 standard keys, including special application function keys ( 1 through 12), arrow keys for moving the cursor, and numeric keys in a keypad.

  • Page 47: Using The Mouse

    Using the Mouse The system’s mouse is a PS/2-compatible tracking device that controls the movement and positioning of the pointer (or cursor) displayed on the screen in a graphical display environment. The basic techniques for using the mouse are as follows: Action Description Point...

  • Page 48: Using The Cd-Rom Drive

    Floppy Disk Drive CD-ROM Drive Using the CD-ROM Drive The system’s CD-ROM drive occupies a 5.25-inch external peripheral device bay, and is accessible through a tray or a slot at the front of the base unit. The drive supports software ejection of discs and has an external amplified headphone jack.

  • Page 49: Understanding Disk Drive Leds

    Understanding Disk Drive LEDs Light-emitting diodes (LEDs) visible behind the disk drive bay door help you determine disk drive activity and status at a glance. There are two LEDs for each disk drive, for a total of eight disk drive LEDs. These LEDs indicate the activity and status of each disk drive installed in the disk drive bay.

  • Page 50: Using Intersite Programs

    Using InterSite Programs Your system shipped with some or all of the following InterSite programs installed: NOTE Hardware Monitor, ECC Memory Monitor, Watchdog, or SMART Disk Driver are not installed on RenderRAX III systems. These products interrupt video streaming (causing dropped video frames) and consume rendering resources.

  • Page 51: Working With Scsi And Ide/Eide Drives

    Working with SCSI and IDE/EIDE Drives In a system that combines SCSI disk drives with a standard ATAPI CD-ROM drive, the system attempts to boot from the CD-ROM drive before it attempts to boot from a SCSI disk drive. This is because, by default, the BIOS looks for an IDE boot drive, and then for the CD-ROM drive, before it looks for a SCSI disk drive.

  • Page 52: Using Hardware Security Features

    The system has security features designed to help prevent unauthorized tampering with the internal components. A tamper-indicating Intergraph Computer Systems Factory Quality Seal is affixed to the base unit, overlapping the top cover and the back of the unit. The seal is your assurance that the unit has not been opened since it left the factory.

  • Page 53: Configuring The Bios

    Configuring the BIOS The BIOS Setup program is used to configure the system’s basic input/output system (BIOS). The BIOS is used to configure the system board and CPU, and to provide hardware information to the operating system. For the system to run properly, run BIOS Setup after you make a hardware change to the system.

  • Page 54: Bios Overview

    BIOS Overview The system’s basic input/output system (BIOS) records basic system operating parameters, such as the amount of memory, the boot sequence, and the type of video display. The operating parameters are set in the BIOS before shipment. The BIOS is stored in flash erasable-programmable memory (EPROM) on the system board, and reads the system parameters in the system’s complementary metal-oxide semiconductor (CMOS) random- access memory (RAM).
  • Page 55 Floppy Drive A: and B: Move the cursor to these fields via and and select the floppy type. The settings are 360 KB 5¼ inch, 1.2 MB 5¼ inch, 720 KB 3½ inch, 1.44 MB 3½ inch, and 2.88 MB 3½ inch. Primary (Master/Slave), Secondary (Master/Slave) Select these options to configure the drive named in the option.

  • Page 56: Advanced Cmos Setup

    Advanced CMOS Setup Quick Boot Set this option to Enabled to instruct the BIOS to boot quickly when the computer is powered on. This option replaces the old Above 1 MB Memory Test Advanced Setup option. The settings are: Setting Description Disabled The BIOS tests all system memory.
  • Page 57 3rd Boot Device This option sets the type of device for the second boot drives that the BIOS attempts to boot from after POST completes. The settings are Disabled, 1st IDE-HDD, 2nd IDE-HDD, 3rd IDE-HDD, 4th IDE-HDD, Floppy, ARMD-FDD, ARMD-HDD, and Atapi CD-ROM. The Optimal default setting is Atapi CD-ROM.
  • Page 58 Password Check This option enables password checking every time the system boots and when you run BIOS Setup. If Always is chosen, a user password prompt appears every time the computer is turned on. If Setup is chosen, the password prompt appears if the BIOS is executed and a password is defined.

  • Page 59: Advanced Chipset Setup

    C000/C400,16K Shadow These options specify how the 32 KB of video ROM at C0000h and C400h are treated. The settings are: Setting Description Disabled The contents of the video ROM are not copied to RAM. Enabled The contents of the video ROM area from C0000h - C7FFFh are copied (shadowed) from ROM to RAM for faster execution.
  • Page 60 Port 64/60 Emulation The Optimal default setting is Disabled. SERR# The Optimal default setting is Disabled. PERR# The Optimal default setting is Disabled. WSC# Handshake The Optimal default setting is Enabled. USWC Write Post Set this option to Enabled to allow write operations from USWC memory to be posted. The settings are Enabled and Disabled.
  • Page 61 DRAM Refresh Rate The settings are 15.6 us, 31.2 us, 62.4 us, 124.8 us, and 249.6 us. The Optimal default setting is 15.6 us. Memory Hole This option specifies the location of an area of memory that cannot be addressed on the ISA bus.
  • Page 62 AGP Low-Priority Timer (AGP Clks) The settings are Disabled, 16, 32, 48, 64, 80, 96, 112, 128, 144, 176, 192, 208, 224, and 240. The Optimal default setting is 16. AGP SERR The Optimal default setting is Disabled. AGP Parity Error Response The Optimal default setting is Disabled.

  • Page 63: Power Management Setup

    DMA-# Type The settings are Normal ISA, PC/PCI, and Distributed. The Optimal default setting is Normal ISA. CPU Bus Frequency The settings are Auto, 66.8 MHz, 68.5 MHz, 75 MHz, 83.3 MHz, 100 MHz, 103 MHz, and 112 MHz. The Optimal default setting is Auto. Power Management Setup The BIOS Setup options described in this section are selected by choosing Power Management Setup from the BIOS Setup main menu.
  • Page 64 Hard Disk Power Down Mode This option specifies the power conserving state that the hard disk drive enters after the specified period of hard drive inactivity has expired. The settings are Disabled, Standby, and Suspend. The Optimal default setting is Suspend. Hard Disk Timeout (Minute) This option specifies the length of a period of hard disk drive inactivity.

  • Page 65: Pci/Plug And Play Setup

    Display Activity When set to Monitor, this option enables event monitoring on the video display. If set to Monitor and the computer is in a power saving state, the BIOS watches for display activity. The computer enters the Full On state if any activity occurs. The BIOS reloads the Standby and Suspend timeout timers if display activity occurs.
  • Page 66 PCI Latency Timer (PCI Clocks) This option specifies the latency timings (in PCI clocks) for PCI devices installed in the PCI expansion slots. The settings are 32, 64, 96, 128, 160, 192, 224, and 248. The Optimal default setting is 64. PCI VGA Palette Snoop When this option is set to Enabled, multiple VGA devices operating on different buses can handle data from the CPU on each set of palette registers on every video device.
  • Page 67 PCI Slot# IRQ Priority The Optimal default setting is Auto; the other settings are 3, 4, 5, 7, 9, 10, 11, 12, and 14. DMA Channel (0/1/3/5/6/7) These options allow you to specify the bus type used by each DMA channel. The settings are PnP and ISA/EISA.

  • Page 68: Peripheral Setup

    Peripheral Setup Power Interruption The Optimal default setting is Enabled. Onboard FDC Set this option to Enabled to enable the floppy drive controller on the motherboard. The settings are Auto (the BIOS automatically determines if the floppy controller should be enabled), Enabled, and Disabled.

  • Page 69: Auto-Detect Hard Disks

    Parallel Port Mode This option specifies the parallel port mode. The Optimal default setting is Normal. The settings are: Setting Description Normal The normal parallel port mode is used. Bi-Dir The parallel port can be used to data transfer in two directions. The parallel port can be used with devices that adhere to the Enhanced Parallel Port (EPP) specification.

  • Page 70: Change User Password

    Updating the System BIOS For information on updating the system’s BIOS, see the file delivered with the README FLASHUTIL2M system software product, which is available from the online services of Intergraph Computer Systems. See the Preface for information on locating the online services.

  • Page 71: Troubleshooting

    Troubleshooting Use this chapter to identify and resolve common basic system problems. Checking the System ......................62 System Power........................62 System Boot ........................63 Video ..........................66 Network..........................66 Peripheral Drive Errors ....................67 Miscellaneous Hardware ....................67...

  • Page 72: Checking The System

    RAID disk drives, external RAID disk arrays, or other connected peripheral devices. If you cannot resolve the problem or if the instructions direct you to the Intergraph Computer Systems Customer Response Center, call 1-800-633-7248. See the Preface of this document for other information about contacting Intergraph Computer Systems.

  • Page 73: System Boot

    System Boot Does not boot from the expected boot device: Reason Solution Operating system not on the system drive. Install the operating system as described in Chapter 7. IDE hard disk drive is connected to IDE BIOS cannot boot from a SCSI hard disk controller.
  • Page 74 Message Explanation and Solution Call the Customer Response Center. Display Memory Read/Write Error The sound controller is faulty. Call the Customer Response Center. ROM Checksum Error The ROM checksum value does not match the value encoded in the BIOS. Call the Customer Response Center.
  • Page 75 System hard disk drive is not recognized: Reason Solution Hard disk drive power cable not attached. Open the base unit and ensure power cable is properly attached. See the System Reference. Hard disk drive SCSI cable not attached. Open the base unit. Ensure the SCSI cable is properly attached at both ends.

  • Page 76: Video

    Video System is powered on, but screen remains blank: Reason Solution Monitor not powered on. Turn on power to the monitor. Monitor power cord not connected. Connect monitor power cord to AC outlet and monitor. Video cable not properly installed. Ensure video cable is connected to monitor and system video out connector.

  • Page 77: Peripheral Drive Errors

    Peripheral Drive Errors CD-ROM drive LED does not light when system power is on: Reason Solution CD-ROM drive power cable or data cable Open the base unit and ensure power cable not attached. and data cable are properly attached. See the System Reference.
  • Page 78 DMA bus timeout message displays: Reason Solution Failure in DMA bus logic has occurred. Call the Customer Response Center. “Invalid configuration information for SLOT XX” message displays: Reason Solution System is not properly configured to Use BIOS Setup to reserve system resources recognize the new ISA option card.

  • Page 79: Reinstalling System Software

    Reinstalling System Software Follow the instructions in this chapter only if you need to reinstall the operating system and associated system software on your RAX system. Before you reinstall the software, ensure that you read and understand this entire chapter. Before You Begin......................

  • Page 80: Before You Begin

    CD-ROM. Driver software is routinely improved and updated. Use InterSite Version Manager, or visit Intergraph Computer Systems on the World Wide Web and vendor bulletin boards for new and updated drivers. Review the Late-Breaking News document delivered with your system for any additional tasks...

  • Page 81: System Software Products

    The following table lists drivers and other system software products that may be installed on your RAX system. You should be able to find most of these products on the Intergraph System CD. If a product is not available there, it is delivered on the operating system software CD-ROM, or with an expansion card or an additional peripheral device.

  • Page 82: Installing Windows Nt Workstation 4.0

    Installing Windows NT Workstation 4.0 Depending on your system’s configuration, you will need some or all of the following system software during the installation process: SCSI adapter driver Mouse driver Graphics adapter driver Network adapter driver QFE update software (if needed) NOTE If you want to boot from a SCSI hard disk drive, you must change the 2nd Boot Device option in BIOS Setup from 1st IDE-HDD to SCSI.

  • Page 83: Enabling Bus Mastering For Ide/Atapi Devices

    Enabling Bus Mastering for IDE/ATAPI Devices Your system shipped with bus mastering for IDE/ATAPI devices enabled. If you reinstall Windows NT 4.0 and the latest Service Pack software certified by Intergraph Computer Systems, you should enable IDE/ATAPI bus mastering. NOTE If you have a CD-Recorder drive installed, do not enable IDE/ATAPI bus mastering.

  • Page 84: Updating The Operating System

    CAUTION If Intergraph provides a Service Pack or Service Release through the IBBS or with a product or system, it has been certified against Intergraph hardware as described in the announcement of its availability. If you obtain a Service Pack or Service Release from any...

  • Page 85: Using System Resources

    Using System Resources This chapter provides information on using system resources, such as interrupt requests (IRQs), direct memory access (DMA) channels, input/output (I/O) addresses, and memory addresses. The chapter covers specific Peripheral Component Interconnect (PCI) and Industry Standard Architecture (ISA) devices offered as system options. The devices discussed in this chapter require specific resource settings to ensure proper system operation.

  • Page 86: System Resources

    System Resources The following sections list the available system resources. See the vendor documentation delivered with an expansion card or a peripheral device for instructions on how to use these resources. ISA Bus Interrupt (IRQ) Assignments Assignment Assignment Reserved (timer/counter) Reserved (real-time clock) Reserved (keyboard controller) USB or Windows sound...
  • Page 87 I/O Address (hex) Size Assignment 0060 1 byte Keyboard controller 0061 1 byte NMI and speaker 0064 1 byte Keyboard controller 0070 bit7 1 bit Enable NMI 0070 bit0:6 7 bits RTC address (max. 128 bytes) 0071 1 byte RTC data byte 0080–008F 16 bytes DMA page registers...

  • Page 88: Memory Addresses

    I/O Address (hex) Size Assignment 03F0–03F5 5 bytes Floppy drive channel 1 03F6 1 byte Primary IDE channel command 03F7 write 1 byte Floppy drive channel 1 command 03F7 bit7 read 1 bit Floppy drive channel 1 disk change status 03F7 bit0:6 read 7 bits Primary IDE channel status...

  • Page 89: Using System Resources

    Memory Address Range Size Description (4G–17M)– FEF00000–FFDFFFFF PCI/AGP memory (4G–2M) (4G–2M)–4G FFE00000–FFFFFFFF High system BIOS Using System Resources Most ISA devices installed in the system require you to reserve an IRQ. PCI devices also need to use an IRQ, but since they share system resources they can use the same IRQ. At least one IRQ must be left unassigned, for use with any PCI devices installed in your system.
  • Page 90 Some older PCI device drivers cannot share an interrupt, which is a violation of the PCI 2.1 specification. If you install a device that uses such a driver, you must free an IRQ for the device to work in the system.

  • Page 91: Returned Goods Authorization (Rga) Form

    Phone Mail Address Reason for Return NOTE All returned equipment MUST be shipped in original Intergraph packaging to obtain warranty service. WARNING Back up disk drives before returning equipment. Intergraph is not responsible for data lost in shipping or repair process.

  • Page 92: Warranty Procedure

    Warranty Procedure Some malfunctioning equipment cannot be repaired in the field, and you must return it to Intergraph for repair. Follow these steps to obtain a Returned Goods Authorization (RGA) log number and return the malfunctioning equipment. Determine the serial number of the system. The serial number is located on the white bar code identification label on the back of the base unit.
  • Page 93 Repair Depot RGA No. ________________________ Intergraph Corporation 9805 Kellner Road Huntsville AL 35894 Repair Depot RGA No. ________________________ Intergraph Corporation 9805 Kellner Road Huntsville AL 35894 Repair Depot RGA No. ________________________ Intergraph Corporation 9805 Kellner Road Huntsville AL 35894...
