CAUTION The clock sync cable installs only one way. Do not force the keyed connector. Ensure pin 1
of both cable connectors engages pin 1 on both board connectors. The black wire connects
to pin 1.
8. Close the system base unit.
9. Go to "Connecting the Video Cables" later in this chapter to connect the monitor and
VGA loopback cables.
10. Restart the system and log on to the Windows NT operating system.
11. Use Display in the Windows NT Control Panel to configure the video display driver to
recognize dual screens. Refer to Chapter 1 for more information.

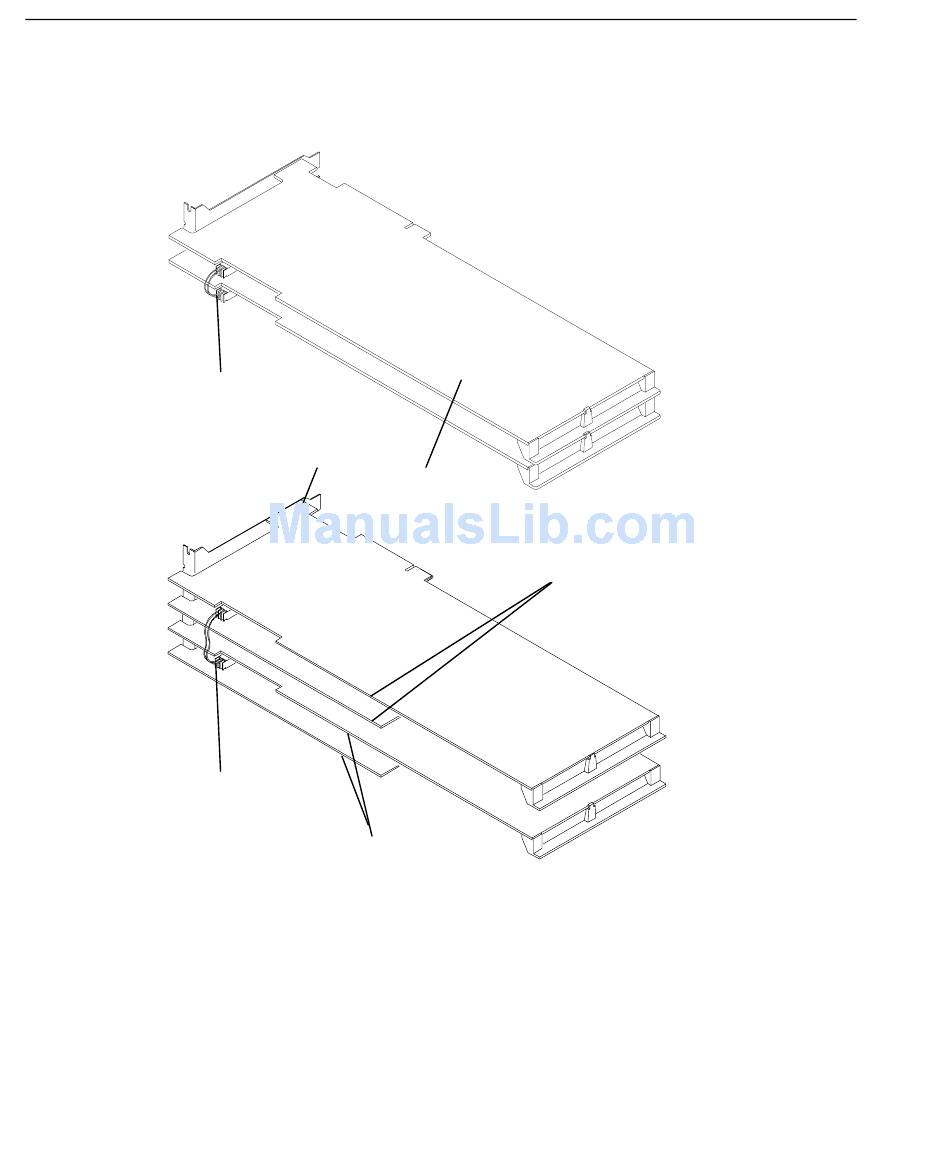

Clock Sync
Cable
Z10 Boards
Clock Sync
Cable
Secondary
Z10-T
Board Set
Primary
Z10-T
Board Set
