VGA Input Port

The VGA input port allows connection of a VGA device to be used by the system while in
VGA graphics mode.
NOTE When the VGA input port is not used, an on-board VGA device assumes this function.
The following table provides the pin connections for the VGA input port.
Signal Name
Red Analog Video
Green Analog Video
Blue Analog Video
Monitor ID [2]
Cable Sense
Ground
Ground
Ground
No Connect
Ground
Monitor ID [0]
Monitor ID [1] or Bidirectional Data (SDA) for DDC
Horizontal/Composite Sync
Vertical Sync
Monitor ID [3] or Data Clock (SCL) for DDC

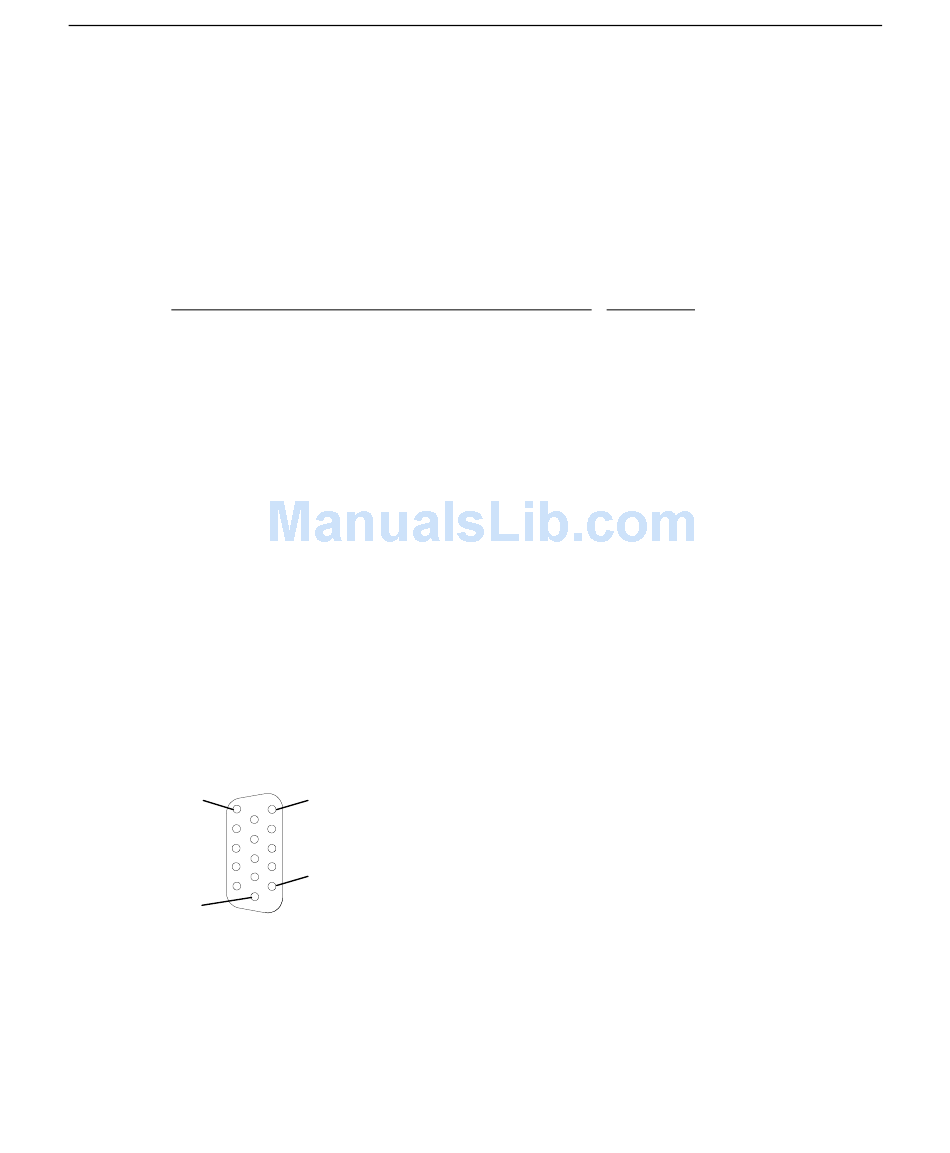

The VGA input port is female, 15-pin, D-Sub as shown in the following figure.
15
6
5
1
Pin
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
