CAUTION The clock sync cable installs only one way. Do not force the keyed connector. Ensure pin 1
of both cable connectors engages pin 1 on both board connectors. The black wire connects
to pin 4.
9. Close the system base unit.
10. Go to "Connecting the Video Cables" in this chapter to connect the monitor cables.
11. Restart the system and log on to the Windows NT operating system.
12. Use Display in the Windows NT Control Panel to configure the video display driver to
recognize dual screens. Refer to Chapter 1 for more information.

Connecting the Video Cables

After replacing Z13, Z25, or V25, or installing a dual-screen upgrade in a TDZ workstation,
use the following instructions to connect the monitor cables as required.
CAUTION Do not connect the monitor cables to the VGA ports. If you do, the video will not display.

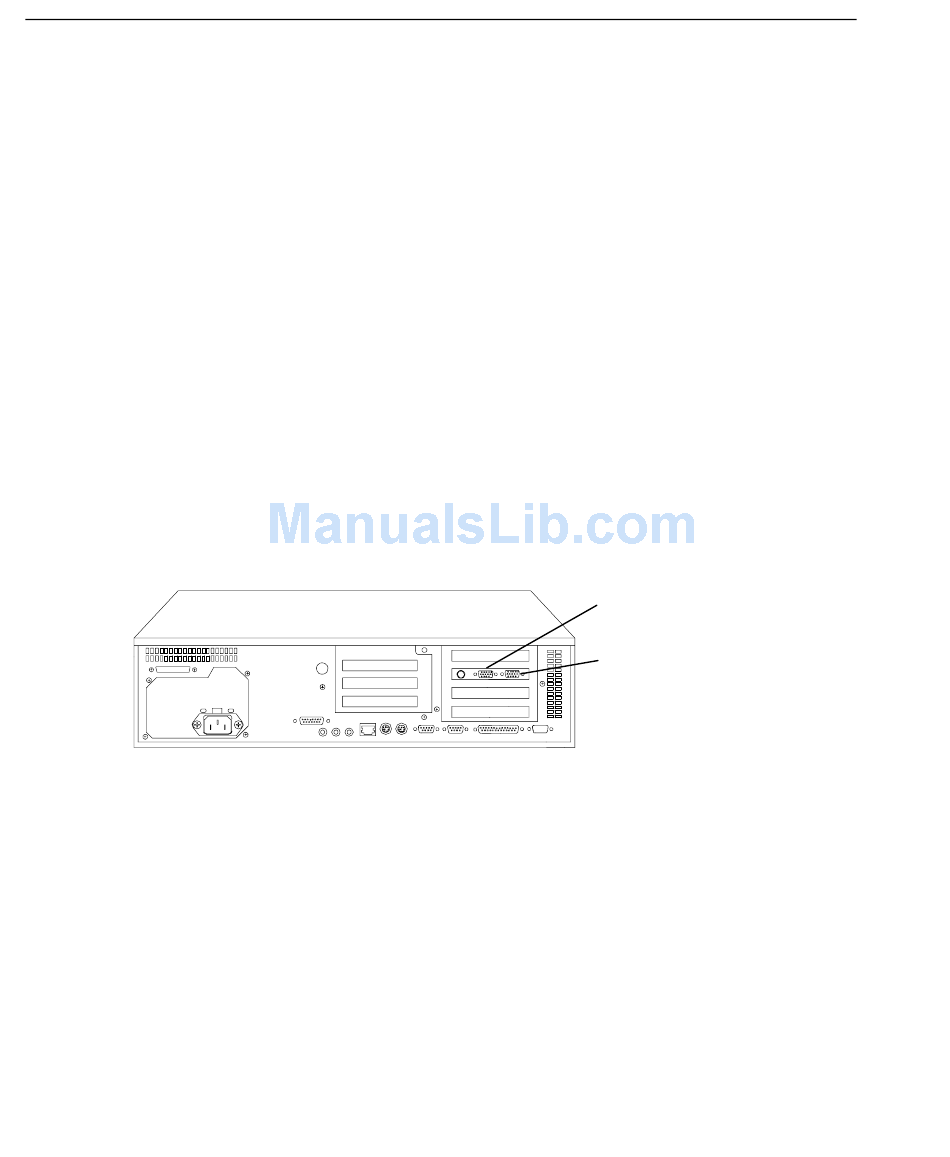

Z13, Z25, or V25 in a desktop system: Connect the monitor cable to the Video port shown
in the following figure.
Video Port PCI Slot 2
VGA Port (not used)
