Configuring Display Properties - Intergraph RealiZm Graphics Z10 Hardware User's Manual

4

Configuring Display Properties

To enable your system to use its installed graphics board, you must configure the video
display driver to use the RealiZm graphics accelerator. Intergraph installs the video display
driver on the system's hard disk drive. The Display Properties dialog is available from the
Windows NT Control Panel to determine the system configuration and installed options.
Display Properties allows you to modify the video settings to meet your needs.
To start the Display Properties dialog:
1. At the screen's bottom left corner, click Start.
2. Under Settings, open the Windows NT Control Panel.

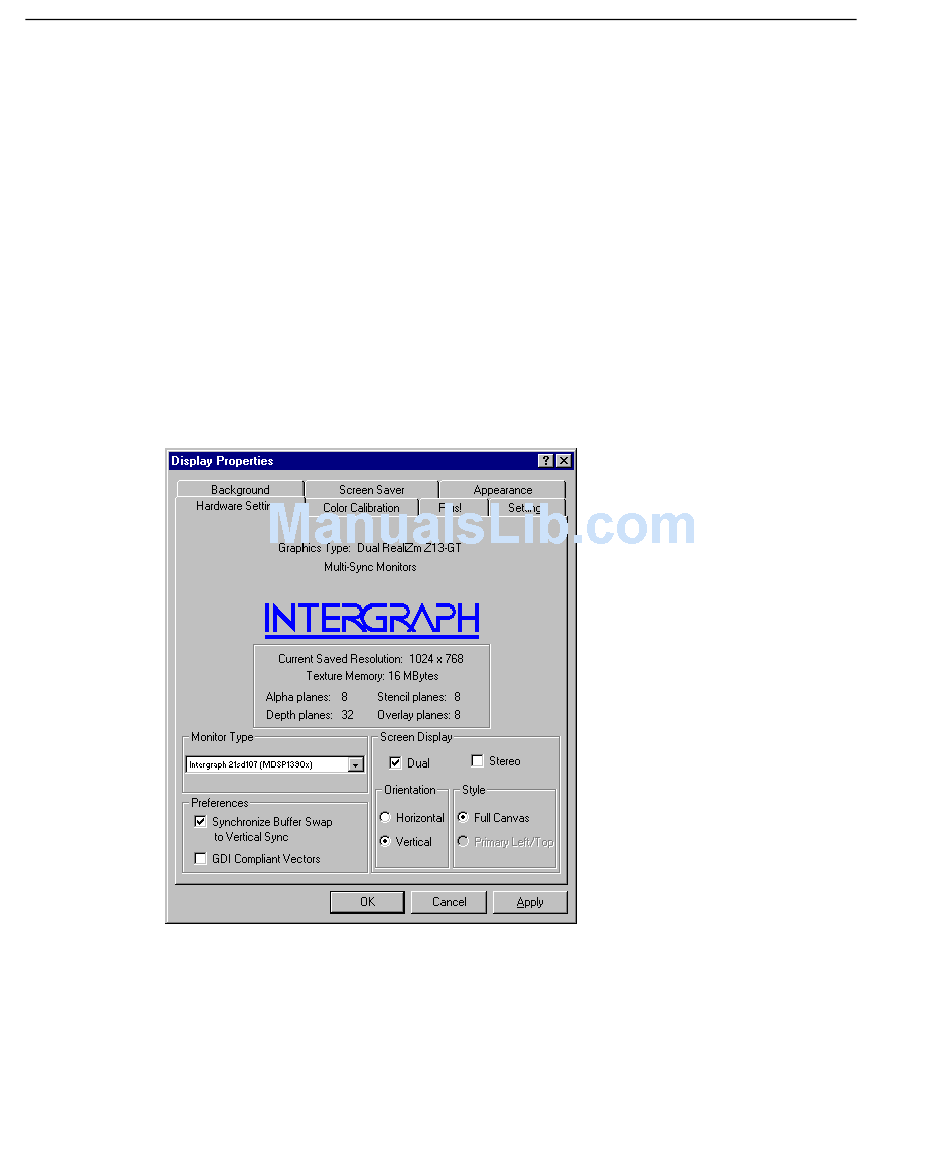

3. In the Control Panel, open Display. The Display Properties dialog displays.
4. Select the Hardware Settings tab. The Hardware Setting page displays.
When a supported video display driver is running on your system, the Hardware Settings
page displays text describing the graphics hardware and monitor present on your system.
The page allows you to review and change the settings of your system's video attributes,
such as monitor type, orientation, and other attributes.
NOTE If this is your first time to install the video display driver (for example, when re-installing
Windows NT), the Hardware Settings and Color Calibration pages do not display until you
restart the system.
