Replacing Z10 or Z10-T

This section describes replacing a Z10 board or a Z10-T board set in a desktop or
deskside TDZ workstation. The procedure also describes replacing a Z10 board with a Z10-T
board set.
NOTE In a desktop system, you cannot replace two Z10 boards with two Z10-T board sets, or install
two Z10-T board sets.
A Z10-T board set consists of two boards joined together as one unit. An installed Z10-T
board set requires two adjacent PCI slots. The following figure shows a Z10-T board set.

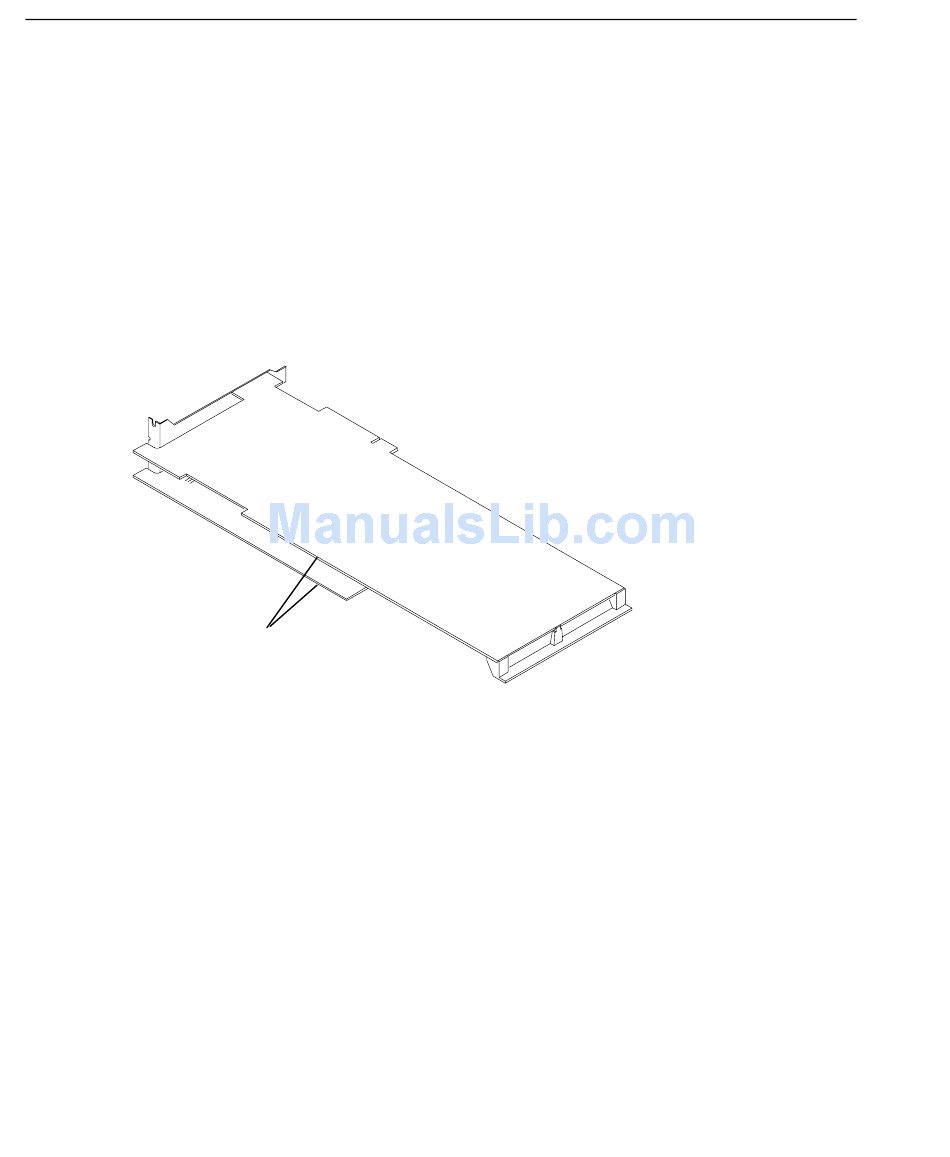

Z10-T Board Set
To replace Z10 or Z10-T:
1. Shut down the system and turn off system power.
2. Disconnect the cables from the Video and VGA ports on the back of the system base unit.
3. Open the system base unit as required to gain access to the PCI option board slots. Slots
are identified in "Connecting the Video Cables" later in this chapter.
