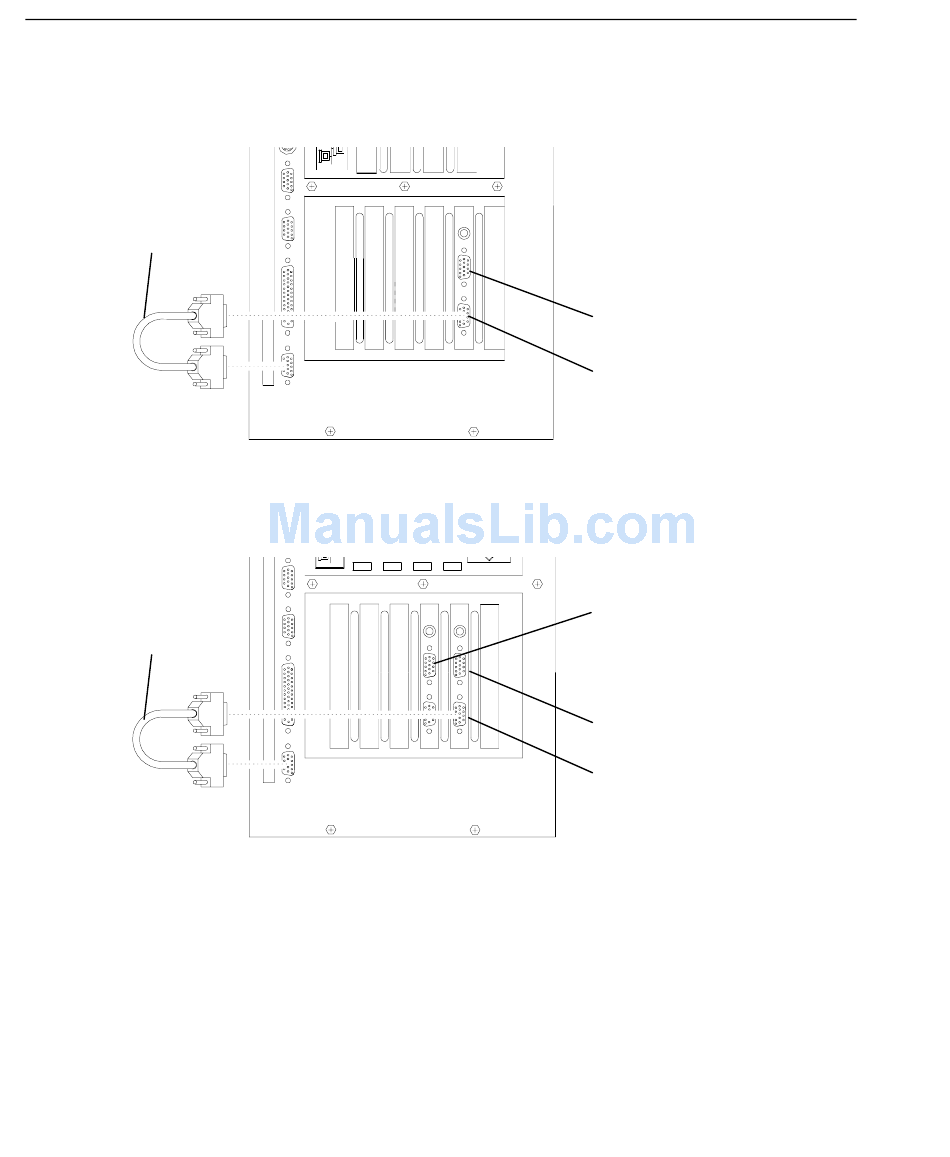

Single-screen Z10 or Z10-T in a deskside system: Connect the monitor cable to the Video
port, and connect the VGA loopback cable as shown in the following figure.
VGA
Loopback
Cable
Dual-screen Z10 in a deskside system: Connect the monitor cables from the primary
monitor and the secondary monitor to the Video ports shown in the following figure. Connect
the VGA loopback cable as shown in the following figure.
VGA
Loopback
Cable
Video Port PCI Slot 2
VGA Port
Video Port PCI Slot 3
(Secondary)
Video Port PCI Slot 2
(Primary)
VGA Port (Primary)
