3. Open the system base unit as required to gain access to the PCI option board slots. Slots
are identified in "Connecting the Video Cables" later in this chapter.

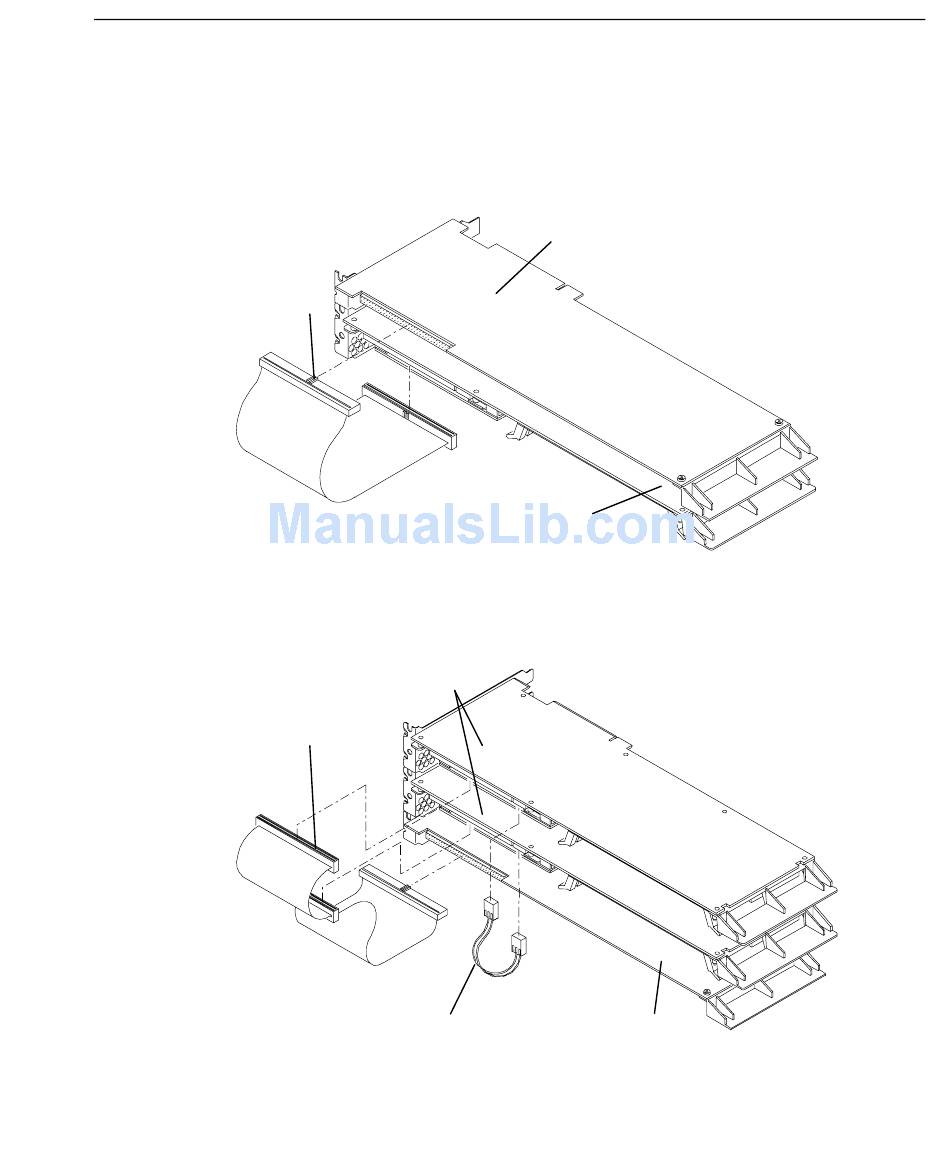

4. If a Geometry Accelerator board is already installed in a single-screen desktop
configuration, disconnect the Vertex data bus between it and the graphics board. The
following figure shows one Z13, Z25, or V25 board.
Vertex
Data
Bus
If a Geometry Accelerator board is already installed in a dual-screen deskside
configuration, disconnect the Vertex data bus between it and the graphics boards; then
disconnect the clock sync cable between the graphics boards. The following figure shows
two Z13, Z25, or V25 boards.
Z13, Z25, or
V25
Dual-
Screen
Vertex
Data
Bus
Clock Sync
Cable
5. Use a quarter-inch nutdriver to remove the screws that secure the board to the system
chassis. Retain the screws.
Geometry
Accelerator
Z13, Z25, or
V25
Geometry
Accelerator
