4.
Remove the front bezel (see
5.

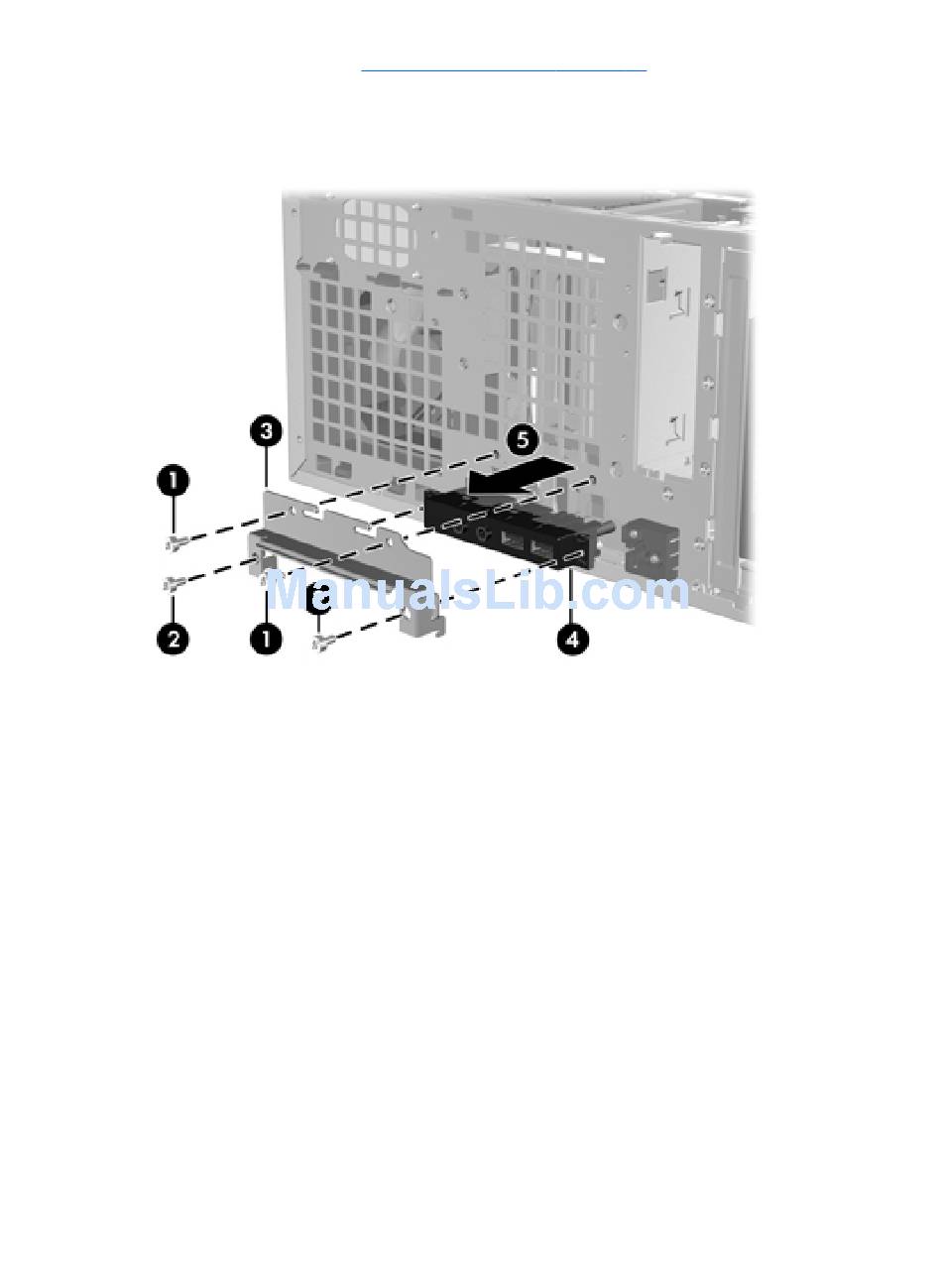

Remove the top set of fastening screws from the I/O device assembly (1), as shown in the
following figure.
Figure 5-10
6.
Remove the bottom set of fastening screws from the I/O device assembly (2).
7.
Pull the mounting bracket away from the chassis (3).
8.
Grasp the I/O device assembly (4), and pull it away from the chassis (5).
84
Chapter 5 Replacing components
Removing the front bezel on page
Removing the front panel I/O device assembly
83).
ENWW
