HP Z400 Quickspecs

Hewlett-packard personal computer quickspecs.
Hide thumbs

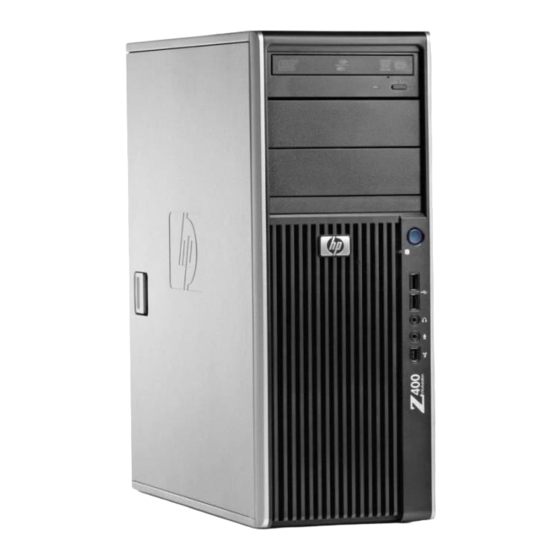

QuickSpecs
Overview
1. 3 External 5.25" Bays
2. Power Button
3. Front I/O: 2 USB 2.0, 1 IEEE 1394a (optional card required), Headphone,
Microphone
DA - 13276
Worldwide QuickSpecs — Version 1 — 3.30.2009
HP Z400 Workstation
HP recommends Windows Vista
®
Business
Page 1

Advertising

   Related Manuals for HP HP Z400

   Summary of Contents for HP HP Z400

  • Page 1

    1. 3 External 5.25" Bays 2. Power Button 3. Front I/O: 2 USB 2.0, 1 IEEE 1394a (optional card required), Headphone, Microphone DA - 13276 Worldwide QuickSpecs — Version 1 — 3.30.2009 HP Z400 Workstation HP recommends Windows Vista Business Page 1 ®...

  • Page 2

    Genuine Windows Vista® Business 64-bit with downgrade to Windows® XP Professional x64 custom installed** (expected available until August 2009) HP Linux Installer Kit for Linux (includes drivers for both 32-bit & 64-bit OS versions of Red Hat Enterprise Linux WS4 and WS5 - see: http://www.hp.com/workstations/software/linux) Novell Suse SLED 11 (expected availability May 2009) *Certain Windows Vista product features require advanced or additional hardware.

  • Page 3

    40° to 95°F (5° to 35°C) –40° to 140° F (–40° to 60° C) 8% to 85% 8% to 90% 10,000 feet; 3,000 m 30,000 feet; 9,100 m Worldwide QuickSpecs — Version 1 — 3.30.2009 HP Z400 Workstation Page 3...

  • Page 4: Supported Components

    (Vista). SAS Hard Drives HP SAS (Serial Attached SCSI) Hard Drives for HP Workstations 146 GB 15K rpm SAS 3.0 Gb/s 3.5" Hard Drive 300 GB 15K rpm SAS 3.0 Gb/s 3.5" Hard Drive 450 GB 15K rpm SAS 3.0 Gb/s 3.5"...

  • Page 5

    Up to (4) 3.5-inch 15K rpm SAS devices: 146, 300, 450, 600 GB; 2.42 TB max Removable Boot Drive option SATA Hard Drives SATA (Serial ATA) Hard Drives for HP Workstations 160 GB 7,200 rpm SATA 3.0 Gb/s with NCQ 3.5" Hard Drive 250 GB 7,200 rpm SATA 3.0 Gb/s with NCQ 3.5"...

  • Page 6

    NVIDIA Quadro CX - The Accelerator for Creative Suite 4 DA - 13276 Factory Option Configured Worldwide QuickSpecs — Version 1 — 3.30.2009 HP Z400 Workstation for details. Option Kit Supported Part Number Support Notes FH519AA 2nd card must be NVS 295...

  • Page 7

    NOTE: Only unbuffered DDR3 DIMMs are supported. Multimedia and Audio Devices Integrated Intel/Realtek HD ALC262 Audio HP Thin USB Powered Speakers Creative X-Fi Titanium PCIe Audio Card DA - 13276 Worldwide QuickSpecs — Version 1 — 3.30.2009 HP Z400 Workstation...

  • Page 8

    HP LP2275w 22-inch Widescreen LCD Monitor HP LP2475w 24-inch Widescreen LCD Monitor HP DreamColor LP2480zx Professional Display HP LP3065 30-inch Widescreen LCD Monitor NOTE: Supported by all Operating Systems available from HP (screen size diagonally measured) DA - 13276 Factory Configured Worldwide QuickSpecs —...

  • Page 9

    Security Security Cable with Kensington Lock HP Solenoid Hood Lock & Hood Sensor HP (CMT) Solenoid Lock HP xw4/Z4 Depth Adjustable Fixed Rail Rack Kit Input Devices HP PS/2 Standard Keyboard HP USB Standard Keyboard HP PS/2 Optical Scroll Mouse...

  • Page 10

    HP Power Cord Kit HP 2nd Serial Port Adapter HP Internal USB Port Kit HP Optical Bay HDD Mounting Bracket HP Workstation to LTO SAS Int. Cable HP Fan and Front Card Guide Kit Software HP Performance Tuning Framework Roxio Easy Media Creator (CD or DVD burner)

  • Page 11

    Windows® XP Professional 32-bit custom installed Genuine Windows Vista® Business 64-bit with downgrade to Windows® XP Professional x64 custom installed HP Linux Installer Kit DA - 13276 Support Notes Certain Windows Vista product features require advanced or additional hardware. See www.microsoft.com/windowsvista/getready/hardwarereqs.mspx www.microsoft.com/windowsvista/getready/capable.mspx...

  • Page 12: System Board

    RAID capabilities with Linux. Integrated RAID NOTE: Requires identical hard drives (speeds, capacity, interface) Integrated Graphics Network Controller Integrated HP Gbit LAN by Broadcom External SATA (eSATA) 4 ports are eSATA configurable with optional eSATA After-Market Option cable kit. IDE connector Floppy connector DA - 13276 Integrated 6-channel SATA 3.0Gb/sec controller with RAID 0,...

  • Page 13

    92x25 mm variable speed ENERGY STAR® qualified (Config Dependent) DA - 13276 1 IEEE 1394a (requires optional PCI card to function) 2 USB 2.0 6 USB 2.0 2 USB 2.0 headers Worldwide QuickSpecs — Version 1 — 3.30.2009 HP Z400 Workstation Page 13...

  • Page 14

    Typical 954 btu/hr (240.3 kg-cal/hr) Maximum 1977 btu/hr (498.2 kg-cal/hr) 92x25 mm variable speed *Input Voltage Restrictions Worldwide QuickSpecs — Version 1 — 3.30.2009 HP Z400 Workstation 90 - 269 VAC 118 VAC 400 Hz 393 - 407 Hz 10 A @118 VAC Yes, Bronze <6W...

  • Page 15

    QuickSpecs HP Z400 Workstation System Technical Specifications DA - 13276 Worldwide QuickSpecs — Version 1 — 3.30.2009 Page 15...

  • Page 16

    QuickSpecs HP Z400 Workstation System Technical Specifications DA - 13276 Worldwide QuickSpecs — Version 1 — 3.30.2009 Page 16...

  • Page 17

    QuickSpecs HP Z400 Workstation System Technical Specifications DA - 13276 Worldwide QuickSpecs — Version 1 — 3.30.2009 Page 17...

  • Page 18

    Intel Xeon Processor W3505 2.53 GHz 4 x 1GB DDR3 1333 MHz NVIDIA Quadro NVS 295 1 x 160 GB 7200 RPM SATA / DVD-ROM / No Floppy Worldwide QuickSpecs — Version 1 — 3.30.2009 HP Z400 Workstation Page 18...

  • Page 19

    Above 5000 ft (1524 m) altitude, maximum operating temperature is de- rated by 1.8° F (1° C) per 1000 ft (305 m) elevation increase Worldwide QuickSpecs — Version 1 — 3.30.2009 HP Z400 Workstation Deskside Sound Pressure 23 dB 25 dB...

  • Page 20

    Configuration Record SW Yes Over-Temp Warning on Screen Restore CD Set Restores the computer to its original factory shipping image - Can be obtained via HP Support Dual Function Front Power Yes, causes a fail-safe power off when held for 4 seconds Switch...

  • Page 21

    Key features and benefits HP Insight Diagnostics simplifies the process of effectively identifying, diagnosing, and isolating the hardware issues. In addition to robust management tools, service tools can be invaluable in quickly resolving system problems. To streamline the service process and resolve problems quickly, it is necessary to have the right information available at the time that a service call is placed.

  • Page 22

    Enables an operating system to control system power consumption based on the dynamic Management Interface) workload. Makes it possible to place individual cards and peripherals in a low-power or powered-off state DA - 13276 Worldwide QuickSpecs — Version 1 — 3.30.2009 HP Z400 Workstation Page 22...

  • Page 23

    PCI Express Base Specification, Revision 2.0 POST Memory Manager Specification, Version 1.01 SATA Serial ATA Specification, Revision 1.0a Serial ATA 3.0Gb/s: Extensions to Serial ATA 1.5Gb/s, Revision 1.0 DA - 13276 Worldwide QuickSpecs — Version 1 — 3.30.2009 HP Z400 Workstation Page 23...

  • Page 24

    Battery size: CR2032 (coin cell) Battery type: Lithium Restricted Material Usage This product does not contain any of the following substances in excess of regulatory limits (refer to the HP General Specification for the Environment at DA - 13276 Worldwide QuickSpecs — Version 1 — 3.30.2009...

  • Page 25

    Radioactive Substances Tributyl Tin (TBT), Triphenyl Tin (TPT), Tributyl Tin Oxide (TBTO) Packaging HP Workstation product packaging meets the following (refer to the HP General Specification for the Environment at http://www.hp.com/hpinfo/globalcitizenship/environment/supplychain/gen_specifications.html: Does not contain restricted substances listed in HP Standard 011-1 General Specification for the Environment (see link above).

  • Page 26

    HP Care Pack Services extend service contracts beyond the standard warranties. Service starts from date of hardware purchase. To choose the right level of service for your HP product, use the HP Care Pack Services Lookup Tool at http://www.hp.com/go/lookuptool. Additional HP Care Pack Services information by product is available at http://www.hp.com/hps/carepack.

  • Page 27: Turbo Boost Technology

    Benefit of Turbo Boost (how much CPU speed up) depends on number of active cores Likelihood of Turbo Boost operation increases when less cores are active Likelihood of Turbo Boost operation increases when dynamic power mgt is enabled DA - 13276 Worldwide QuickSpecs — Version 1 — 3.30.2009 HP Z400 Workstation Page 27...

  • Page 28

    QuickSpecs Technical Specifications - Hard Drives HP SAS (Serial Attached 300 GB SCSI) Hard Drives for HP (15K) Workstations 146 GB (15K) 450 GB (15K) DA - 13276 Capacity 300 GB Height 1 in; 2.5 cm Width Media Diameter Physical Size...

  • Page 29

    Media Diameter Physical Size Interface Serial ATA (3.0 Gb/s), Native Command Queuing enabled Worldwide QuickSpecs — Version 1 — 3.30.2009 HP Z400 Workstation 3.5 in; 8.9 cm 4 in; 10.2 cm 0.3 ms 4.6 ms 10.2 ms 3.5 in; 8.9 cm 4 in;...

  • Page 30

    Rotational Speed 7,200 rpm Logical Blocks 312,581,808 Operating Temperature 41 to 131 F (5 to 55 C) Worldwide QuickSpecs — Version 1 — 3.30.2009 HP Z400 Workstation 2 ms 11 ms 21 ms 3.5 in; 8.9 cm 4 in; 10.2 cm...

  • Page 31

    7,200 rpm Logical Blocks 625,142,448 Operating Temperature 41° to 131° F (5° to 55° C) Worldwide QuickSpecs — Version 1 — 3.30.2009 HP Z400 Workstation 2.5 in; 6.36 cm 4 in; 10.17 cm 0.7 ms (maximum) 4.4 ms 9.5 ms 3.5 in;...

  • Page 32

    Eight 3Gb/s SAS/SATA ports Two SAS SFF8087 x4 Two SAS SFF8088 x4 Connector LEDs indicate whether the internal or external connector is active for ports 0-3 and 4-7 Worldwide QuickSpecs — Version 1 — 3.30.2009 HP Z400 Workstation Page 32...

  • Page 33

    Genuine Microsoft Windows Vista(64-bit and 32-bit), Microsoft Windows XP Professional(64-bit and 32-bit) Red Hat Enterprise Linux(RHEL) WS4 & 5 Desktop/Workstation HP qualified drivers may be preloaded or available from the HP support web site: http://welcome.hp.com/country/us/eng/software_drivers.html. Novell SUSE Linux Enterprise drivers may be obtained from: ftp://download.nvidia.com/novell or http://www.nvidia.com...

  • Page 34

    Big Desktop mode, and Clone mode ) Red Hat Enterprise Linux(RHEL) WS3, WS4 & 5 Desktop/Workstation HP qualified drivers may be preloaded or available from the HP support web site: http://welcome.hp.com/country/us/eng/software_drivers.html. Novell SUSE Linux Enterprise drivers may be obtained from: ftp://download.nvidia.com/novell or http://www.nvidia.com...

  • Page 35

    Conditional execution Direct X 10.0 Professional(64-bit and 32-bit) Red Hat Enterprise Linux(RHEL) WS4 & 5 Desktop/Workstation HP qualified drivers may be preloaded or available from the HP support Web site: http://welcome.hp.com/country/us/en/support.html Novell SUSE Linux Enterprise drivers may be obtained from: ftp://download.nvidia.com/novell...

  • Page 36

    Dedicated branch execution units and texture address processors DirectX 10.1 Microsoft Windows XP Professional (64-bit and 32-bit) HP qualified drivers may be preloaded or available from the HP support Web site: http://welcome.hp.com/country/us/en/support.html Linux drivers may be obtained from: http://ati.amd.com/support/driver.html...

  • Page 37

    Conditional execution Direct X 10.0 Professional(64-bit and 32-bit) Red Hat Enterprise Linux(RHEL) WS4 & 5 Desktop/Workstation HP qualified drivers may be preloaded or available from the HP support Web site: http://welcome.hp.com/country/us/en/support.html Novell SUSE Linux Enterprise drivers may be obtained from: ftp://download.nvidia.com/novell...

  • Page 38

    Supported graphics APIs OpenGL 2.1 Available graphics drivers Genuine Windows Vista Business (64-bit and 32-bit) Power consumption DA - 13276 HP qualified drivers may be preloaded or available from the HP support Web site: http://welcome.hp.com/country/us/en/support.html Novell SUSE Linux Enterprise drivers may be obtained from: ftp://download.nvidia.com/novell...

  • Page 39

    Conditional execution Direct X 10.0 Professional(64-bit and 32-bit) Red Hat Enterprise Linux(RHEL) WS4 & 5 Desktop/Workstation HP qualified drivers may be preloaded or available from the HP support Web site: http://welcome.hp.com/country/us/en/support.html Novell SUSE Linux Enterprise drivers may be obtained from: ftp://download.nvidia.com/novell...

  • Page 40

    Dedicated branch execution units and texture address processors DirectX 10.1 Microsoft Windows XP Professional (64-bit and 32-bit) HP qualified drivers may be preloaded or available from the HP support Web site: http://welcome.hp.com/country/us/en/support.html Linux drivers may be obtained from: http://ati.amd.com/support/driver.html...

  • Page 41

    Genuine Windows Vista Business (64-bit and 32-bit) Microsoft Windows XP Professional (64-bit and 32-bit) Red Hat Enterprise Linux(RHEL) WS4 & 5 Desktop/Workstation HP qualified drivers may be preloaded or available from the HP support Web site: http://welcome.hp.com/country/us/en/support.html Novell SUSE Linux Enterprise drivers may be obtained from: ftp://download.nvidia.com/novell...

  • Page 42

    Conditional execution Direct X 10.0 Genuine Windows Vista Business (64-bit and 32-bit) Microsoft Windows XP Professional (64-bit and 32-bit) HP qualified drivers may be preloaded or available from the HP support Web site: http://welcome.hp.com/country/us/en/support.html Rotated Grid Full-Scene Antialiasing (RG FSAA) 32xFSAA dramatically reduces visual aliasing artifacts or "jaggies"...

  • Page 43

    Yes – GM and FM Midi Support, Direct Music and Down Loadable Soundset (4 Meg DLS Level 1 and 2 Support) Stereo (Left & Right channels) 1.5 W Worldwide QuickSpecs — Version 1 — 3.30.2009 HP Z400 Workstation Page 43...

  • Page 44

    Input cord: 5.91 ft (1800mm±35mm) L-channel cord: 3.28 ft (1000mm±35mm) USB cord: 5.91 ft (1800mm±35mm) HP Carbonite One pair of HP Thin USB Powered Speakers with attached audio signal and USB power cables for connecting to your PC HP Warranty documentation 96kHz sample rate 96kHz to analog 7:1 speaker output 8, 11.025, 16, 22.05, 24, 32, 44.1, 48 and 96kHz...

  • Page 45

    Microsoft® Windows® XP Professional SP2 Microsoft Windows XP Professional x64 Edition System RAM 512MB Operating System Windows Vista 32-bit and 64-bit version or Windows XP 32-bit or 64-bit version Worldwide QuickSpecs — Version 1 — 3.30.2009 HP Z400 Workstation Page 45...

  • Page 46

    Windows Vista will run on your computer. To download the tool, visit: upgradeadvisor. For Windows Vista system requirements, visit: http://www.windowsvista.com/ systemrequirements. Worldwide QuickSpecs — Version 1 — 3.30.2009 HP Z400 Workstation Windows Vista http://www.windowsvista.com/ Page 46...

  • Page 47

    Novell SLES 9 & SLE 10 No driver is required for this device. Native support is provided by the operating system. Worldwide QuickSpecs — Version 1 — 3.30.2009 HP Z400 Workstation Up to 12X Up to 8X Up to 8X...

  • Page 48

    Linux distributions. Customers may download LightScribe Linux drivers from: http://www.lightscribe.com/ downloadSection/linux/index.aspx Kit Contents HP SATA SuperMulti LightScribe DVD Writer drive, LightScribe software, Roxio Easy Media Creator software, Intervideo WinDVD Software, installation guide, and DVD+R media. 5.25-inch, half-height, tray-load Either horizontal or vertical SATA 5.9 x 1.7 x 8.0 in (15.0 x 4.4 x 20.3 cm)

  • Page 49

    No driver is required for this device. Native support is provided by the operating system. Kit Contents HP Blue Laser RW Drive, LightScribe software, Roxio Easy Media Creator software, Intervideo WinDVD Software, installation guide. As Blu-Ray is a new format containing new technologies, certain disc, digital connection, compatibility and/or performance issues may arise, and do not Worldwide QuickSpecs —...

  • Page 50

    QuickSpecs Technical Specifications - Optical and Removable Storage HP 22-in-1 Media Card Description Reader Mounting Orientation Interface Type Dimensions (WxHxD) Disc Formats DA - 13276 constitute defects in the product. Flawless playback on all systems is not guaranteed. In order for some Blu-Ray titles to play, they may require a DVI or HDMI digital connection and your display may require HDCP support.

  • Page 51

    Windows Vista Upgrade Advisor can help you determine which features of Windows Vista will run on your computer. To download the tool, visit: http://www.windowsvista.com/upgradeadvisor. For Windows Vista system requirements, visit: http://www.windowsvista.com/systemrequirements. Worldwide QuickSpecs — Version 1 — 3.30.2009 HP Z400 Workstation Page 51...

  • Page 52

    QuickSpecs Technical Specifications - Controller Cards HP IEEE 1394b FireWire Data Transfer Rate PCIe Card Devices Supported Bus Type Ports Internal Connectors System Requirements Temperature – Operating 50° to 131° F (10° to 55° C) Temperature – Storage–22° to 140° F (–30° to 60° C) Relative Humidity –...

  • Page 53

    ASF2.0, DASH 1.0 and DASH 1.1 profiles Broadcom NetXtreme Gigabit Ethernet Plus NIC, Broadcom NetXtreme Gigabit Ethernet Plus NIC USB Cable Assembly, CD, drivers, quick install guide, product warranty statement Worldwide QuickSpecs — Version 1 — 3.30.2009 HP Z400 Workstation Page 53...

  • Page 54

    Torvalds in the United States and other countries. Warranty - year(s) Protected by HP Services, including a 3 years parts, 3 years labor, and 3 years onsite service (3/3/3) standard warranty. Terms and conditions vary by country. Certain restrictions and exclusions apply.
