4. LOADING A DOCUMENT

4.3 Making the Document Hold-Down Unit Force Settings

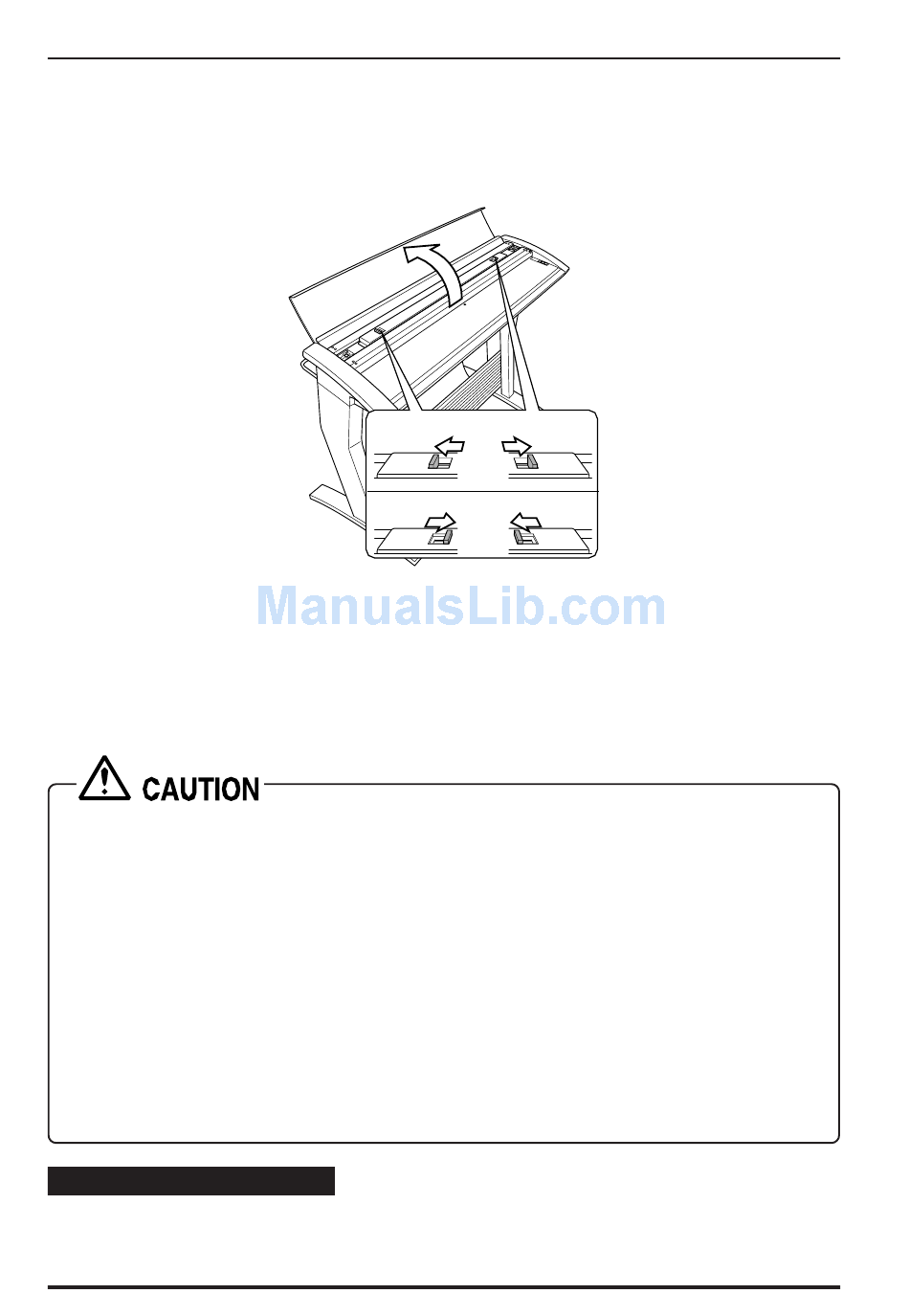

Changing the positions of the two levers at the top of the document hold-down unit enables
you to switch between two hold-down force settings.
High .............. Use this setting with:
• Plain paper with a thickness of 0.8 mm or higher
• Documents with creases or strongly curled documents where the creases
or curl affect the scanning quality
Standard ...... Use this setting with:
• Plain paper with a thickness less than 0.8 mm
• Delicate or limp documents
• Do not use the "High" setting with paper less than 0.8 mm thick or with limp documents,
as the document may become damaged or jammed in the scanner. The "High" setting
has a stronger hold-down force than that of the "Standard" setting, and may cause
damage to thin documents. In addition, because the precision accuracy also differs,
a distance correction operation may need to be performed when you switch from
one setting to the other.
• Use the carrier sheet when scanning film documents or similar.
• Always make sure that both levers are either set to the inside or the outside. If one
is set to the inside and the other to the outside, the scanning quality will be adversely
affected.
• Be sure to use the "Standard" setting with photographs or other documents that have
a glossy surface. If you use the "High" setting, the document may stick to the scanner
glass and adversely affect the scanning quality.
Distance Correction Method
Distance Correction is performed using the Scanning Master 21+ software. Select Adjust
Scanner from the Tools Menu to correct the distance as appropriate for the type of document.
4 – 4
High
Standard
CS2000
