2. PREPARATION

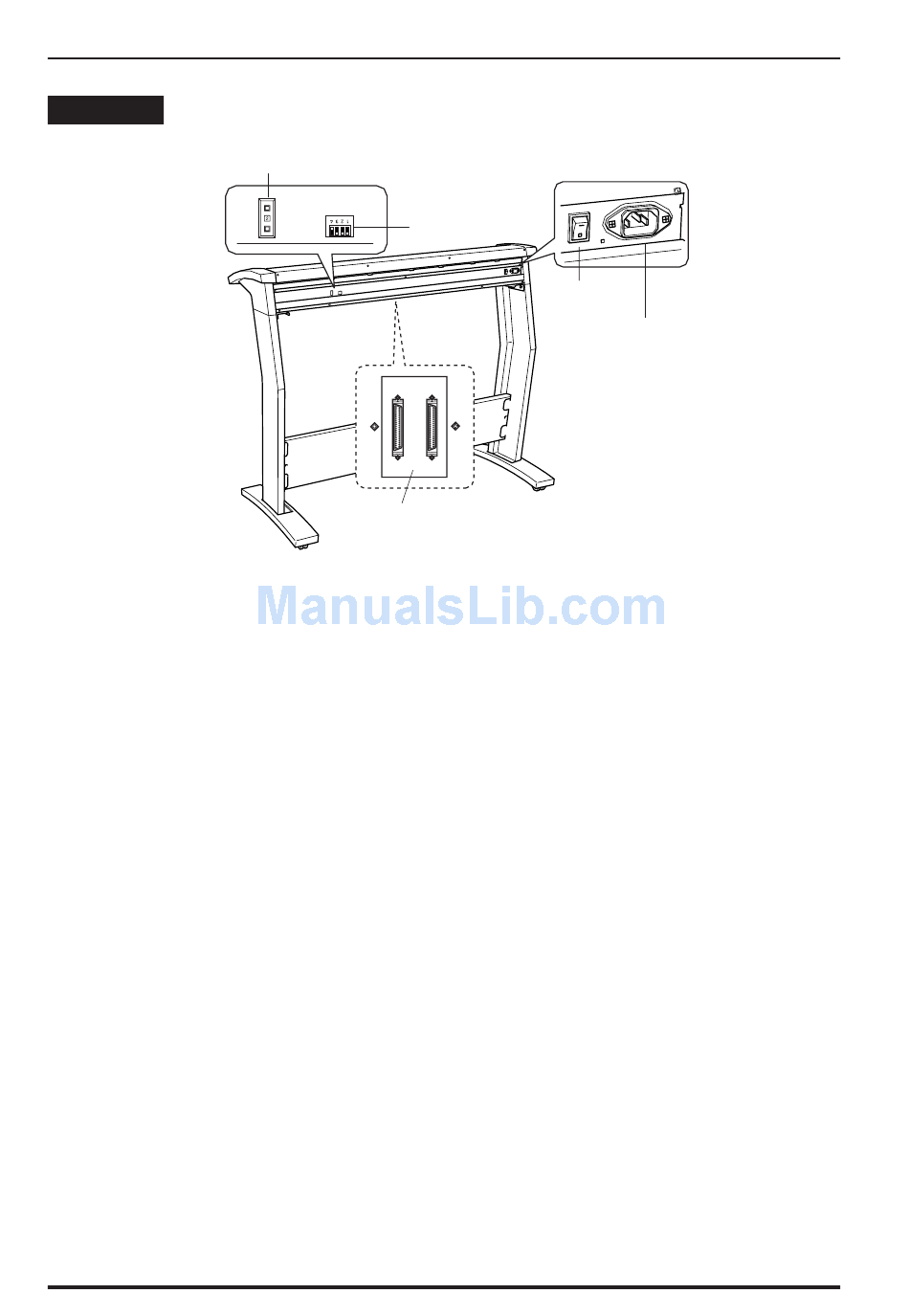

Rear View
SCSI-ID switches
DIP switch
Power switch
AC line inlet
SCSI connectors
Power switch
Controls the on/off status of the power supply to the scanner.
AC line inlet
Connect the power cord's female plug here.
SCSI-ID switches
Used to specify the ID numbers of the SCSI interfaces.
DIP switch
Used to set the scanner's functions.
SCSI connectors
Used to connect SCSI interface cables. The two connectors are connected in parallel inside
the scanner.
