2. PREPARATION

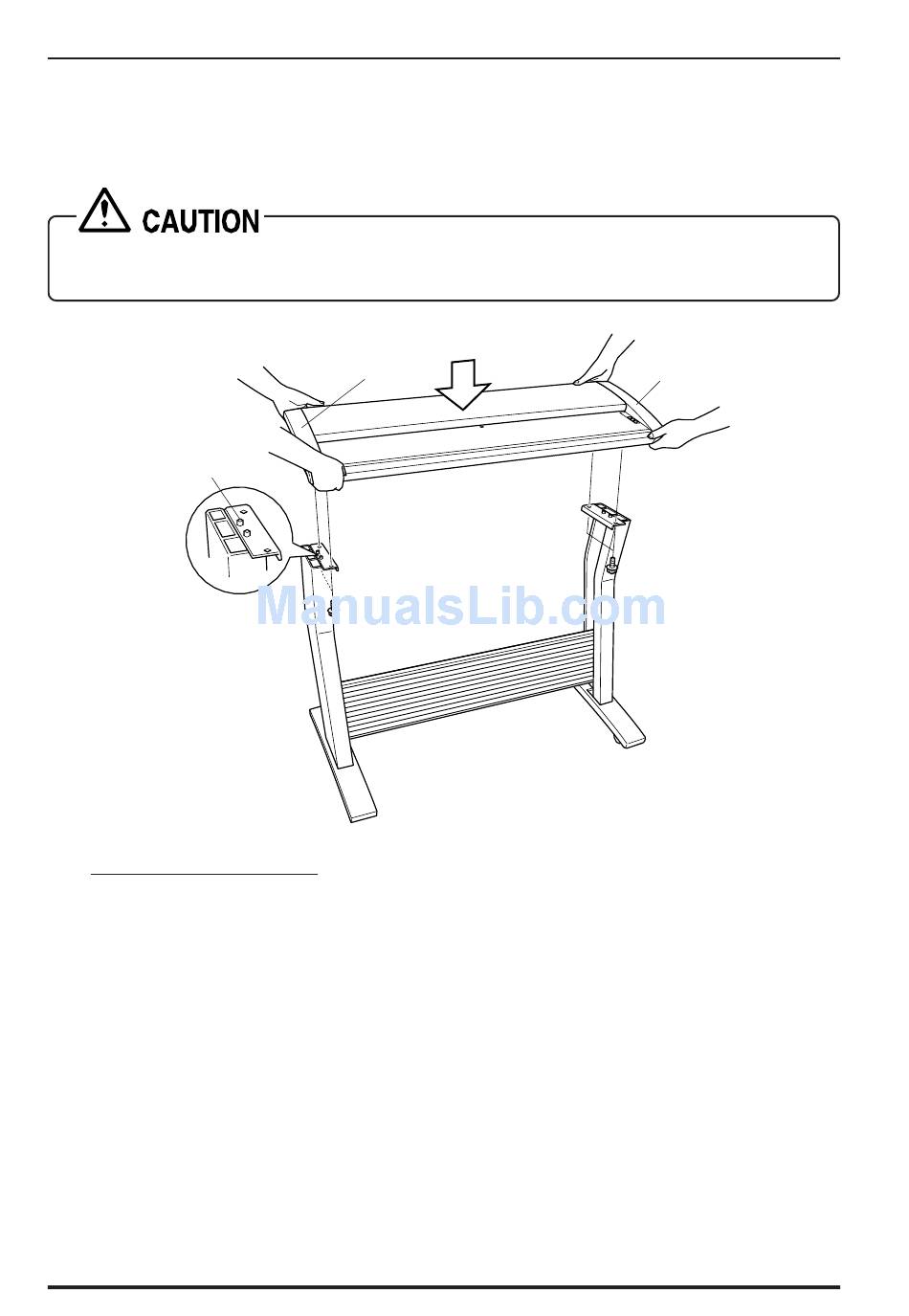

(2) Hold the scanner unit by the side covers on both sides, and mount the scanner so
that the positioning pins on the stand align with the positioning holes on the underside
of the scanner. Secure using the four bolts.
Holding the scanner by the rear part of the top cover may cause damage to the scanner
or to the person doing the installation. Always hold the scanner by the side covers.
Positioning pin
(3) Fully tighten the four bolts on the center bar to secure the side stays (see the diagram
for step (1)).
(4) Before beginning scanner operation, be sure to remove the plastic sheet from the bottom
of the document hold-down unit. Please refer to Section 5.1, "Removing and Mounting
the Document Hold-Down Unit" of this manual for the removal and mounting procedures.
2 – 2
Side cover
Side cover
CS2000
