3. PREPARING TO OPERATE THE SCANNER

3.3 Connecting the SCSI Cable

Obtain a SCSI interface cable (optional) that is compatible with the computer to be connected.
Compatible Cables
The cable must have half-pitch pin-type 50-pin connectors.
To connect multiple SCSI devices in a daisy-chain
must be no longer than three meters.
Either the Graphtec SC0006 or SC0006 2M model can be used (depending on the
shape of the connector on the computer's SCSI interface board).
* Daisy-chain: A method for connecting peripheral devices in a ring arrangement
The use of an incompatible cable may cause the scanner to malfunction or damage
the interface.
If the cable comes into contact with the document, use the cable clamp provided as
a standard accessory to fasten the cable to the underside of the scanner.
Connection Procedure

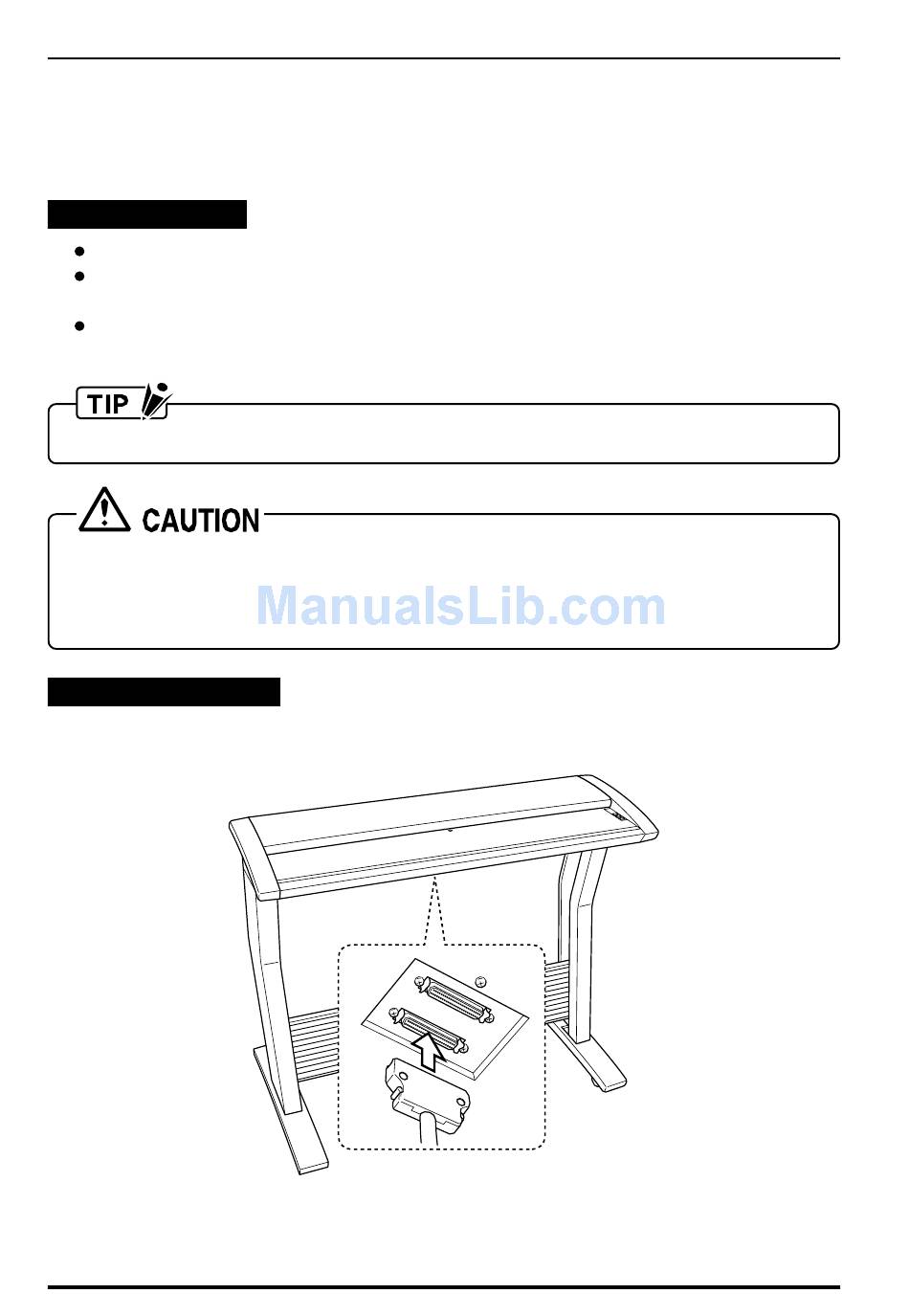

(1) Insert one end of the SCSI cable into one of the two SCSI connectors on the scanner's
rear panel.
* Firmly insert the cable's connector into the scanner's SCSI connector until it locks into place.
3 – 4
* arrangement, the total cable length
CS2000
