Getting Started

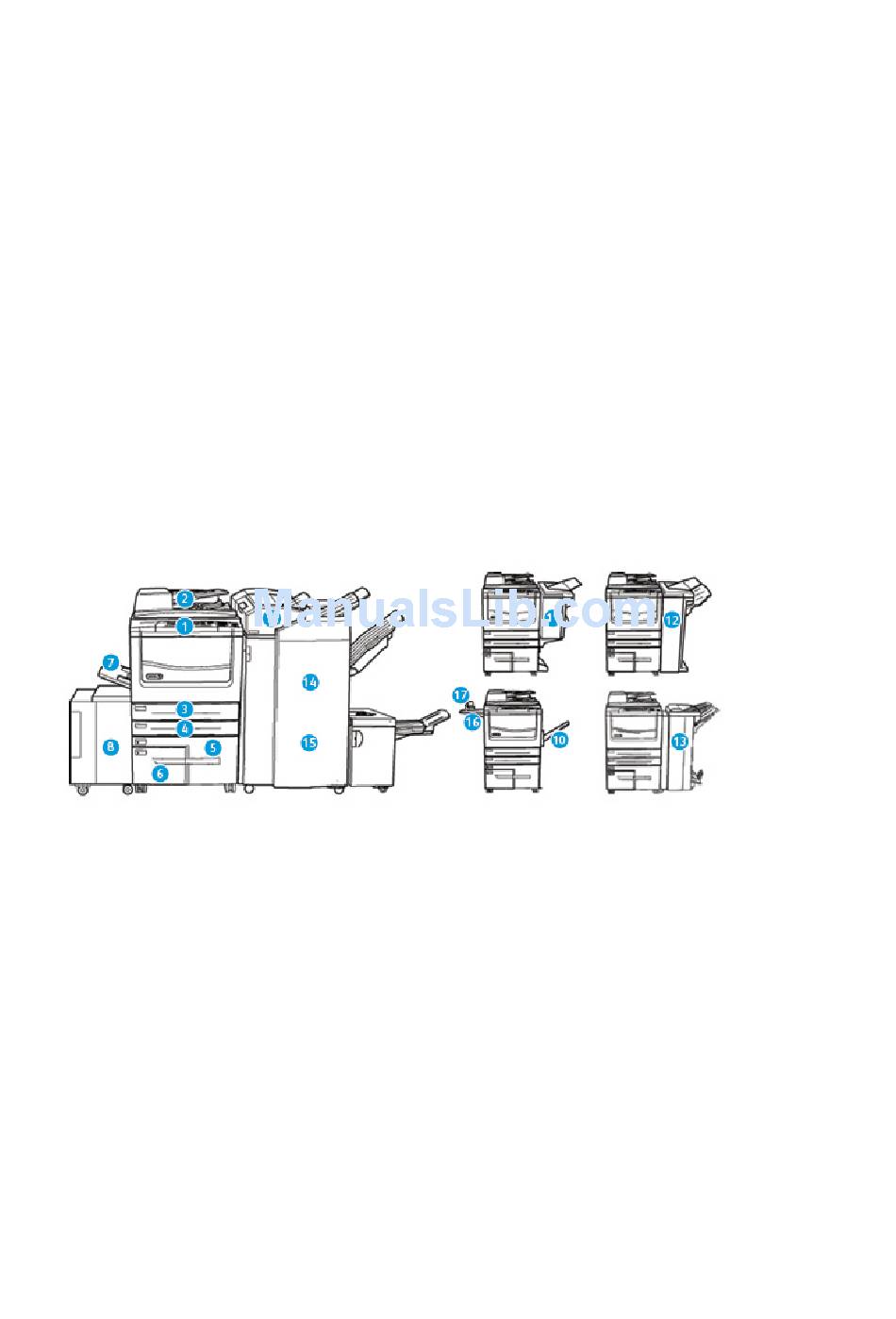

Identifying the Parts of Your Device

Your new device is not simply a conventional copier, it is a digital device capable of copying, faxing,
printing and scanning, dependent on your model and configuration.
All features and functions described within the User Guide relate to a fully configured WorkCentre and
may not be available on your device. If you require further information on any of the optional
components, or information on any of the other device configurations please contact your local Xerox
representative.
There are several configurations available which provide either 45, 55, 65, 75 or 90 copies or prints a
minute. All configurations are fully upgradable so as to meet any future requirements you may have.
Please contact your local Xerox representative for further information.
1.
Control Panel: Touch Screen and Numeric Keypad.
2.
Document Feeder and Document Glass: Used for scanning single or multiple documents. The
document glass can be used for scanning single, bound, custom size or damaged documents.
3.
Paper Tray 1: This tray is standard on all models. The tray is fully adjustable and can be used for
media sizes A5 LEF (5.5 x 8.5" LEF) to A3 (11 x 17").
4.
Paper Tray 2: This tray is standard on all models. The tray is fully adjustable and can be used for
media sizes A5 LEF (5.5 x 8.5" LEF) to A3 (11 x 17").
5.
Paper Tray 3: This tray is standard on all models. The tray can be used for media size A4 LEF (8.5 x
11" LEF).
6.
Paper Tray 4: This tray is standard on all models. The tray can be used for media size A4 LEF (8.5 x
11" LEF).
7.
Tray 5 (Bypass Tray): Used for non-standard printing media from A6 SEF (2.8 x 4.3" SEF) to A3 (11
x 17").
®
WorkCentre
5845/5855/5865/5875/5890
Getting Started Guide
2
19
