Chapter 4 Designing Labels with LDS

4.6 Label Format Fields

The Label Format Fields are used to define the characteristics, placement and
representation of the corresponding text data of the individual fields. A format field is
broken down into many different parameters. It is not necessary to enter values for all of the
parameters (default value will be used if a parameter is left blank) but each parameter must
be separated with the comma delimiter (","). A carriage return must follow each format field
for proper operation to occur. The values entered must be positive integers for all of the
parameters of the format field.
This is a list of the first label format field element mnemonics for the sample label in Figure
4-2:
TSN, XB, YB, CC, TCI, CGN, FO, FJ, CMX, CMY, CS, TSP, , , AN
1, 640, 650, 8, 1, 5, 0, 4, 2, 2, 1, 1, , , 0
Feed Direction
4" PRINT HEAD
Microcom
Corporation
YB
Thermal Printing Solutions
012345
XB
X beginning
This is the
origin; 1,1
Y beginning

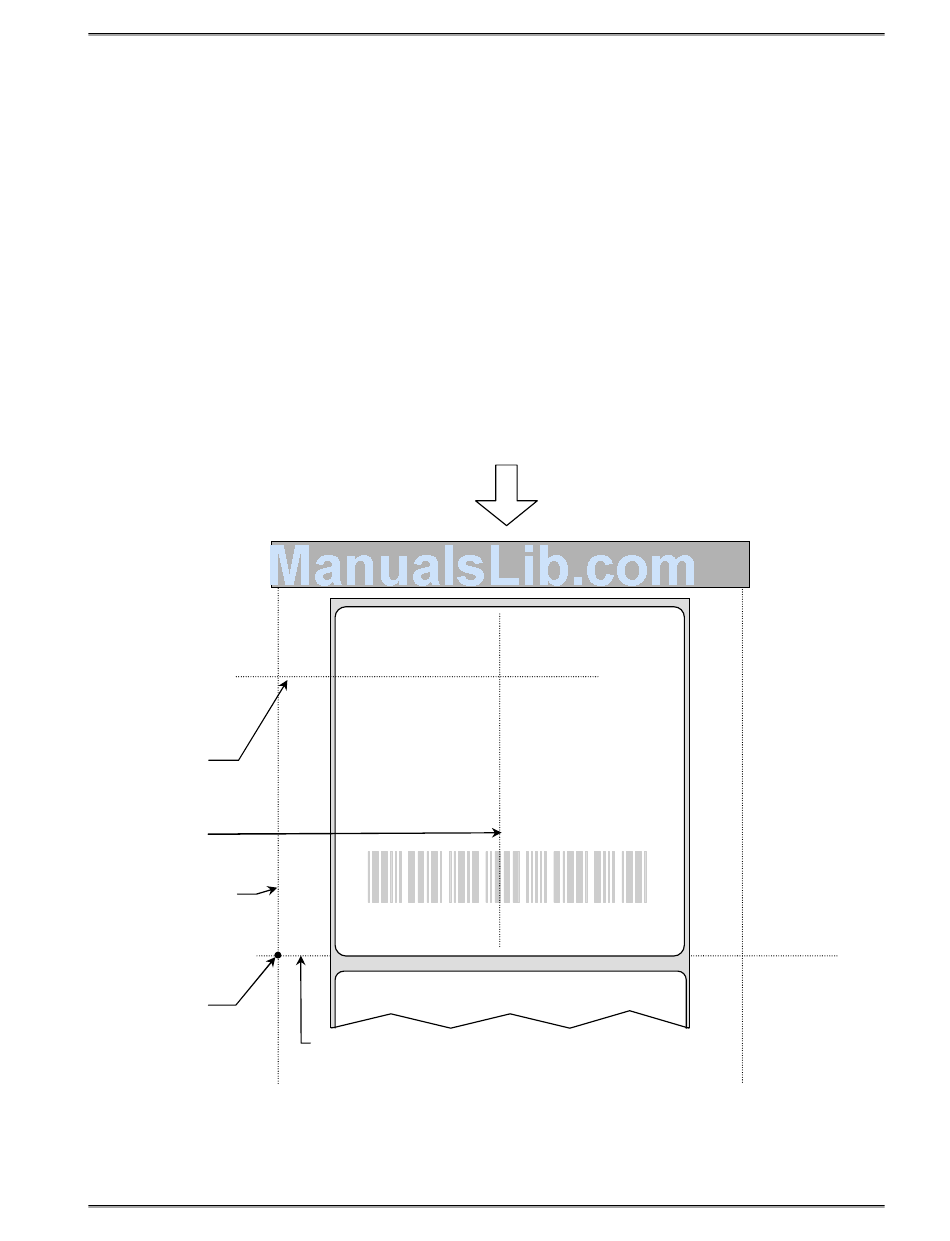

Figure 4-4 Label Format Field Elements
