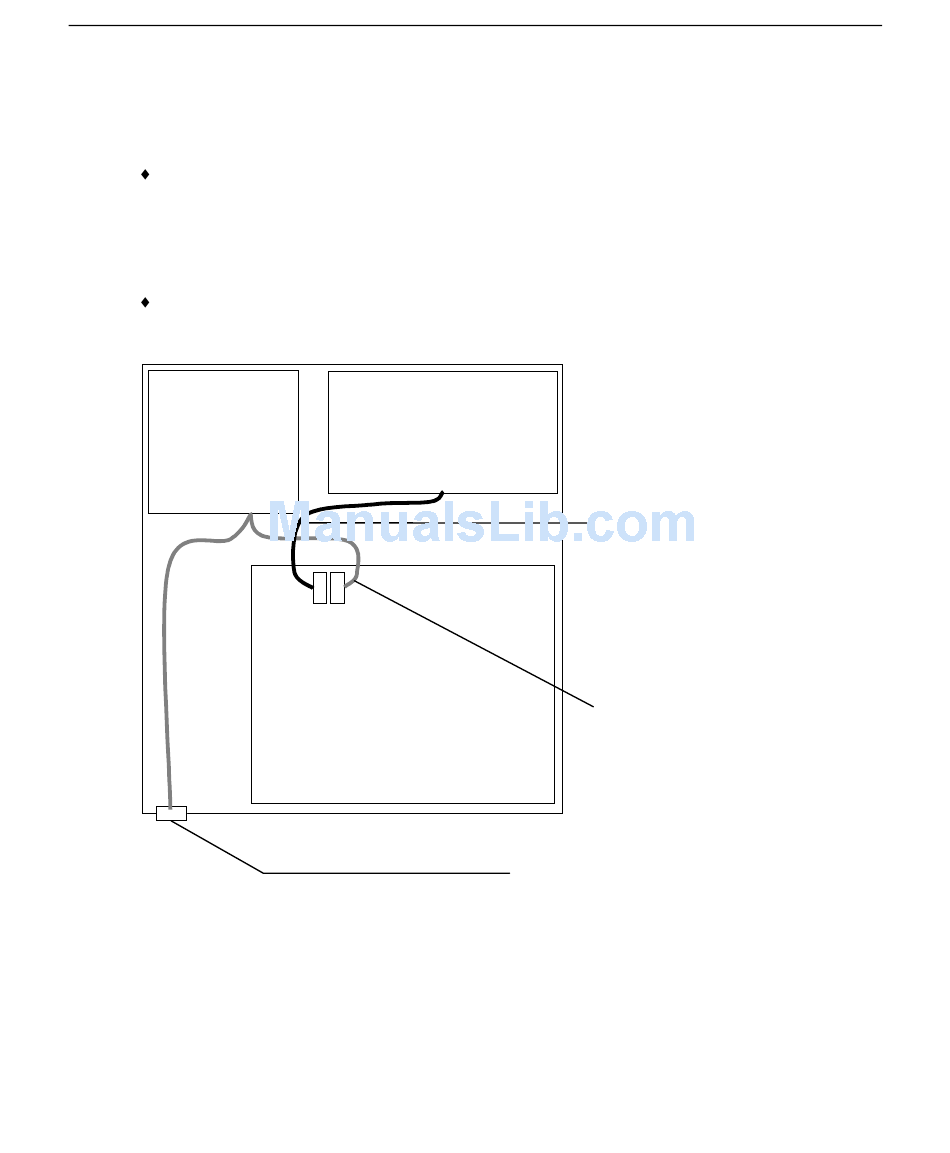

SCSI Cabling
SCSI cabling in the system is as follows:
A SCSI cable connects Channel A of the on-board SCSI controller to SCSI devices in the
peripheral device bay and to the SCSI port on the back of the base unit.
WARNING
For continued protection against fire and energy hazards, do not connect an
external SCSI port to SCSI Channel B. Connect an external SCSI port only to
SCSI Channel A.
A SCSI cable connects Channel B of the on-board SCSI controller to SCSI disk drives in the
disk drive cage.
Peripheral Bay
Disk Drive Cage
System Board
SCSI port
Cable connects Channel B to SCSI
disk drives in the disk drive cage
Cable connects Channel A to SCSI
devices in the peripheral device bay
and to the SCSI port on the back of
the base unit
77
