Processor Module

The system board contains sockets for two processor modules. Each processor module is secured
to the system board with retention clips.
To replace a processor module:
WARNING The system is always on when connected to AC power. Before performing this
task, disconnect the system's power cord from its AC power outlet.
1. Pull the locking tabs on the retention clips outward, and slide the processor module out of the
retention clips and its slot.
2. Remove the new processor from its antistatic package, and align the processor module over
the retention clips and the slot. The processor module is keyed and fits only one way.
3. Press the processor module down until it seats in the slot and the locking tabs on the retention
clips click into place.
For more information on processors and processor socket locations, see the System Board Manual.

Power Supply

WARNING There are no user-serviceable
parts in the power supply. Return
the power supply to the
manufacturer for repair.

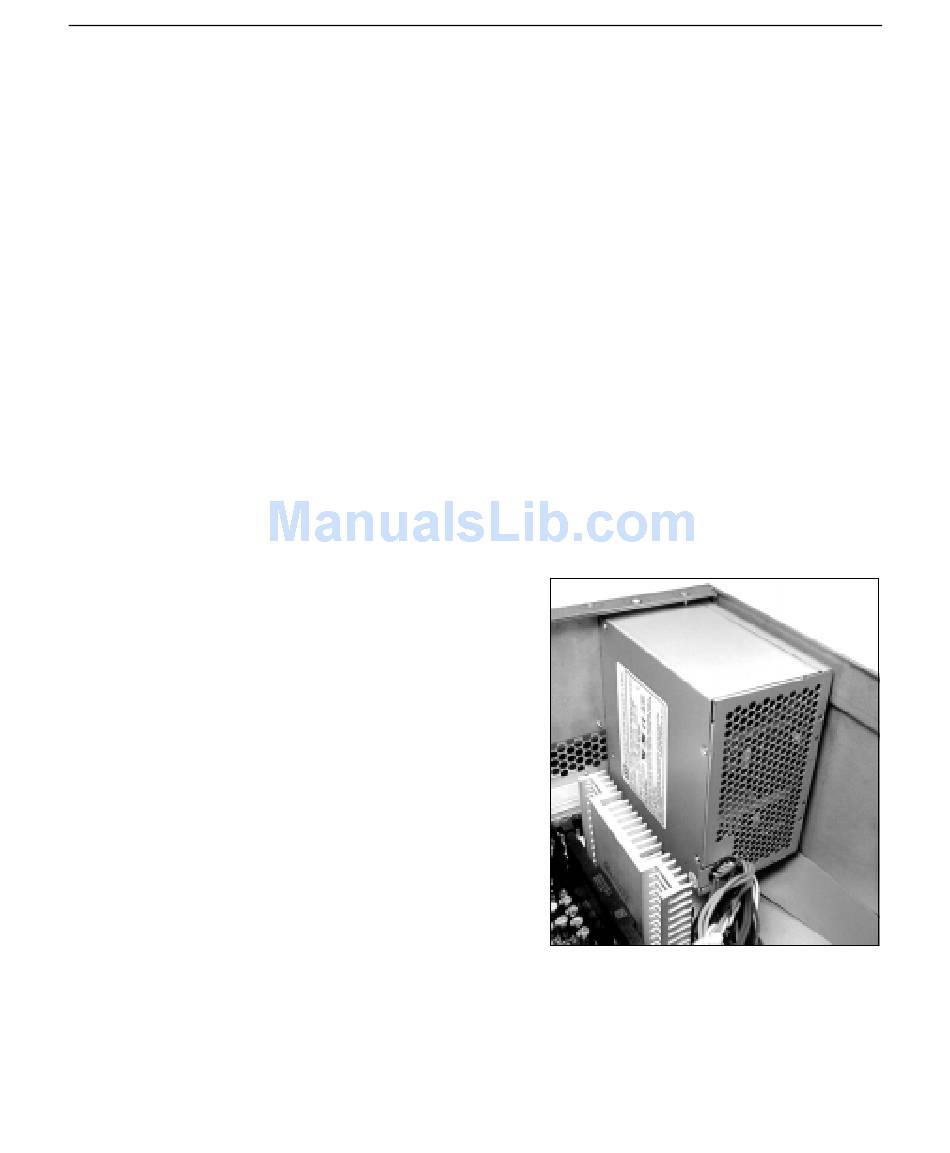

The power supply is located in the upper section
of, and is secured to the back of, the base unit base
unit.
To replace the power supply:
WARNING The system is always on when
connected to AC power. Before
performing this task, disconnect
the system's power cord from its
AC power outlet.
1. Remove the top cover. See Chapter 7,
"Gaining Access to System Components."
2. Disconnect the AC power cord from the AC power receptacle at the back of the base unit.
