Rail
(Each side)
13. Install the black screws through the handle brackets and the tinnerman nuts you installed
previously to secure the base unit to the front mounting rails of the equipment rack.

Connecting System Components

CAUTION If you do not use the cables delivered with the system, use shielded cables to
prevent excessive electromagnetic interference (EMI). The cables delivered with the
system reduce the amount of EMI produced by the system.
NOTE You should disconnect the cables from the base unit before extending it from the
rack, but if needed, you can extend the base unit without disconnecting the cables.
Be sure there is enough cable to allow the base unit to fully extend from the rack.
Use caution not to pinch the cables while extending or retracting the base unit.
After placing the system components and mounting them in a rack in use at your site, connect them
together using the included cables. The base unit and other system components have keyed and
labeled ports, to make it easier to connect them together with the right cables. If you cannot
connect a cable easily, ensure that you are aligning the cable connector correctly with the port.
The following figures illustrate the back of the base unit. Most ports on the back of the base unit
are colored and labeled with icons for easy reference. Locations of expansion cards and their ports
may differ from those shown.

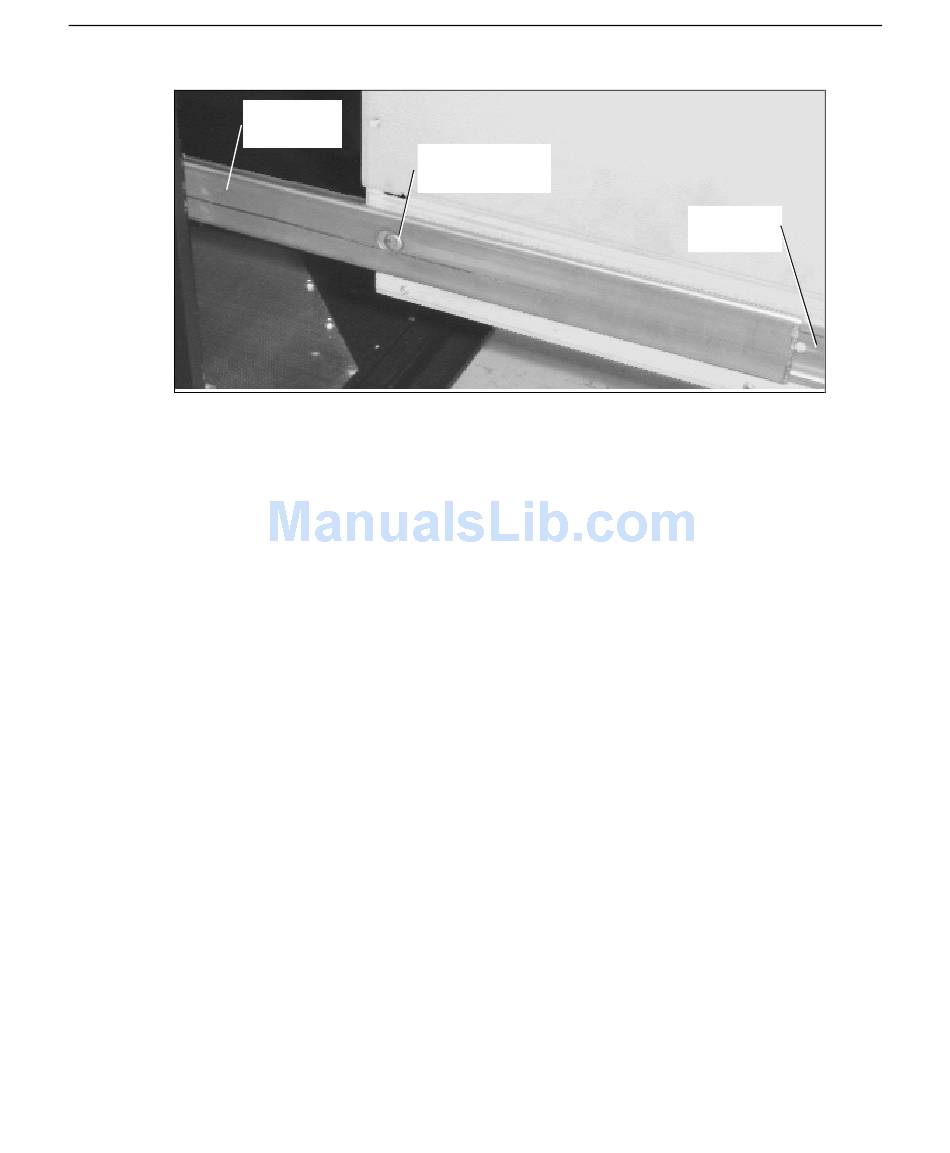

Locked Rail Tab
(Each side)
Guide
(Each side)
