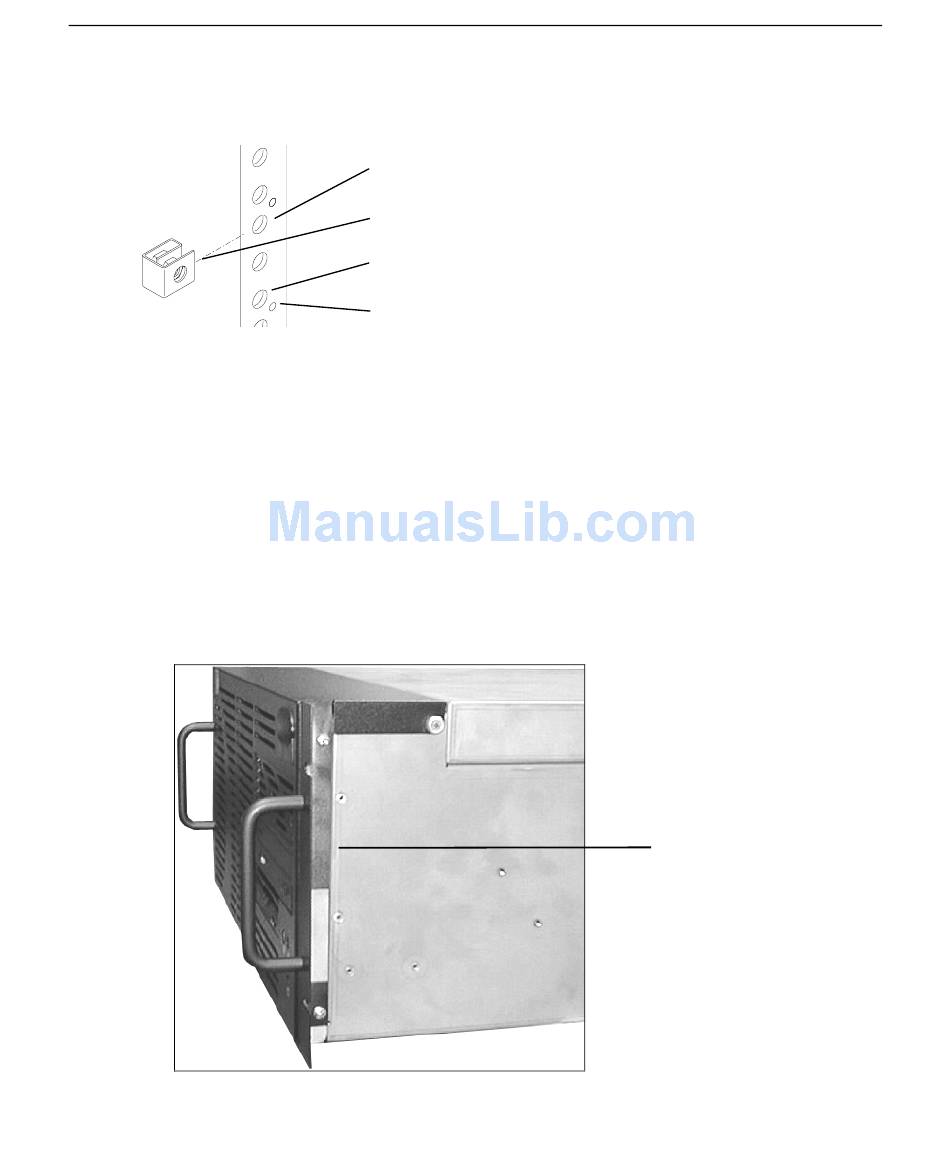

The following figure shows the typical installation of a tinnerman nut to mounting hole 3 of a
vertical unit.
Mounting the Base Unit in a Rack
The following procedure describes how to mount the system's base unit in a typical 19-inch
equipment rack. For detailed information on mounting equipment in a rack, see the documentation
for the equipment racks in use at your site.
WARNING
The base unit is heavy! To avoid personal injury or damage to equipment, use
two persons to mount the base unit in an equipment rack.
To mount the base unit in an equipment rack:
1.
Install the two handle brackets on the front of the base unit, using the screws provided.
Mounting Hole 3
Tinnerman Nut
Mounting Hole 1
Vertical Unit Marker
Handle Bracket
(One each side)
3
