Intergraph Zx10 5U System Manual

5u rack-mount
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

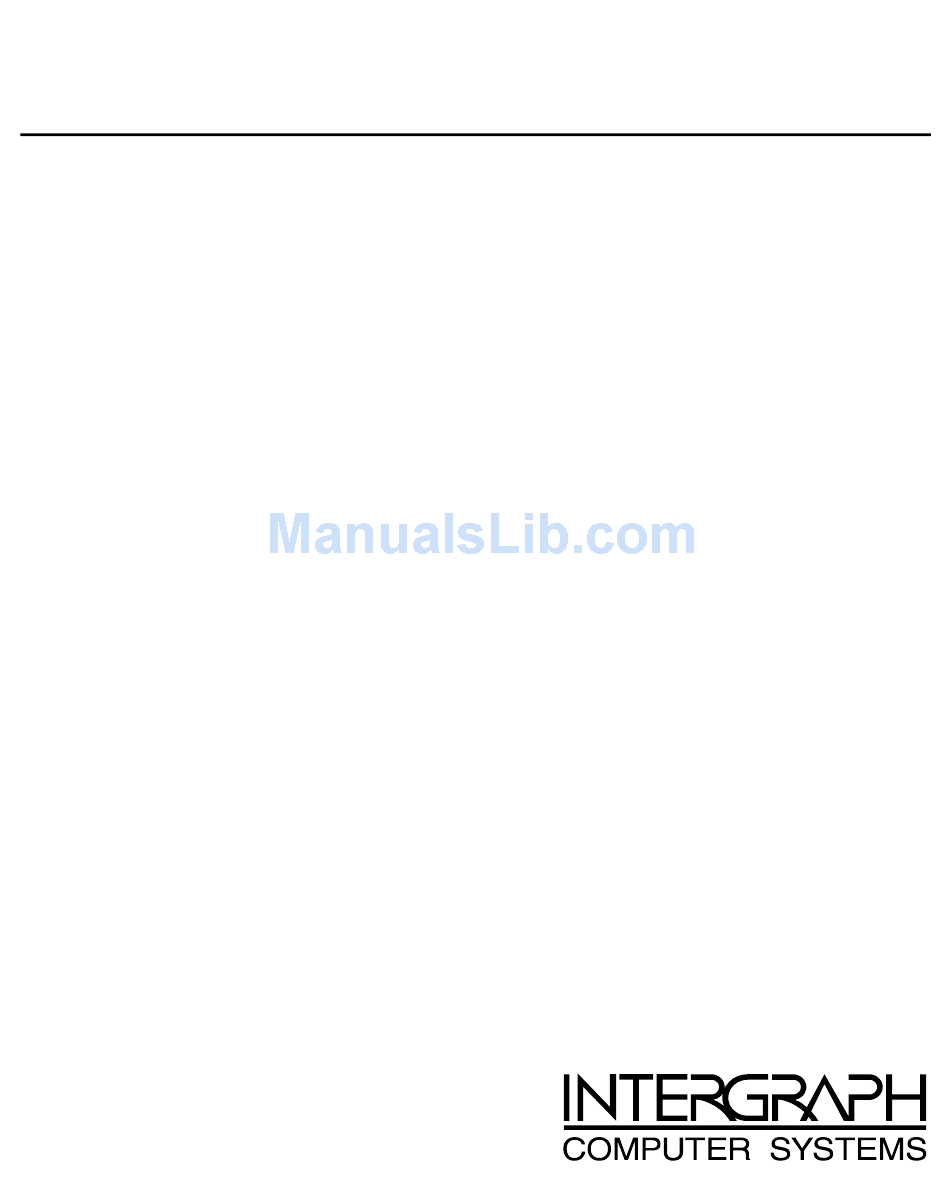

Zx
5U Rack-Mount
10
System Guide
May 2000
D1AA0034A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Zx10 5U and is the answer not in the manual?

Questions and answers

Related Manuals for Intergraph Zx10 5U

Summary of Contents for Intergraph Zx10 5U

  • Page 1 5U Rack-Mount System Guide May 2000 D1AA0034A...
  • Page 2 This document may not, in whole or in part, be reproduced in any form or by any means, or be used to make any derivative work, without written consent from Intergraph Computer Systems. Use, duplication, or disclosure by the United States Government is subject to restrictions as set forth in subdivision (c)(1)(ii) of the rights in technical data and computer software clause at DFARS 252.227-7013.
  • Page 3 Safety Notices This is a user-serviceable system. However, there are no user-serviceable parts in the power supply. Please return the power supply to the manufacturer for repair. Service and upgrade tasks should be performed by users who can follow instructions in a manual to service equipment, and can do so without harm to themselves or damage to the equipment.

  • Page 5: Table Of Contents

    Contents Preface ............................ix About This Document........................ix Document Conventions........................ix More Information ..........................x Customer Support ..........................x 1 Setting Up the Hardware ......................1 Unpacking the System ........................1 Placing System Components......................1 Before You Begin..........................2 Understanding Vertical Units ......................2 Mounting the Base Unit in a Rack ....................
  • Page 6 4 Operating the System ........................ 25 Controlling System Power ......................25 Reading System LEDs ........................26 Using Automatic Shutdown ......................26 Starting and Stopping the Operating System .................. 27 Observing Operating Precautions ....................28 Using the Keyboard ........................28 Using the Mouse ..........................30 Using the Floppy Disk Drive ......................
  • Page 7 Adding External SCSI Peripheral Devices ..................52 Choosing SCSI Cables ..................... 52 Choosing SCSI IDs ......................53 Terminating SCSI Devices ....................54 Connecting SCSI Devices ....................54 Changing SCSI Controller or Device Settings..............54 Adding Internal Peripheral Devices....................55 Adding Memory..........................56 Upgrading Processors ........................
  • Page 8 viii...

  • Page 9: Preface

    Preface The System Guide describes how to set up and configure your Intergraph Computer Systems Zx 5U rack-mount system. The System Guide also provides information on operating, servicing, and upgrading your Zx 5U system. About This Document The System Guide is organized as follows: Chapter 1, “Setting Up the Hardware,”...

  • Page 10: More Information

    Customer Support Intergraph Computer Systems hardware has a factory warranty ranging from 30 days to three years. A detailed warranty description is available on the World Wide Web. You can also take advantage of other available hardware support services.
  • Page 11 In the United States, call 1-800-633-7248 between the hours of 7:00 a.m. and 7:00 p.m. Central Time, Monday through Friday (except holidays). Outside the United States, contact your local Intergraph Computer Systems subsidiary or distributor. Have the following information available when you call: Your service number, which identifies your site to Intergraph Computer Systems.

  • Page 13: Setting Up The Hardware

    Monitor, power cord, and video cable (if purchased) If any of these items were not delivered, call Intergraph Computer Systems at 1-800-633-7248. Save the packaging materials. If you need to return equipment for repair, it must be in its original packaging for you to get warranty service.

  • Page 14: Before You Begin

    Before You Begin Before mounting the base unit in an equipment rack in use at your site, prevent the rack from moving by engaging its stabilizers. If the rack is not equipped with stabilizers, refer to the rack documentation for stabilizing instructions. Observe the following safety precautions when mounting the base unit in a rack in use at your site or when using the rack-mounted system: Extend only one slide rail set at a time.

  • Page 15: Mounting The Base Unit In A Rack

    The following figure shows the typical installation of a tinnerman nut to mounting hole 3 of a vertical unit. Mounting Hole 3 Tinnerman Nut Mounting Hole 1 Vertical Unit Marker Mounting the Base Unit in a Rack The following procedure describes how to mount the system’s base unit in a typical 19-inch equipment rack.
  • Page 16 Remove the guide from each of the two rails. The guide is the innermost-sliding piece of the rails, and has a flexible tab at one end. Attach a guide to each side of the base unit using the flat-head screws provided, making sure the flexible tab on the guide is toward the back of the base unit.
  • Page 17 Use the flat-head screws and bar nuts to secure the front teeth on both rails to the front mounting rails of the equipment rack. With the flat side of each bar nut facing the screws, loosely install two flat-head screws to each bar nut, through the fifth and sixth mounting holes from the bottom of the 5U space.
  • Page 18 Use the button-head screws and bar nuts provided to secure the back rail teeth to the back mounting rails of the equipment rack. With the flat side of each bar nut facing the screws, loosely install two button-head screws to the bar nut, through the fifth and sixth mounting holes from the bottom of the 5U space.

  • Page 19: Connecting System Components

    Rail (Each side) Locked Rail Tab (Each side) Guide (Each side) 13. Install the black screws through the handle brackets and the tinnerman nuts you installed previously to secure the base unit to the front mounting rails of the equipment rack. Connecting System Components CAUTION If you do not use the cables delivered with the system, use shielded cables to...
  • Page 20 Input/Output SCSI Port Video Out AC Voltage (I/O) Panel (Typical) (Blue) Selection Switch (See below) AC Power Receptacle Parallel (LPT) Ethernet Network MIDI/Game (Burgundy) (Gold) Mouse (Green) Microphone Keyboard (Pink) (Purple) Audio Line In (Light Blue) Universal Serial Bus (USB) Serial (COM 1) Serial (COM 2) Audio Line Out...

  • Page 21: Locating Expansion Cards

    To connect the system components: Connect a video cable from the monitor to the video out port on the graphics controller card. See the graphics controller documentation for more information. Connect cables from the keyboard and the mouse to their ports. Connect a cable from your site’s Ethernet network to the Ethernet port.

  • Page 22: Connecting External Scsi Devices

    For information on installing or connecting to expansion cards, see Chapter 8, “Upgrading the System,” and the expansion card documentation delivered with the system. Connecting External SCSI Devices The system has a dual-channel low-voltage differential (LVD) SCSI controller integrated on the system board. Depending on your system configuration, you can connect external Ultra, Ultra2, or Ultra3 SCSI devices to this controller through the SCSI port on the back of the base...

  • Page 23: Connecting To Ac Power

    Turn on power to all connected SCSI peripheral devices, and then start the system. 10. If necessary, install software drivers and configure the peripheral devices according to the vendor’s instructions. See Chapter 8, “Upgrading the System,” for additional details on installing external SCSI peripheral devices.

  • Page 24: Starting The System

    Starting the System CAUTION If you start the system, and then turn it off before completing the instructions in Chapter 2, “Setting Up the Software,” you will have to reinstall the operating system and associated system software. See “What’s Next” for more information.

  • Page 25: Setting Up The Software

    Setting Up the Software This chapter describes how to set up the operating system and associated system software for your system. Preparing for Setup Your system’s primary hard disk drive was formatted and partitioned before shipment. In Explorer or My Computer, you can right-click a disk drive and click Properties to display the drive’s partition size and file system format.
  • Page 26 Get and record the following information: Your name, and the name of your company or organization: The Product Identification Number from Microsoft’s documentation, Certificate of Authenticity, or registration card: A user name for a user account: If the system is connected to a network, get and record the following information for your system from your network administrator: Computer name: Workgroup name (if the system will be part of...

  • Page 27: Going Through Setup

    If the system is connected to a network that uses the Transmission Control Protocol/Internet Protocol (TCP/IP), get and record the appropriate TCP/IP information for your system from your network administrator: Internet Protocol (IP) address: IP subnet mask: IP domain name for your network: IP address for your network’s default gateway: IP addresses for Domain Name System (DNS) servers, if any:...

  • Page 28: Finishing Software Setup

    The first time you start the system, it boots to a Microsoft End User License Agreement (EULA). After reading and accepting the terms of the agreement, follow the instructions to continue operating system Setup. Take the default settings provided by Setup, except as noted in the following text.

  • Page 29: Creating A Scsi Controller Driver Diskette

    Because of production timing, drivers for your system may have been revised after your system shipped from the factory. You should check Intergraph Computer Systems’ online services for the latest versions of your system’s drivers. If a later version of a driver is available, you can download it and install it on your system;...

  • Page 30: What's Next

    Because of production timing, the QFE software for your system may have been revised after your system shipped from the factory. You should check Intergraph Computer Systems’ online services for the latest version of the QFE software for your system. If a later version is available, you can download it and install it on your system;...

  • Page 31: Configuring The System

    Configuring the System This chapter describes how to configure basic components of your system for use. Configuring the Video Display The first time you start the system, your monitor displays a resolution of 1024 x 768. For the system to use the installed graphics controller at other display resolutions, you must configure the video display driver as described in this section.

  • Page 32: Changing The Default Video Display Driver

    Changing the Default Video Display Driver After configuring the video display and restarting the system, you may need to configure the system to use the installed video display driver by default. To change the default video display driver: Go to System in the operating system’s Control Panel. Under Startup/Shutdown, select the appropriate non-VGA option from the Startup list.

  • Page 33: Configuring System Audio

    Configuring System Audio The system has a PCI audio controller integrated on the system board. The required driver software was installed before shipment. If you connect a microphone and speakers to their ports on the I/O panel, you can use the audio mixer software to control the speaker volume, the microphone input level, and other system audio features.

  • Page 34: Configuring Peripheral Devices

    Configuring Peripheral Devices If you install additional peripheral devices in the system, you will have to install and configure the associated driver software. You may also have to install or configure any associated application software to use the devices. You can use the default backup tools provided with the operating system to run a tape drive. Go to Backup on the Administrative Tools program menu.

  • Page 35: Changing Virtual Memory Settings

    Changing Virtual Memory Settings If you have more than one hard disk drive, you may need to change size and location of your virtual memory page file. See operating system Help for more information. Consider the following before changing page file settings: The size of the page file.

  • Page 36: Creating Or Updating An Emergency Repair Disk

    To run the SCSI Configuration Utility: Press when prompted during system boot. CTRL To get online help in the SCSI Configuration Utility: Press 1 to see information on the item currently highlighted on screen. Creating or Updating an Emergency Repair Disk If you did not create an Emergency Repair Disk during Setup, you should do so after completing Setup and configuring the system.

  • Page 37: Operating The System

    Operating the System This chapter contains important, basic information on operating your system. Controlling System Power CAUTION The AC power cord for this unit is the service disconnect. To remove AC power from the system, you must unplug the system power cord from its AC power outlet.

  • Page 38: Reading System Leds

    Reading System LEDs The LEDs on the faceplate describe the current operational state of the system. If the Power LED is… Then… Unlit Auxiliary power is off (fans are not running) or there is a system failure (fans are running) Amber Auxiliary power is on;...

  • Page 39: Starting And Stopping The Operating System

    The Automatic System Shutdown dialog contains the following options: Options Description Shutdown the Computer Performs an orderly shutdown of the operating system. When complete, press the Power button for 4 seconds to power down the system, or restart the operating system. Power Down the Computer Performs an orderly shutdown of the operating system, then powers down the system.

  • Page 40: Observing Operating Precautions

    If appropriate, type a domain name into the appropriate field. Select OK or press ENTER To log off, restart, shut down, or power down the system: Press the Power button momentarily (less than 1 second). Automatic Shutdown runs and the shutdown timer begins counting down.
  • Page 41 Numeric Function Keypad Keys Windows Key Application Arrow Keys Windows Key Some keyboard keys have special functions: Function Usually assigned to an application-specific function; often used to exit. Depending on the application in use, prints the displayed screen to a printer. PRINT SCRN Prevents the screen from scrolling.

  • Page 42: Using The Mouse

    Using the Mouse The system’s PS/2-compatible mouse is a tracking device that controls the movement and positioning of the pointer (or cursor) displayed on the screen in a graphical display environment. Wheel Buttons To use the mouse, ensure it is connected to the system. Place the mouse on a clean, flat surface, such as a desktop or a mouse pad.

  • Page 43: Using The Floppy Disk Drive

    Using the Floppy Disk Drive The system’s floppy disk drive occupies a 3.5-inch external peripheral device bay, and is accessible through a 3.5-inch slot on the front of the base unit. The drive accepts standard 3.5- inch 720 KB and 1.44 MB diskettes.

  • Page 44: Using System Management Software

    To use the CD-ROM drive: To insert a CD, press the eject button to extend the tray. Place the disc, printed side up, in the tray and press the eject button again to retract the tray. To remove a CD, press the eject button, and remove the disc after the tray extends. Then press the eject button again to retract the tray.

  • Page 45: Using Hardware Security Features

    Using Hardware Security Features A hasp for locking the top panel is available on the back of the base unit. Cleaning System Components Follow these guidelines for cleaning system components: Item How To Clean Exterior Surfaces Wipe exterior surfaces of the base unit and the monitor screen with a soft cloth lightly moistened with a mild cleaning agent.

  • Page 47: Troubleshooting Operational Problems

    If you cannot resolve the problem or if the instructions in the following sections direct you to do so, contact Intergraph Computer Systems for further help. See the Preface of this document for information about contacting Intergraph Computer Systems. Refer to the documentation delivered with various peripheral devices for troubleshooting help if there are problems these devices.

  • Page 48: System Boot

    Reason Solution Power supply is faulty. Replace power supply. System Boot Does not boot from the expected boot device Reason Solution Boot sequence is not correctly set. Change the boot sequence. See the System Board Manual for information on running BIOS Setup and changing the boot sequence.
  • Page 49 Message Explanation and Solution CMOS Shutdown Register Read/Write The shutdown register for CMOS RAM failed. Call Error the Customer Response Center. Cache Error/External Cache Bad The external cache is faulty. Call the Customer Response Center. Does not boot from drive A (floppy disk drive) or other expected boot device Reason Solution Boot disk is corrupt or does not have the...

  • Page 50: Video

    Total amount of memory does not display Reason Solution One or more memory modules are faulty. Identify faulty memory modules by swapping modules until the faulty one is found. Memory modules are not properly seated Reseat memory modules in their sockets. in their sockets.

  • Page 51: Network

    Network Cannot connect to other systems on LAN Reason Solution Ethernet cable is disconnected. Verify the Ethernet cable is connected. If the cable is properly connected, notify your network administrator. Networking software is configured Review the network settings in the operating system, incorrectly.
  • Page 52 System loses BIOS configuration information Reason Solution Lithium battery voltage on the system Replace the lithium battery on the system board. board is low. The system also displays a "battery voltage low" message during the system boot. DMA bus timeout message displays Reason Solution Failure in DMA bus logic has occurred.

  • Page 53: Reinstalling The Operating System

    CDs provided with these devices. See the documentation provided with these devices for installation instructions. You can check Intergraph Computer Systems’ online services for the latest versions of your system’s drivers. If a later version of a driver is available, you can download it and install it on...

  • Page 54: Installing The Operating System

    document for information on the online services, and see the file delivered with a driver README for installation instructions. Installing the Operating System To install the operating system, follow the instructions in the operating system documentation. See the following text for information you may need to complete operating system Setup. Do the following during installation of the operating system: When prompted for the location of most drivers, put the system’s driver CD is in the system’s CD-ROM drive, and then direct Setup to find the driver on the CD.

  • Page 55: Updating The Operating System

    README See the Preface of this document for information on Intergraph Computer Systems’ online services. Updating the Operating System Microsoft Service Packs and Service Releases contain the latest improvements and system fixes for Microsoft operating systems.

  • Page 57: Gaining Access To System Components

    Gaining Access to System Components This chapter describes how to gain access to major internal components so you can upgrade and service your system. WARNING This is a user-serviceable system. Service and upgrade tasks should be performed by users who can follow instructions in a manual to service equipment, and can do so without harm to themselves or damage to the equipment.

  • Page 58: Access Points

    Access Points The following figures show the access points for major internal components. Top Cover Front Panel Removing and Replacing the Top Cover WARNING The system is always on when connected to AC power. Before opening the system, disconnect the system’s power cord from its AC power outlet. WARNING Close the base unit before operating the system.

  • Page 59: Opening And Closing The Front Panel

    To close the base unit: Replace the top cover. Secure the top cover to the base unit with the screws removed previously. Slide the base unit into the equipment rack. Secure the base unit handle brackets to the equipment rack mounting rails with the screws removed previously.

  • Page 60: Internal System Components

    Internal System Components The following figure shows the system’s major internal components. Peripheral Device Bay (System Disk Drive, Disk Drive Cage CD-ROM Drive, Floppy Disk Drive) Processor (One or two) Power Supply Fan Cage (Two fans) I/O Connectors System Board (On I/O panel) Expansion Card (Typical, in slot on...

  • Page 61: Upgrading The System

    Upgrading the System This chapter describes how to upgrade your system by adding or replacing system components. WARNING This is a user-serviceable system. Service and upgrade tasks should be performed by users who can follow instructions in a manual to service equipment, and can do so without harm to themselves or damage to the equipment.

  • Page 62: Identifying Expansion Card Slots

    Non-compliant PCI cards do not contain configuration registers that allow the system to automatically assign the necessary resources. These cards install in PCI slots, but you must configure the system’s BIOS to assign system resources before installing the card. Non-PnP ISA cards do not contain registers that define the resource information to the system during startup.

  • Page 63: Installing An Expansion Card

    Installing an Expansion Card See the documentation that came with the card for details on installation, configuration, cable connections, and operation. Retaining Screw Slot Connector Blanking Plate (Typical) (Typical) (Typical) To install an expansion card: WARNING The system is always on when connected to AC power. Before performing this task, disconnect the system’s power cord from its AC power outlet.

  • Page 64: Assigning System Resources

    Slide the expansion card carefully into the card guides. Ensure that the connectors on the board’s edge are aligned properly with the socket. Push the card into the socket firmly and evenly until it is fully seated. Secure the card to the card guide with a retaining screw (6-32 x 0.25 hex head). Attach any required cables to internal or external connectors.

  • Page 65: Choosing Scsi Ids

    SCSI Bus Single-Ended Bus Differential Bus LVD Bus Ultra (8 bits, 20 MB/sec) 4.9 ft / 1.5 m 39.4 ft / 12 m 39.4 ft / 12 m Wide Ultra (16 bits, 40 MB/sec) Not recommended Not specified 39.4 ft / 12 m Ultra2 (16 bits, 80 MB/sec) Not recommended Not specified...

  • Page 66: Terminating Scsi Devices

    Terminating SCSI Devices When connecting devices to the external SCSI port: Enable termination on the last external device on the SCSI cable chain. Use an active terminator. Disable termination on all other external devices on the SCSI cable chain. Connecting SCSI Devices To connect external SCSI devices: If the system is connected to AC power and operating, shut down the system and unplug the system power cord from its AC power outlet.

  • Page 67: Adding Internal Peripheral Devices

    If the SCSI device does not negotiate properly with the controller. If you exceed the recommended total cable length for connecting SCSI devices to the system. If you connect non-Ultra SCSI external devices to the system. For information on using the SCSI Configuration Utility, see Chapter 3, “Configuring the System.” Adding Internal Peripheral Devices A CD-ROM drive, a floppy disk drive, and the primary system disk drive are installed in the peripheral device bay at the front of the base unit.

  • Page 68: Adding Memory

    Have the vendor’s documentation available to follow instructions for setting the SCSI ID, enabling or disabling termination, installing device drivers when required, and configuring other device attributes. If you are installing an internal peripheral device that connects to an expansion card, see the vendor’s documentation for information on installing the expansion card and any required cables.

  • Page 69: Servicing The System

    Servicing the System This chapter describes how to replace the major components of your system. WARNING This is a user-serviceable system. Service and upgrade tasks should be performed by users who can follow instructions in a manual to service equipment, and can do so without harm to themselves or damage to the equipment.

  • Page 70: System Disk Drive

    To replace the top cover: Remove the top cover. See Chapter 7, “Gaining Access to System Components.” Install the new top cover. To replace the front panel: Open the front panel. See Chapter 7, “Gaining Access to System Components.” Remove the two shoulder screws at the bottom left and right corners of the front panel, and remove the front panel.

  • Page 71: Peripheral Bay Device

    To replace the system disk drive: WARNING The system is always on when connected to AC power. Before performing this task, disconnect the system’s power cord from its AC power outlet. WARNING Mishandling a removed disk drive can cause the heads to crash! Subsequent failures may not be noticeable for three to six months.
  • Page 72 Locking Plate Thumbscrew Locking Plate Loosen the thumbscrew on the locking plate. Lift and hold the locking plate. If adding a device to the open bay, pull the empty device tray out the front of the base unit. If removing or replacing a device, pull the device out the front of the base unit. 3.5-inch Mounting Bracket (One each side) 5.25-inch Mounting Guide...
  • Page 73 10. If removing or replacing a device, remove the mounting guides from the old device and secure them to the new device with the same screws. Make sure the guide with the notched side is on the left side of the device (as seen from the front). 11.

  • Page 74: Disk Drive Cage Device

    Disk Drive Cage Device Up to four 3.5-inch x 1.0-inch SCSI disk drives may be installed in the disk drive cage at the front of the base unit. To add, remove, or replace disk drives, you must first remove the disk drive cage. To add, remove, or replace a disk drive in the disk drive cage: WARNING The system is always on when connected to AC power.

  • Page 75: Expansion Card

    Disk Drive Screws (Two top and two bottom) If removing or replacing a disk drive, remove the screws securing the drive to the cage, and then remove the drive from the cage. If adding or replacing a disk drive, insert the drive in the cage and secure it with screws on both top and bottom.
  • Page 76 To avoid damaging an expansion card and voiding its warranty, take the following precautions: Handle the expansion card only by the edges. Do not touch the metallic finger contacts. Do not bend, twist, drop, or otherwise handle the expansion card carelessly. Do not expose the expansion card to moisture or extreme temperatures.

  • Page 77: Memory Module

    Remove the new card from its antistatic package and slide it into the socket from which you removed the old card. Push the new card into the socket until it is fully seated. Secure the new card to the card guide with the retaining screw (6-32 x 0.25 hex head) removed previously.

  • Page 78: Processor Bus Terminator

    Push gently straight down until the release tabs snap into place. Restart the system for the BIOS to detect the new memory. For more information on DIMMs, DIMM sockets, and system memory configurations, see the System Board Manual. Processor Bus Terminator On a system with only one processor, a processor bus terminator occupies the other processor slot on the system board.

  • Page 79: Processor Module

    Processor Module The system board contains sockets for two processor modules. Each processor module is secured to the system board with retention clips. To replace a processor module: WARNING The system is always on when connected to AC power. Before performing this task, disconnect the system’s power cord from its AC power outlet.
  • Page 80 Disconnect all power cables from all internal peripheral devices and the system board. Note the locations to which the power cables are connected: Cable Connects to P1 and P2 ATX power connectors on the system board P3 through P8 CD-ROM drive, disk drives, and other peripheral devices Floppy disk drive Remove and retain the screws securing the power supply and mounting plate to the back and top of the system.
  • Page 81 Remove and retain the screws securing the mounting plate to the power supply. Using the same screws, attach the mounting plate to the new power supply. Place the new power supply and mounting plate into the base unit, and secure it with the screws removed previously.

  • Page 82: Cooling Fans

    For more information: On controlling system power, see Chapter 4, “Operating the System.” On the power supply, see Chapter 10, “System Hardware and Specifications.” Cooling Fans A rear fan mounted behind the peripheral device bay and two front fans mounted behind the disk drive cage ensure proper airflow to cool system components in the base unit.
  • Page 83 Note the airflow direction of the fan and the position of the fan on the mounting plate (the side closest to the processors), and gently pull upward on the mounting plate until the mounting plate and fan clear the base unit. Remove and retain the screws attaching the fan to the mounting plate.

  • Page 84: System Board

    Route the power cable and connector of the new fan through the bottom of the fan cage, and lower the new fan into the cage. Replace the snap rivets removed previously to secure the new fan to the bulkhead. Connect the fan’s cable to its connector on the system board. Replace the top cover.

  • Page 85: Cmos/Clock Lithium Battery

    To install a new system board: WARNING The system is always on when connected to AC power. Before performing this task, disconnect the system’s power cord from its AC power outlet. Connect the power switch/LED cable to connector J24 before installing the new system board. Place the new system board into the base unit front edge first, and then lower the back edge into the base unit.

  • Page 86: Switches And Leds

    Switches and LEDs The power switch and the LEDs are mounted to the base unit behind the front panel. See the System Board Manual for connector and socket locations. To replace the power switch or LEDs: WARNING The system is always on when connected to AC power.

  • Page 87: 10 System Hardware And Specifications

    10 System Hardware and Specifications This chapter contains information about hardware and specifications for your system. This chapter does not contain detailed information on the system board. See the System Board Manual delivered with your system for detailed information on the system board and its components, BIOS, memory, slots and sockets, jumpers and connectors, and ports.

  • Page 88: Internal Peripheral Cabling

    Internal Peripheral Cabling The following sections show EIDE and SCSI cable routings and connections to internal peripheral devices, and depicts standard and optional cables used in the system. For detailed information and location of bus connectors on the system board, see the System Board Manual. CAUTION When handling cables, flex them as little as possible.

  • Page 89: Scsi Cabling

    SCSI Cabling SCSI cabling in the system is as follows: A SCSI cable connects Channel A of the on-board SCSI controller to SCSI devices in the peripheral device bay and to the SCSI port on the back of the base unit. WARNING For continued protection against fire and energy hazards, do not connect an external SCSI port to SCSI Channel B.

  • Page 90: Floppy Disk Drive Cable

    Floppy Disk Drive Cable Connector Connects To Floppy disk drive controller on system board Floppy disk drive EIDE Device Cables Connector Connects To EIDE connector on system board EIDE CD-ROM drive EIDE device (optional) SCSI Disk Drive Cage Cable Connector Connects To SCSI Channel B connector on system board SCSI disk drive in disk drive cage...

  • Page 91: Scsi Peripheral Bay/External Port Cable

    SCSI Peripheral Bay/External Port Cable Connector Connects To SCSI Channel A connector on system board SCSI disk drive in peripheral bay Not usable Not usable Not usable SCSI port on back of base unit chassis Power Supply and Cables The 400 Watt power supply has a manual switch for selecting either 115 V AC (90-132 V AC) range or 230 V AC (180-264 V AC) range for domestic or oversea locations.

  • Page 92: Cooling Fans

    P1 Connector Pinout Signal Signal Signal Signal +3.3V +5.0 V +3.3 V * Ground +3.3V Ground -12.0 V Ground Ground Power Good Ground -5.0 V +5.0 V * 5.0 V Standby Remote On +5.0 V Ground +12.0 V Ground +5.0 V * + Sense P2 Connector Pinout Signal...

  • Page 93: Hardware Monitoring And Power Management

    The power supply contains its own cooling fan. The power supply fan is not field replaceable. If the power supply fan requires replacement, you must replace the power supply. See Chapter 9, “Servicing System Components,” for details on replacing the power supply. Hardware Monitoring and Power Management The system features advanced hardware monitoring and power management capabilities.

  • Page 94: System Board

    Feature Description Expansion Slots One full-length AGP Pro, six full-length PCI, one full-length ISA (shared with a PCI slot); PCI slots Revision 2.2, two fast-and wide (66 MHz, 64 bits. 3.3 V/Universal) and four wide (33 MHz, 64 bits, 5 V/Universal) Peripheral Device One 3.5-inch x 1.6-inch internal bay for system disk drive One 5.25-inch x 1.6-inch internal/external bay for peripheral device...

  • Page 95: System Specifications

    System Specifications Item Specifications Dimensions 8.7 in high x 16.7 in wide x 25.1 in deep (22.1 cm high x 42.4 cm wide x 63.8 cm deep) Weight 55 LB. (25 kg) fully configured Equipment rack space requred 5U, or 8.75 in (22.2 cm) Maintenance clearance 36 inches (91.4 cm) front and back AC line voltage (US)

  • Page 97: Returned Goods Authorization (Rga) Form

    Phone Mail Address Reason for Return NOTE All returned equipment MUST be shipped in original Intergraph packaging to obtain warranty service. WARNING Back up disk drives before returning equipment. Intergraph is not responsible for data lost in shipping or repair process.
  • Page 98 Warranty Procedure Some malfunctioning equipment cannot be repaired in the field, and you must return it to Intergraph for repair. Follow these steps to obtain a Returned Goods Authorization (RGA) log number and return the malfunctioning equipment. Determine the serial number of the system. The serial number is located on the white bar code identification label on the back of the base unit.
  • Page 99 Repair Depot RGA No. ________________________ Intergraph Corporation 9805 Kellner Road Huntsville AL 35894 Repair Depot RGA No. ________________________ Intergraph Corporation 9805 Kellner Road Huntsville AL 35894 Repair Depot RGA No. ________________________ Intergraph Corporation 9805 Kellner Road Huntsville AL 35894...
