46
Access Points
The following figures show the access points for major internal components.
Removing and Replacing the Top Cover
WARNING
The system is always on when connected to AC power. Before opening the
system, disconnect the system's power cord from its AC power outlet.
WARNING Close the base unit before operating the system. This ensures proper airflow
for cooling and reduces electromagnetic interference (EMI) emissions.
CAUTION
Ensure the stabilizers for the rack in which the system is mounted are fully extended.
To open the base unit:
1.
Remove the screws that secure the handle brackets to the equipment rack mounting rails.
2.
Disconnect all cables from the back of the base unit.
3.
Slide the base unit out of the equipment rack until it locks in the extended position.
4.
At the back of the base unit, remove the screws that secure the top cover to the base unit.
5.
Slide the top cover back and lift it off.

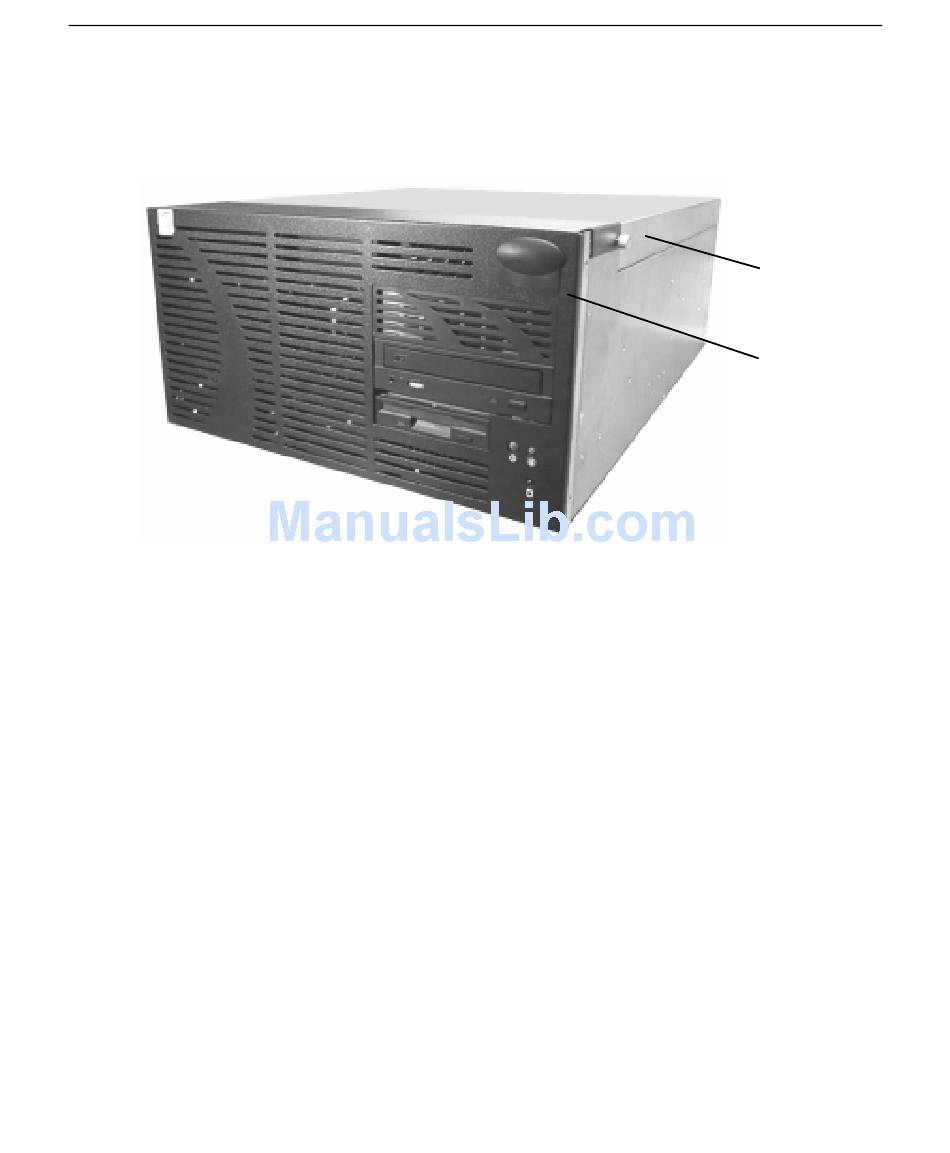

Top Cover
Front Panel
