6.

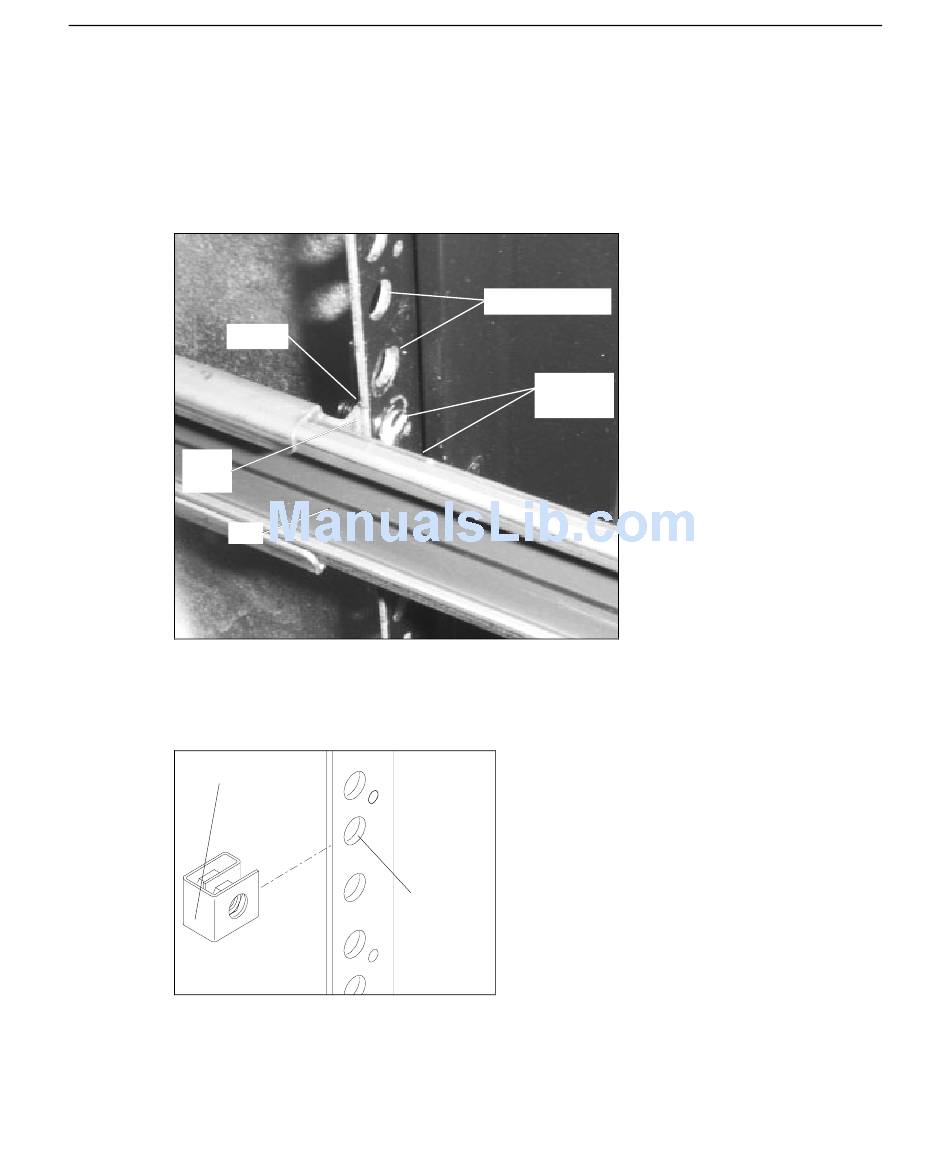

Use the flat-head screws and bar nuts to secure the front teeth on both rails to the front
mounting rails of the equipment rack.
With the flat side of each bar nut facing the screws, loosely install two flat-head screws to
each bar nut, through the fifth and sixth mounting holes from the bottom of the 5U space.
Slide the front teeth over the screws and tighten. Ensure the front teeth are between the bar
nuts and the mounting holes.
Bar Nut
Front
Teeth
Rail
7.
On the front mounting rails on the equipment rack, slide tinnerman nuts over the third and
thirteenth mounting holes from the bottom of the 5U space. The tinnerman nuts will be used
when you secure the handle brackets on the front of the base unit to the front mounting rails of
the equipment rack.
Tinnerman
Nut
Mounting Holes
Flat-Head
Screws
Mounting
Hole
5
