Installing an Expansion Card

See the documentation that came with the card for details on installation, configuration, cable
connections, and operation.

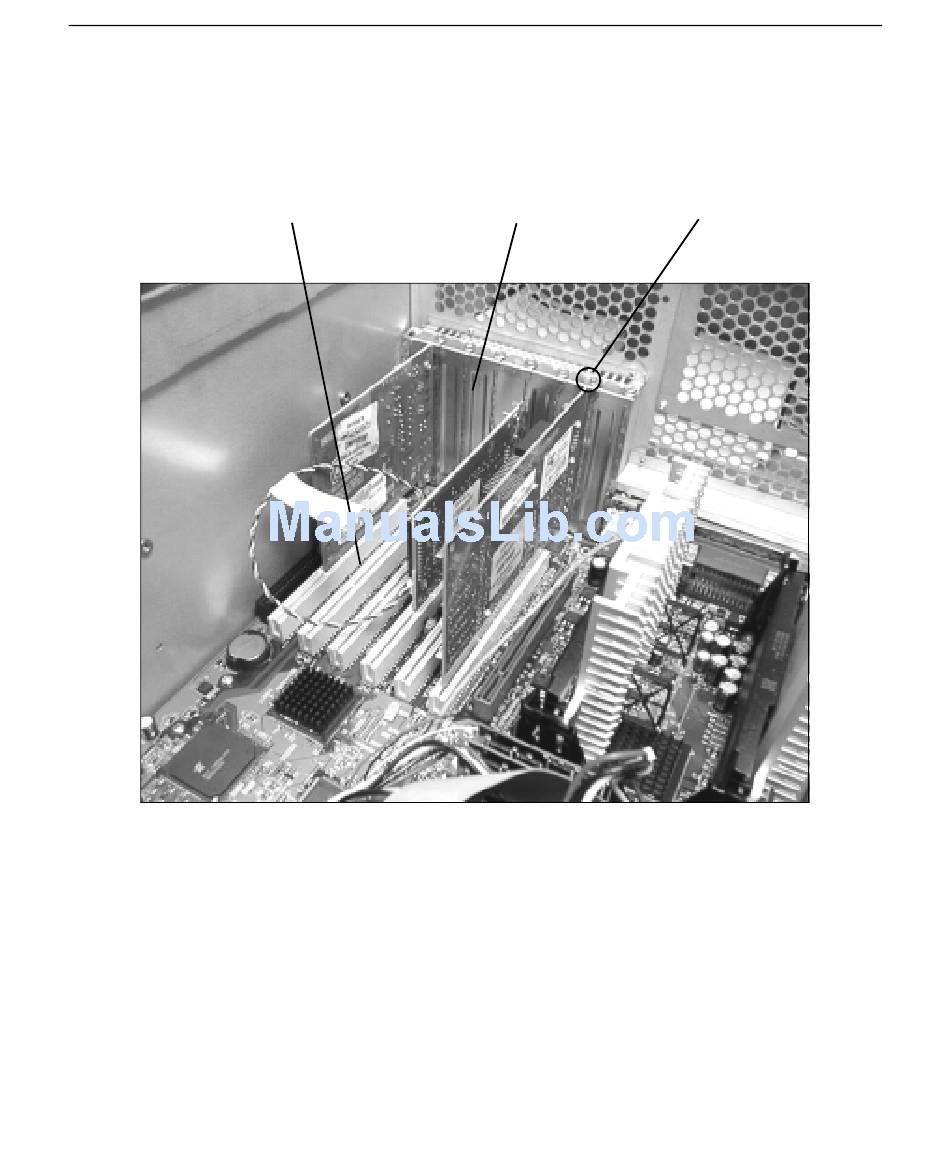

Slot Connector
(Typical)
To install an expansion card:
WARNING
The system is always on when connected to AC power. Before performing this
task, disconnect the system's power cord from its AC power outlet.
1.
Remove the top cover. See Chapter 7, "Gaining Access to System Components."
2.
Remove the blanking plate from an open slot on the back of the base unit. If there are no open
slots and you want to replace an existing expansion card, see Chapter 9, "Servicing System
Components" for instructions.
CAUTION
Ensure that you cover an open slot with a blanking plate to ensure proper airflow for
cooling and to reduce electromagnetic interference (EMI) emissions.
Blanking Plate
(Typical)
51
Retaining Screw
(Typical)
