68
3.
Disconnect all power cables from all internal peripheral devices and the system board. Note
the locations to which the power cables are connected:
Cable
P1 and P2
P3 through P8
P9
4.

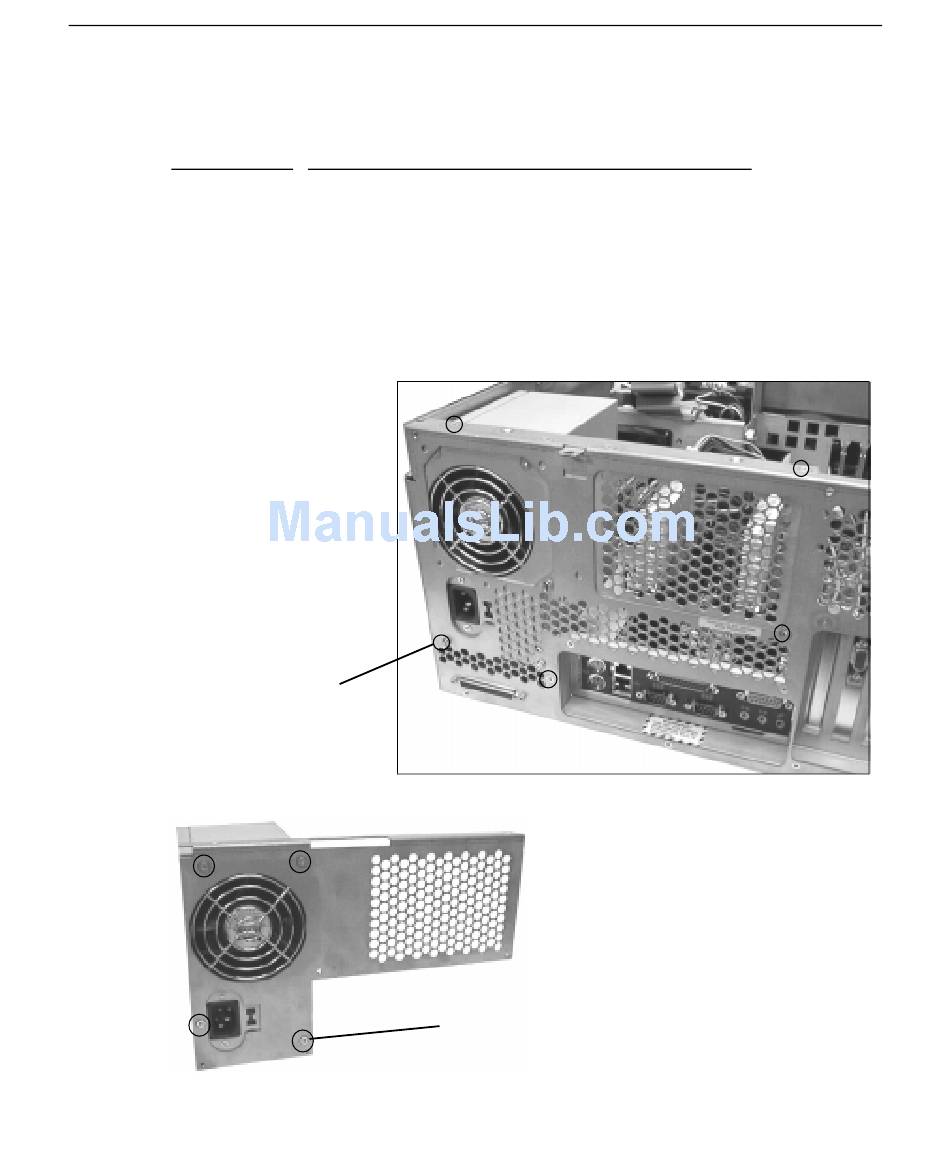

Remove and retain the screws securing the power supply and mounting plate to the back and
top of the system.
CAUTION
Support the power supply as you remove the mounting plate screws. Do not let the
power supply fall or damage to equipment may result.
Power Supply
Mounting Plate
Screws (Circled)
5.
Remove the power supply and mounting plate from the base unit.
Connects to
ATX power connectors on the system board
CD-ROM drive, disk drives, and other peripheral devices
Floppy disk drive
Power Supply Mounting Screws
(Circled)
