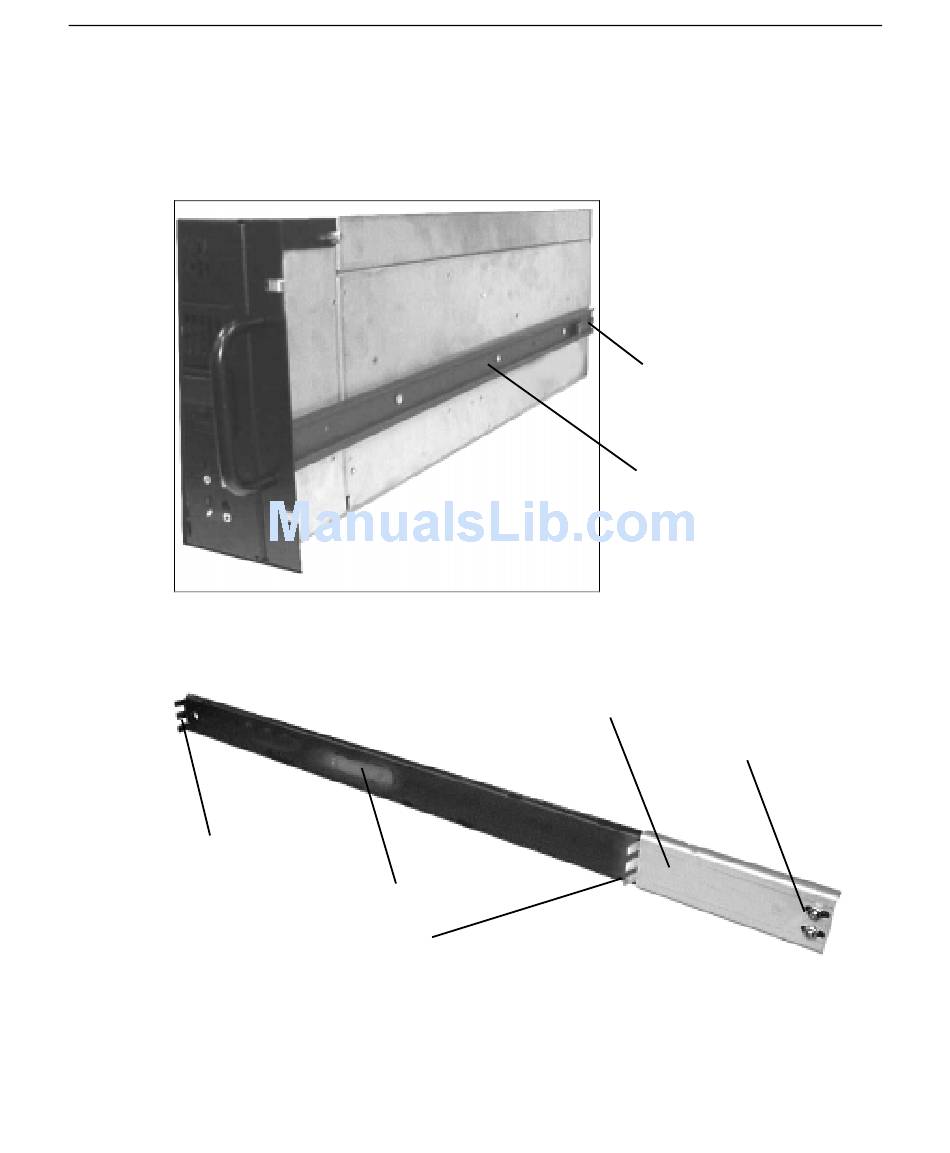

Remove the guide from each of the two rails. The guide is the innermost-sliding piece of the
rails, and has a flexible tab at one end.
3.
Attach a guide to each side of the base unit using the flat-head screws provided, making sure
the flexible tab on the guide is toward the back of the base unit.
4.
Use the button-head screws and bolts provided to loosely secure a bracket to each rail. The
bracket has the teeth needed to secure the rail to the equipment rack. Install the button-head
screws and bolts loosely so you can adjust the back teeth positions later.
Front Teeth
5.
The rack-mount base unit requires 5U (10.5 in or 26.7 cm) of mounting space. Choose the
five vertical units you need and, on the equipment rack mounting rails, mark the fifth and sixth
mounting holes from the bottom of this 5U space.
Side Tab
Back Teeth
Flexible Tab
Guide (One each side)
Brack
Bolts
