Mylex Global Array Manager Installation Manual And User's Manual page 97

Configuration
registered as a single server group through the
Administration->Define Server Groups dialog box (see "Setting Up
Server Groups and Servers" on page 3-17). The colors of the lines have
no relation to other color indications (e.g. channel colors).
To launch PATHpilot, click Administration->Advanced Functions
->PATHpilot. The PATHpilot Information Control Console (PIC) will
start as a separate application. (The information in Figure 4-36 is for
demonstration purposes.)

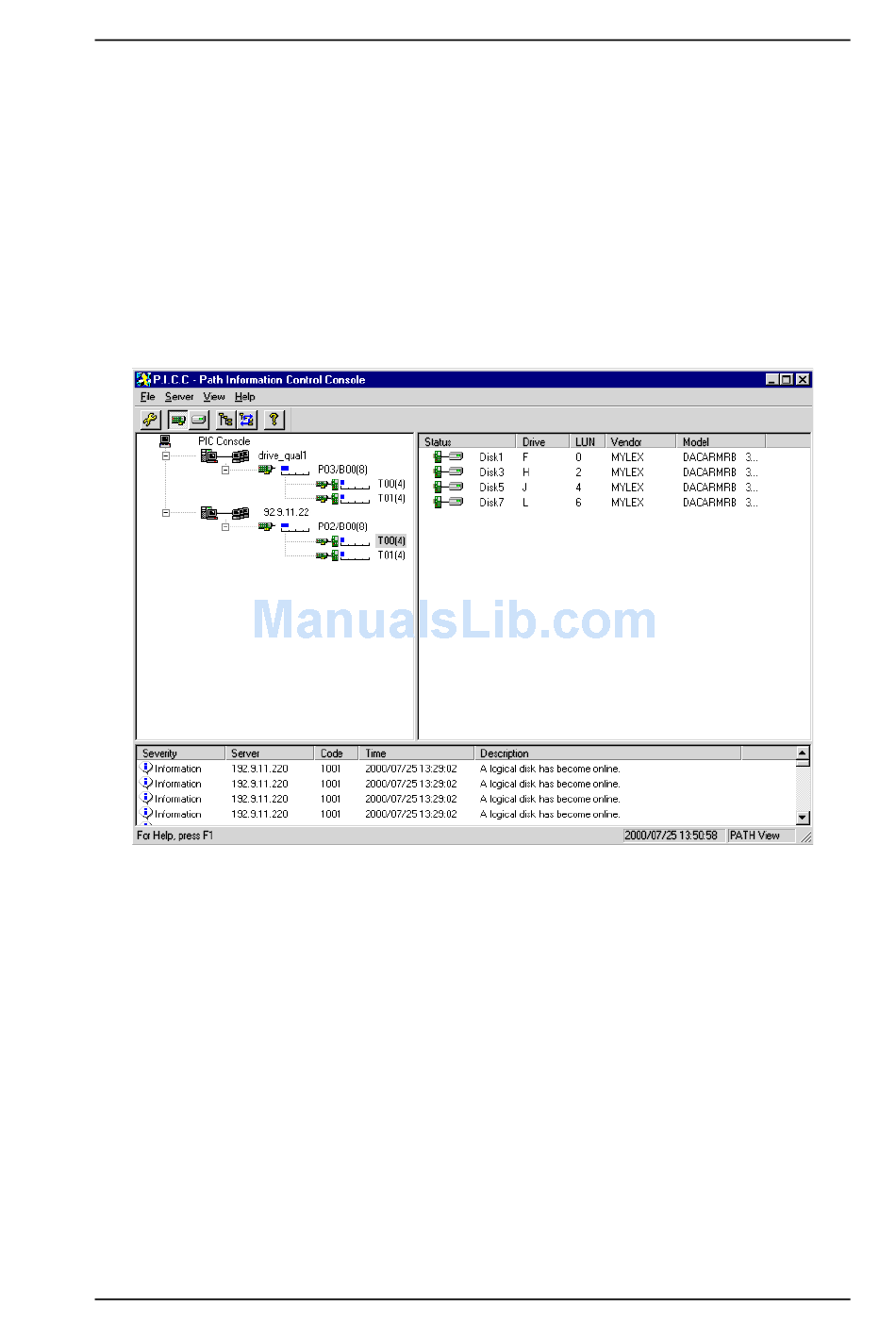

Figure 4-36. PATHpilot Information Control Console (PIC)
The PIC screen consists of a multi-frame viewer, menu bar, tool bar,
and status bar. Refer to the PATHpilot Online Help for complete
descriptions of Navigation tools and Configuration settings.
Manual No. SA67-0049-01 4-39
