Note
LEDs associated with global or dedicated spares will
not blink.
2. Click OK (see Figure 5-6) to end the locate operation and return to
normal status.
The PFA Count shows the amount of device errors registered. Click the PFA
Information button to display the PFA sense code details (Figure 5-7).
Note
The PFA button will not be visible if the PFA count is
zero.
Click the Close button to close the window.
Manual No. SA67-0049-01

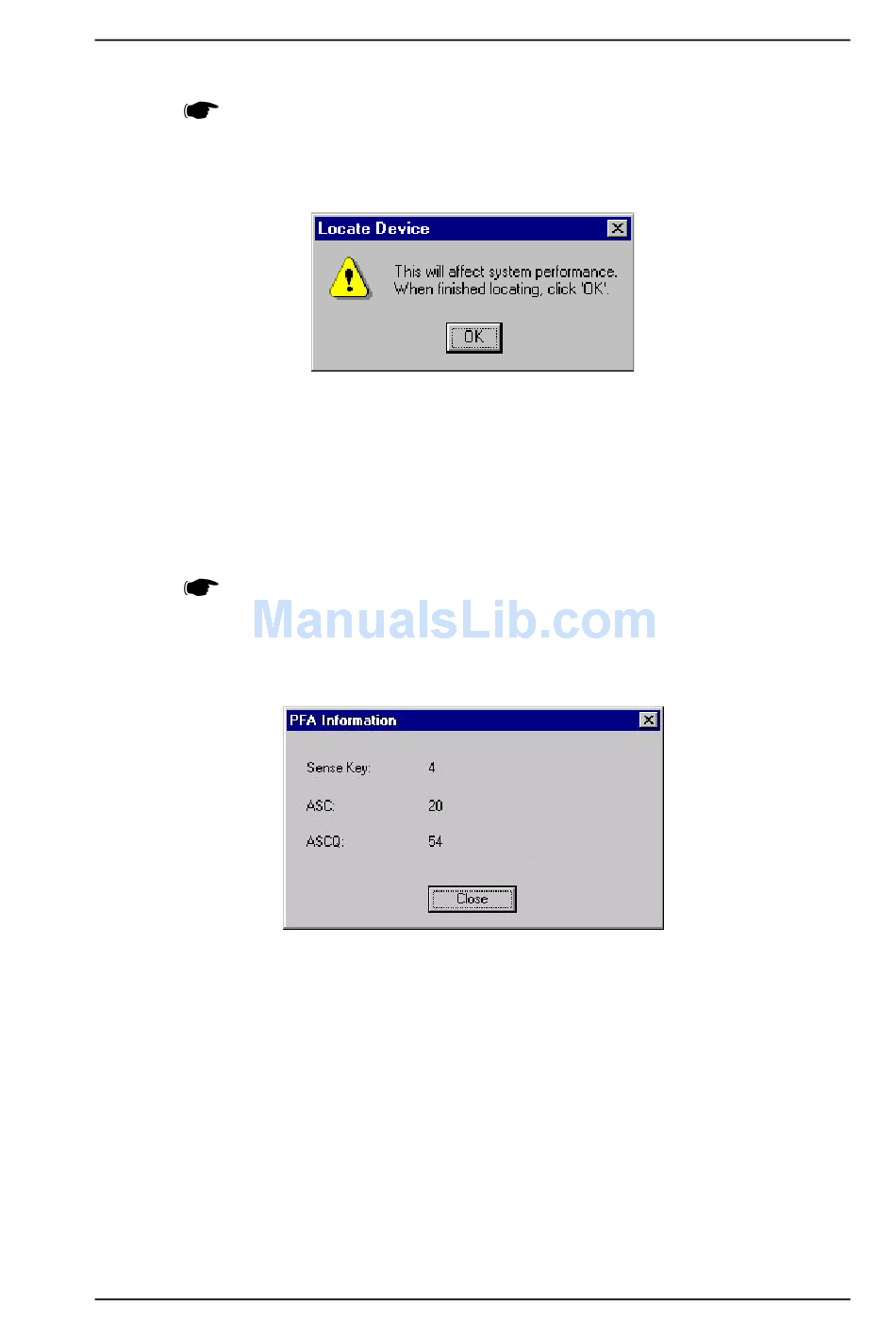

Figure 5-6. Locate Device Message
Figure 5-7. PFA Information Window
Monitoring
5-9
