Enclosure Monitoring and Management
• The product identification.
• The product revision level.
• The number of drive slots in the enclosure cabinet.
Highlight an enclosure and the Locate button will become available. Click
the Locate button to "blink" the LEDs of all of the physical drives in the
enclosure to reveal its location. A locate enclosure dialog box will open,
click OK or press the Enter key to end the locate operation.
Click the Close button or press the Enter key to close the dialog box.

Details Page

Select the Details Tab to display Enclosure Information Details
(Figure 5-15).

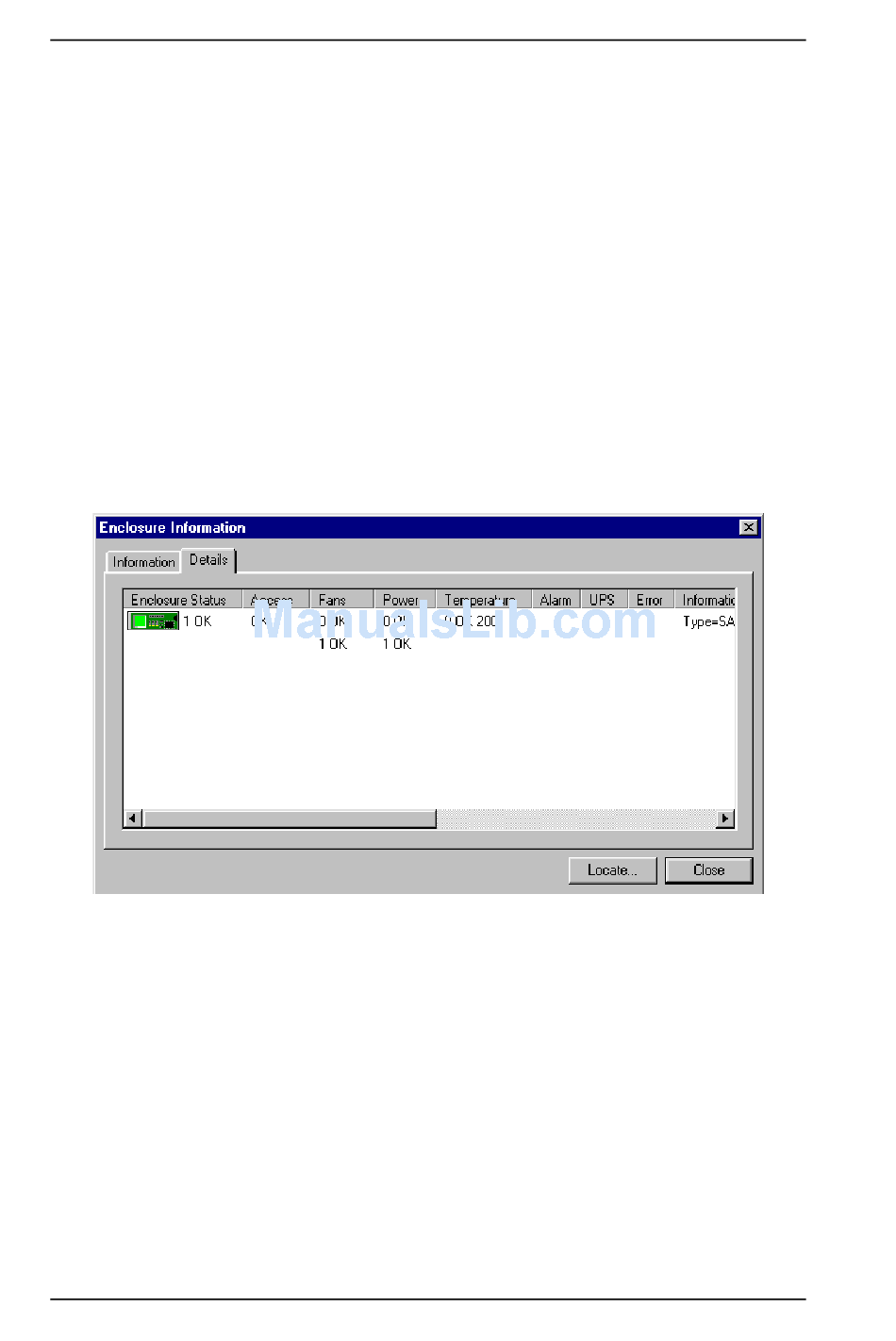

Figure 5-15. SES Enclosure Information – Details Page
Enclosure Information Details page displays the following about the
currently-available Fibre enclosures:
The status of each enclosure, identified by an icon and an enclosure number,
as well as one of the following expressed in text:
• OK – All components are optimal.
• Critical – Some component has failed; one more failure may result
in data loss.
• Failed – A failure has occurred that may result in data loss.
5-18 GAM Client User's Guide
