The following information is displayed:
• The controller model
• Whether an Intelligent Battery Backup Unit is installed (N/A for not
supported on the current controller)
• The firmware and BIOS versions residing on the controller
• The cache size and FlashROM size
• The bus type and number of channels on the controller
• The number of physical devices detected, and the maximum number of
physical devices that this controller can hold
• The number of logical drives configured on this controller, and the
maximum number of logical drives that can be configured
• Host information: bus number, slot number, and IRQ
Click the Controller Options button to view a dialog box of user-definable
controller parameters (see "Setting and Modifying Controller Options" on
page 4-2).
Click the Close button to close the Controller Information window.
Manual No. SA67-0049-01

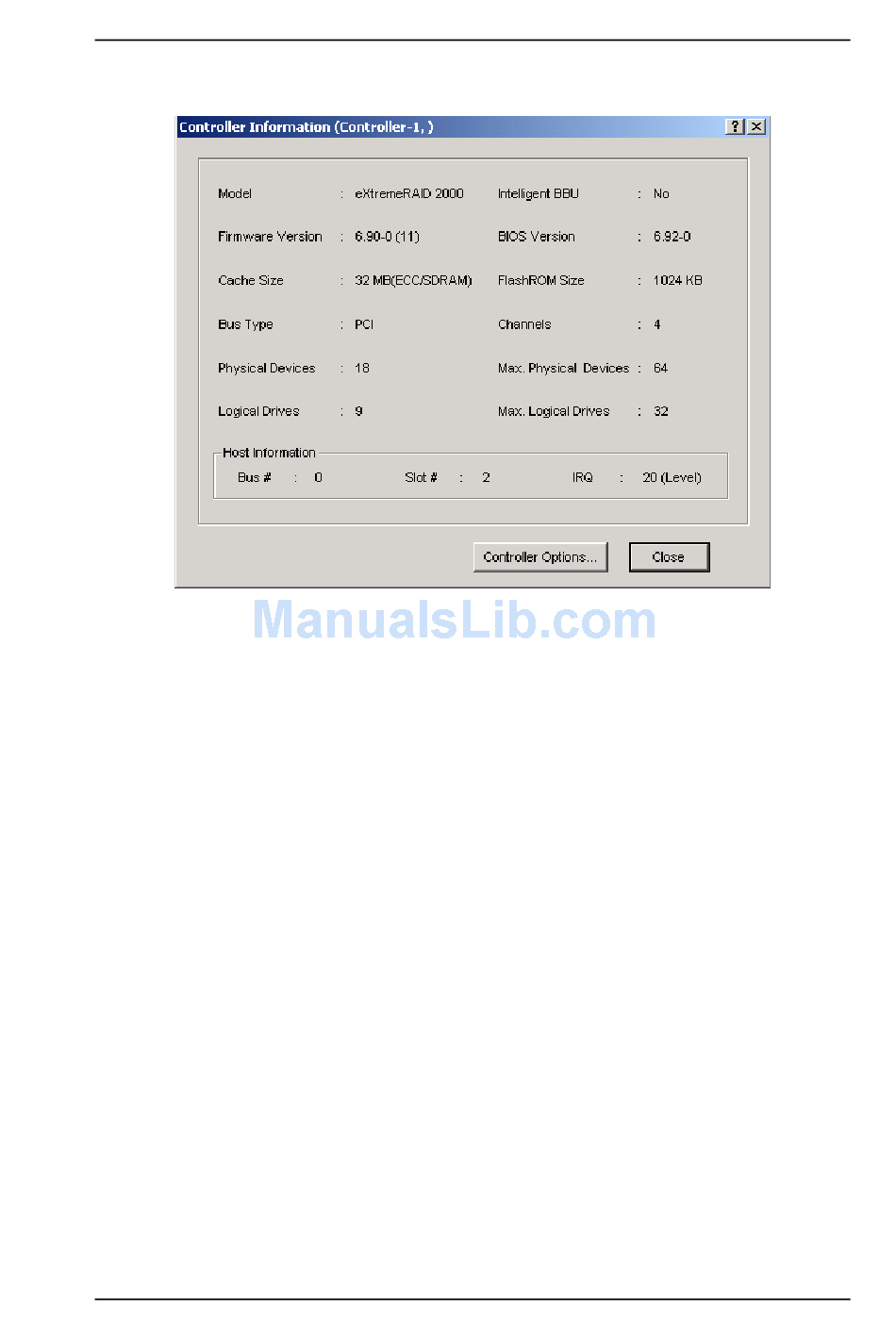

Figure 5-3. Controller Information
Monitoring
5-5
