Using the Flash Utility
The Flash Utility dialog box appears as shown in Figure 6-8:
Under Current RAM Information, you see displayed the key information
regarding the code that is currently stored in the BIOS of your selected
controller. This information is helpful for diagnostic and troubleshooting
purposes as well as to determine whether you need to upgrade some aspect
of the firmware, BIOS, etc.
To perform a flash upgrade:
1. Type the name of the appropriate image file (.IMG) in the Flash file
selection box, or click the Browse button to locate the file.
If you select Browse, the Open Image file dialog box is displayed as
shown in Figure 6-9:
6-8

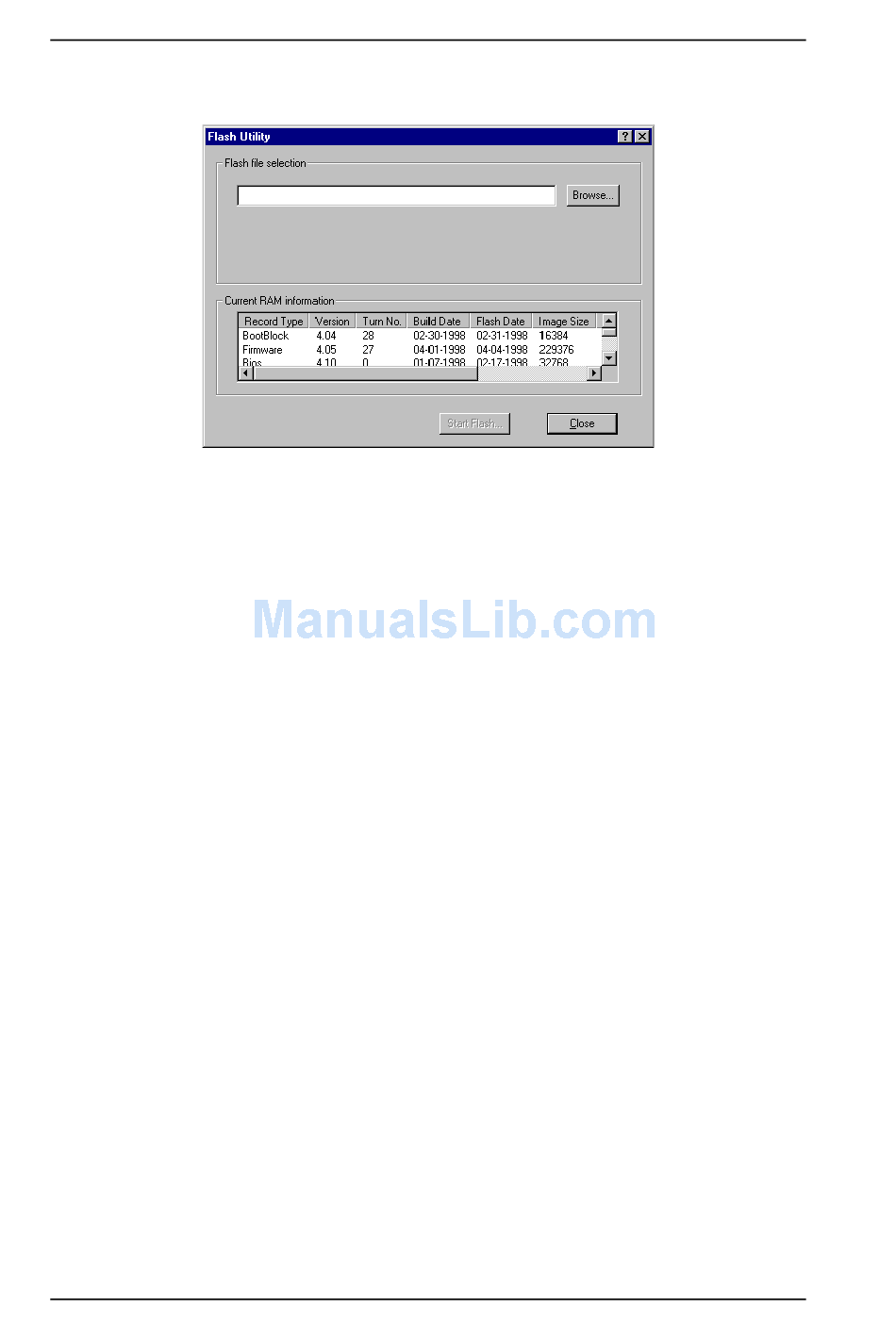

Figure 6-8. Flash Utility Dialog Box
