Device Information (Figure 5-4, Figure 5-5) displays the following about the
currently-selected physical device.
Device Information: RAID Controller
• The vendor or source of the controller
• The controller's product identification
• The revision level of the hardware
• The back-end bus width (in bits)
• Whether the following parameters are set to Yes or No: Sync, Soft
Reset, Command Queuing
• ANSI Version supported
• Back-end transfer speed and bus width (device state)
Device Information: Disk Drive
• The vendor or source of the drive
• The drive's product identification (such as ATLASIV9WLS)
Manual No. SA67-0049-01

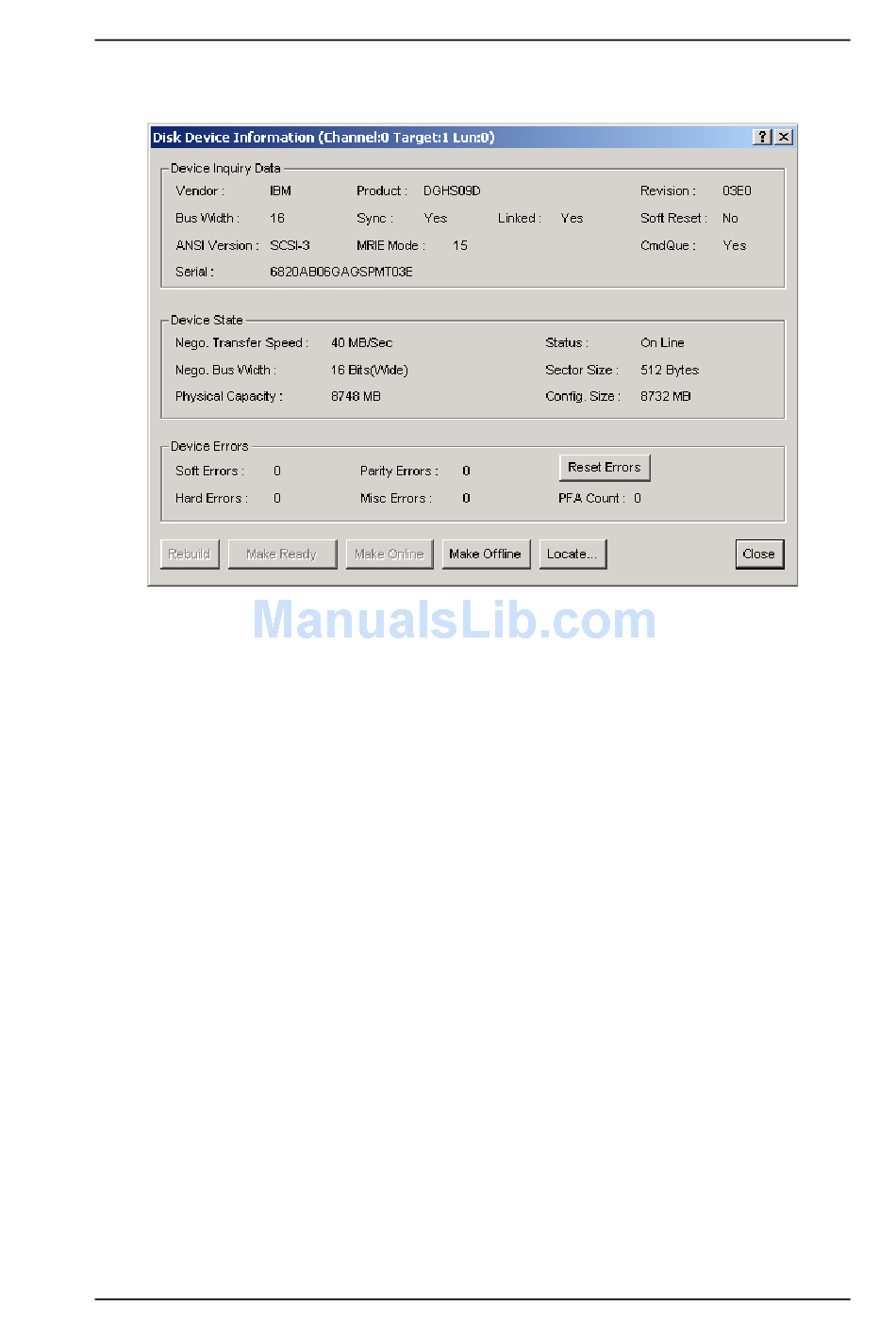

Figure 5-5. Disk Device Information
k Drive
Monitoring
5-7
