Clearing a Configuration

Use the following procedure to clear a configuration.
1. Open the Clear Configuration dialog box, select File>Clear
Configuration.
The Clear Configuration Dialog box opens (see Figure 6-13).

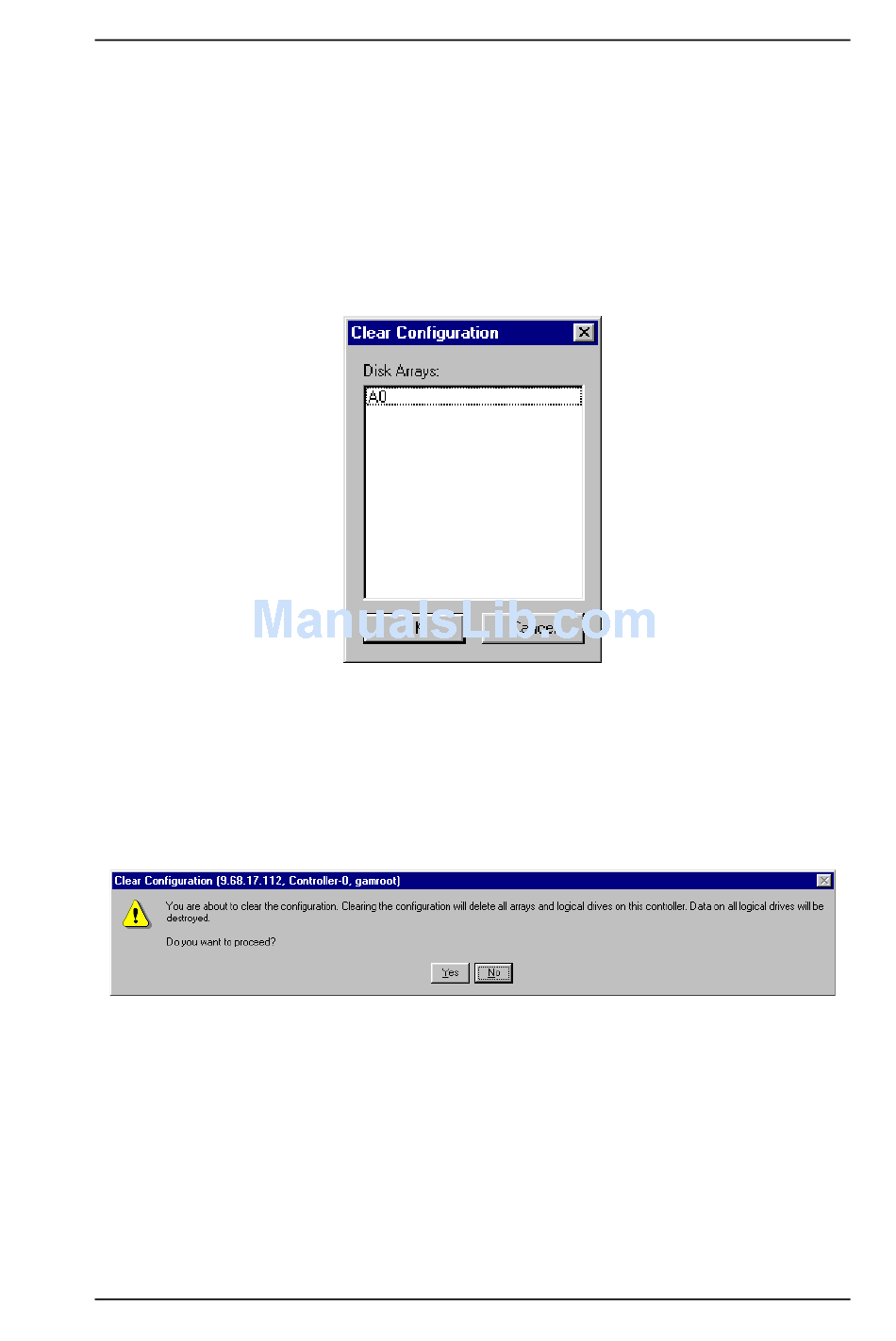

Figure 6-13. Clear Configuration Dialog Box
2. Select the disk array(s) that you want to delete.
3. Click OK to clear the configuration. A caution message box will open
(see Figure 6-14).
Figure 6-14. Clear Configuration Caution Message
4. Click the Yes button to continue.
A warning message box will open (see Figure 6-15).
Manual No. SA67-0049-01
Maintenance Processes
6-13
