Navigating Global Array Manager Client
• Item #2: The physical devices present on each channel, specifying
the target ID, capacity of the device, device type, and device status.
See "Physical Device and Logical Drive Monitoring" on page 5-6
for more information.
• Item #3: The logical drives configured on the controller, specifying
the logical drive number, capacity of the logical drive, configured
RAID level, and logical drive status.
• Item #4: The enclosure device present on each channel, specifying
the device inquiry data (vendor, bus width, etc...), and the device
state.
• Item #5: The host device present on each channel, specifying the
device inquiry data (vendor, bus width, etc...), and the device state.

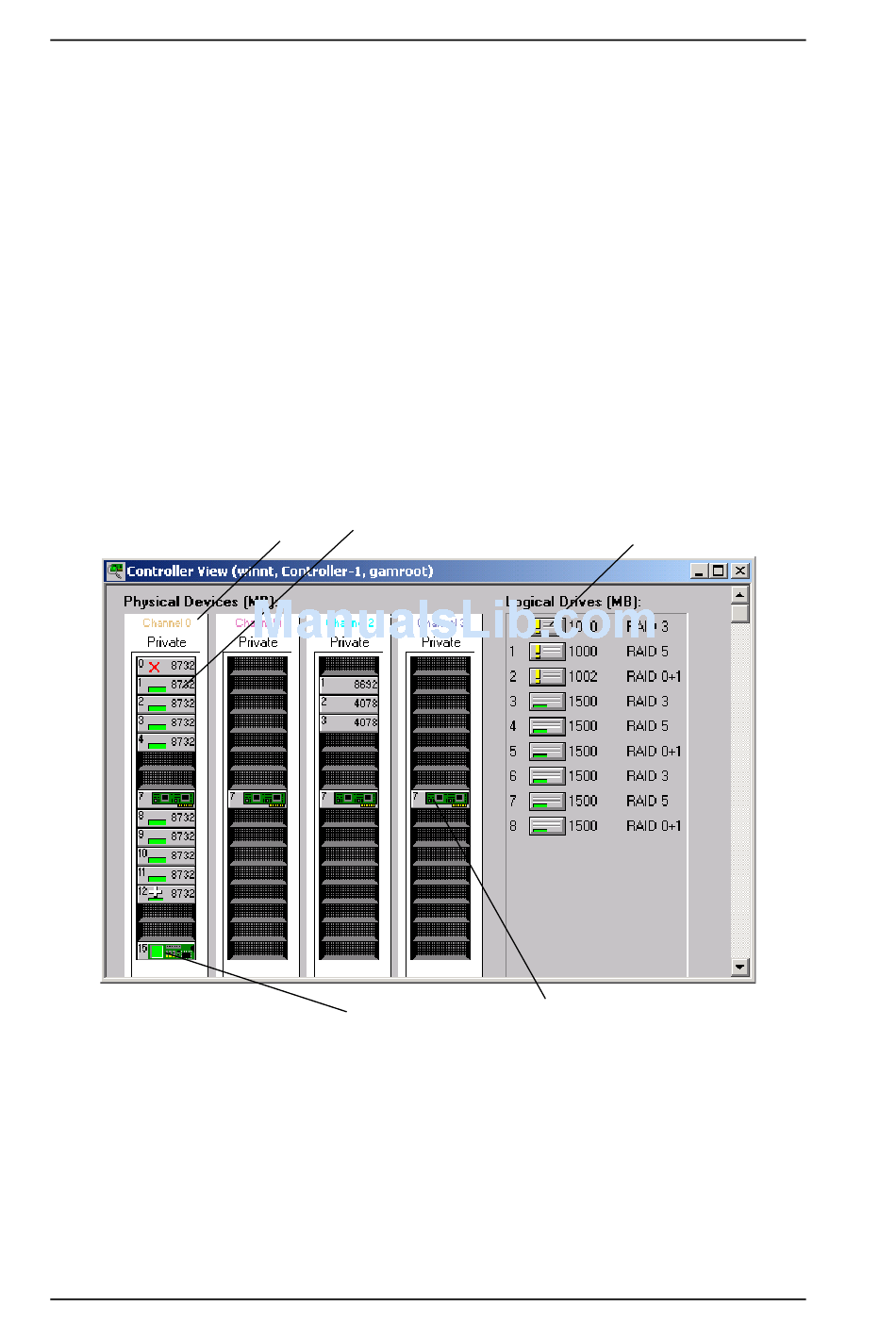

Figure 3-3. Controller View Window – "Non-Fibre" RAID Controller
3-6
#2
#1
#4
#3
#5
