5. Once you have assembled the disk array groups, click the Logical
Drives tab to continue on to logical drive setup (Figure 4-23).

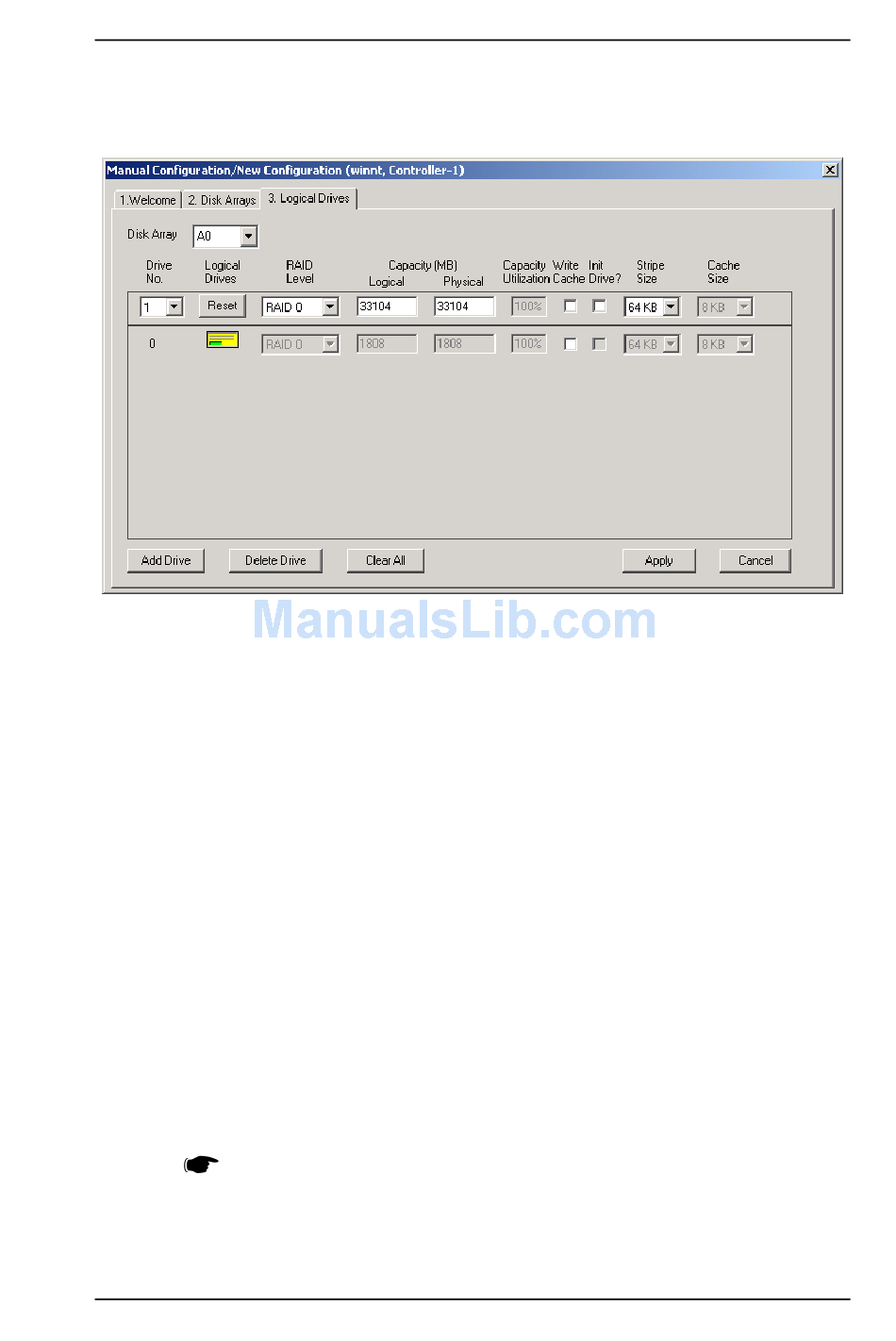

Figure 4-23. Manual Configuration – Logical Drives
The Logical Drives tab in Manual Configuration is where you configure
your disk arrays into logical drives.
Do the following:
1. If you want to randomly create a logical drive, select the desired disk
array from the Disk Array drop down menu.
2. Select a RAID level for your first logical drive. Supported RAID levels
are RAID 0, RAID 1, RAID 3, RAID 5, RAID 0+1, and stand-alone
drive (JBOD). Only RAID levels compatible with the current
configuration will be available in the list.
3. Type the amount of available logical or physical capacity for this
logical drive. If your total configuration will have only one logical
drive which uses all available capacity, the default sizes should not be
changed. If you intend to create additional logical drives now or later,
type a smaller number to reserve the desired amount of capacity.
Note
When creating a random logical drive, if there are a
