Startup & Navigation

Setting Up Server Groups and Servers

p Server Groups and Servers

Adding a Server Group to the Server Group List

Open Define Server Groups as shown in Figure 3-14. (This is not necessary
if you are starting GAM and no Server Groups are defined. The Define
Server Groups dialog box will display automatically.)

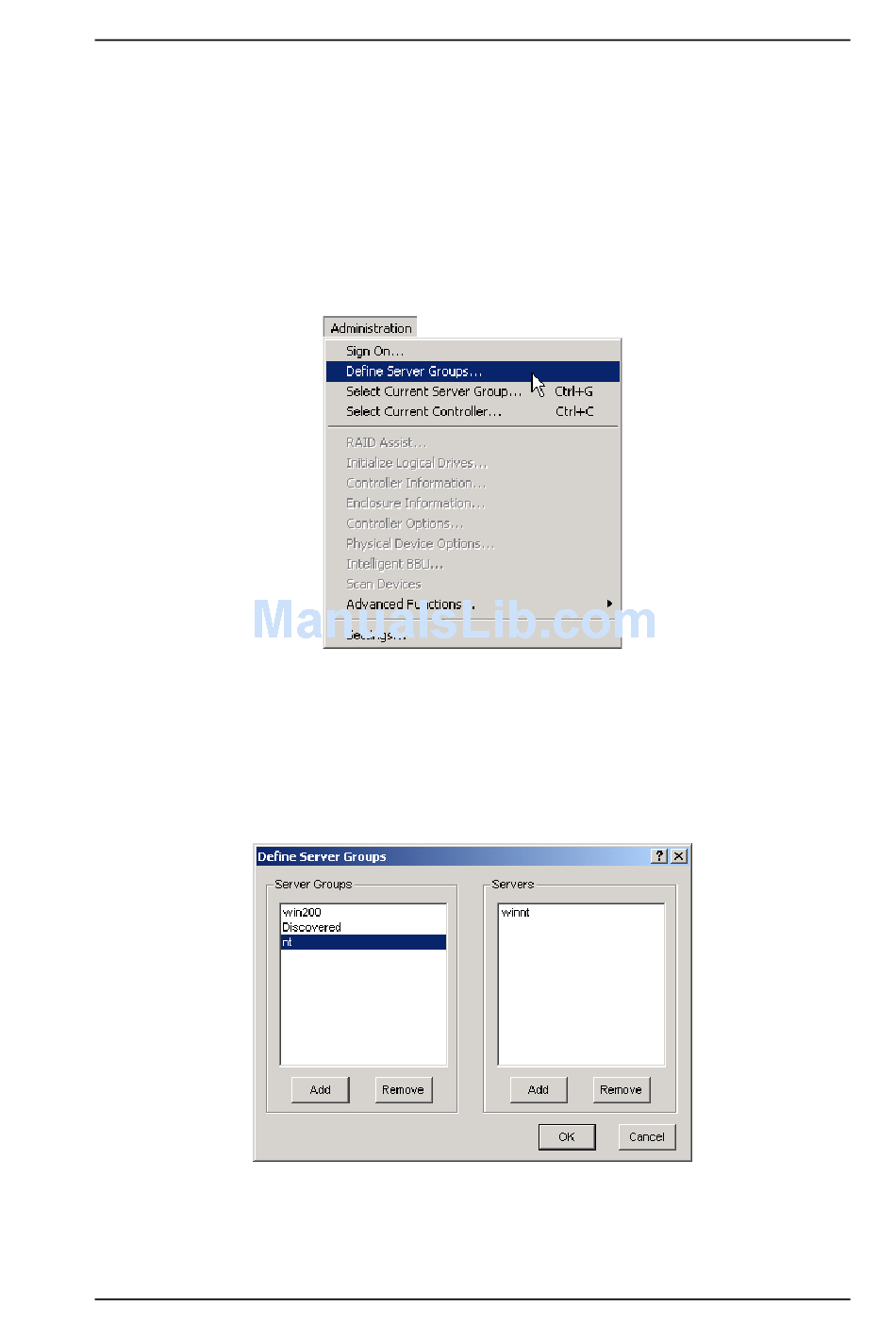

Figure 3-14. Select "Define Server Groups"
In the Define Server Groups dialog box (Figure 3-15), do the following:
1. Click the Add button under the Server Groups section of the dialog
box.
Figure 3-15. Define Server Groups Dialog Box
Manual No. SA67-0049-01 3-17
