• Severity. The severity level of this event.
• Source. The IP address or name of the file server that is the sender
(source) of this event.
• Source Time. Day of the week, month, day of the month, time of
day, and year at the source file server's location when this event
occurred.
• Device Address. Relevant channel/target or other data pertaining to
the source of this event.
• Description. Text of the message describing what occurred.
• Sequence (Seq). Number representing where this event fell in a
stream of events from the same source.
• Local Time. Day of the week, month, day of the month, time of day,
and year at the local client workstation's location when this event
arrived.

Components of the Controller View Window

Open the Controller View window by double-clicking any server icon in the
Global Status View, or as shown in Figure 3-2:
The Controller View window (Figure 3-3), displays the following
information about the controller currently selected in the controller selection
box:
• Item #1: The number of channels on this controller, each channel
depicted as a tower.
Manual No. SA67-0049-01

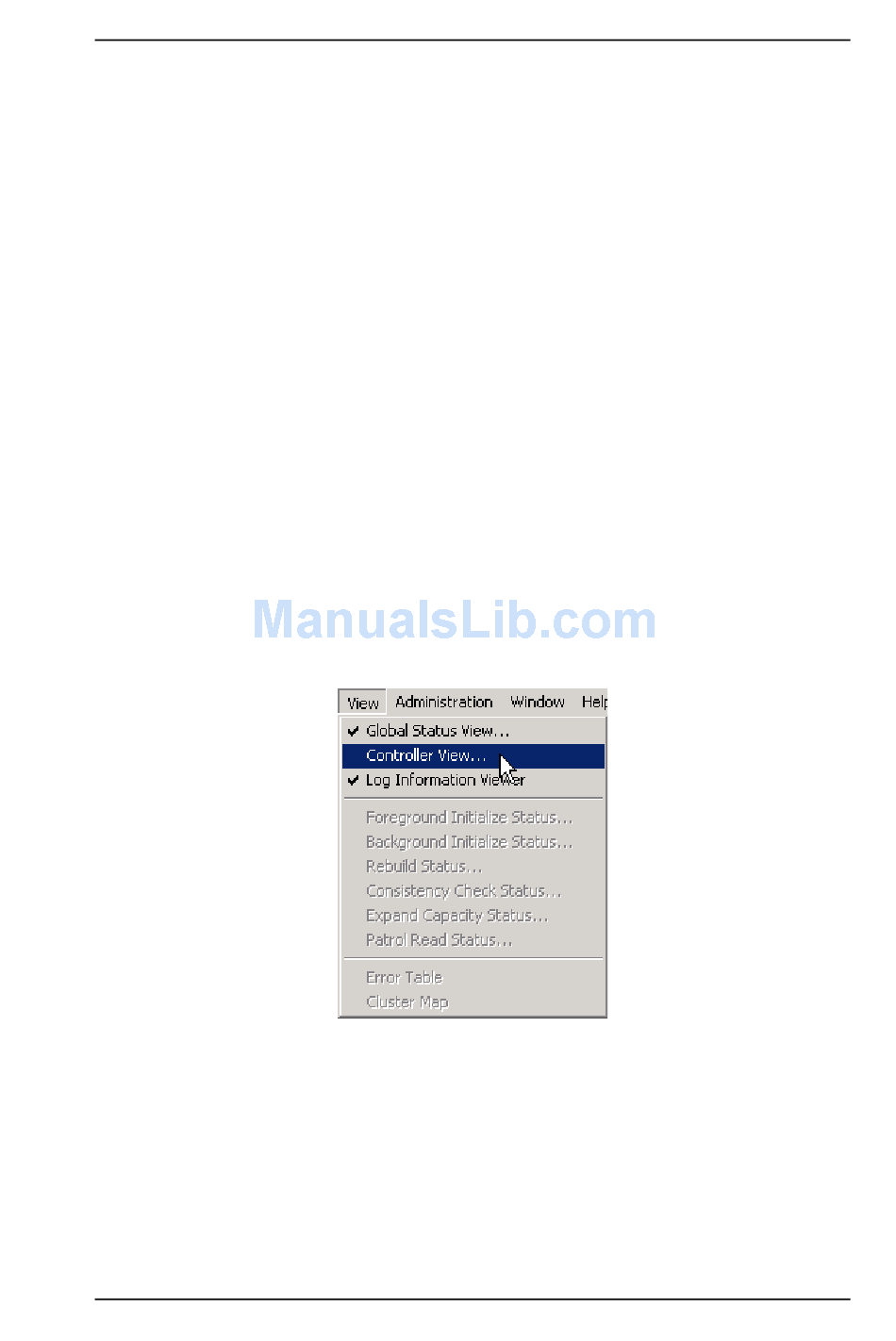

Figure 3-2. Select "Controller View"
