5.2

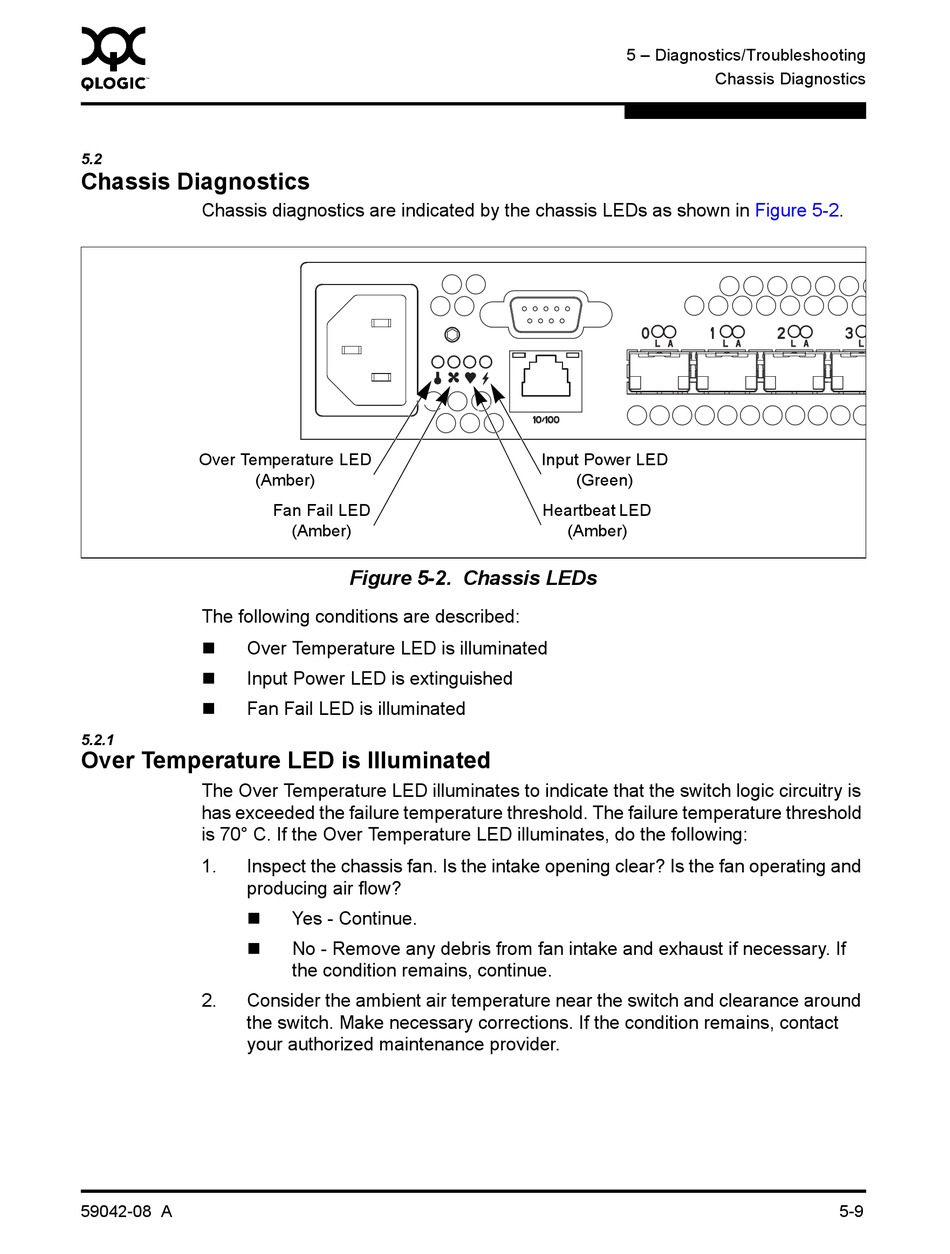

Chassis Diagnostics

Chassis diagnostics are indicated by the chassis LEDs as shown in
Over Temperature LED
(Amber)
The following conditions are described:

Over Temperature LED is illuminated

Input Power LED is extinguished
Fan Fail LED is illuminated
5.2.1
Over Temperature LED is Illuminated
The Over Temperature LED illuminates to indicate that the switch logic circuitry is
has exceeded the failure temperature threshold. The failure temperature threshold
is 70° C. If the Over Temperature LED illuminates, do the following:
1. Inspect the chassis fan. Is the intake opening clear? Is the fan operating and
producing air flow?
2. Consider the ambient air temperature near the switch and clearance around
the switch. Make necessary corrections. If the condition remains, contact
your authorized maintenance provider.
59042-08 A
Fan Fail LED
(Amber)
Figure 5-2. Chassis LEDs
Yes - Continue.
No - Remove any debris from fan intake and exhaust if necessary. If
the condition remains, continue.
5 – Diagnostics/Troubleshooting
Chassis Diagnostics
Input Power LED
(Green)
Heartbeat LED
(Amber)
Figure 5-2.
5-9
