4 – Installation
Installing a Switch
4.1.2
Switch Power Requirements
Power requirements are 1 Amp at 90 to 137 Vac and 0.45 Amps at 180 to 264
Vac.
4.1.3
Environmental Conditions
Consider the factors that affect the climate in your facility such as equipment heat
dissipation and ventilation. The switch requires the following operating conditions:
Operating temperature range:
Relative humidity:
4.2
Installing a Switch
Unpack the switch and accessories. The SANbox2-8c product is shipped with the
components shown in
SANbox2-8c Fibre Channel Switch (1) with firmware installed
Power cord
Rubber feet (4)
CD-ROM containing the SANsurfer Switch Manager switch management
application, release notes, and documentation.

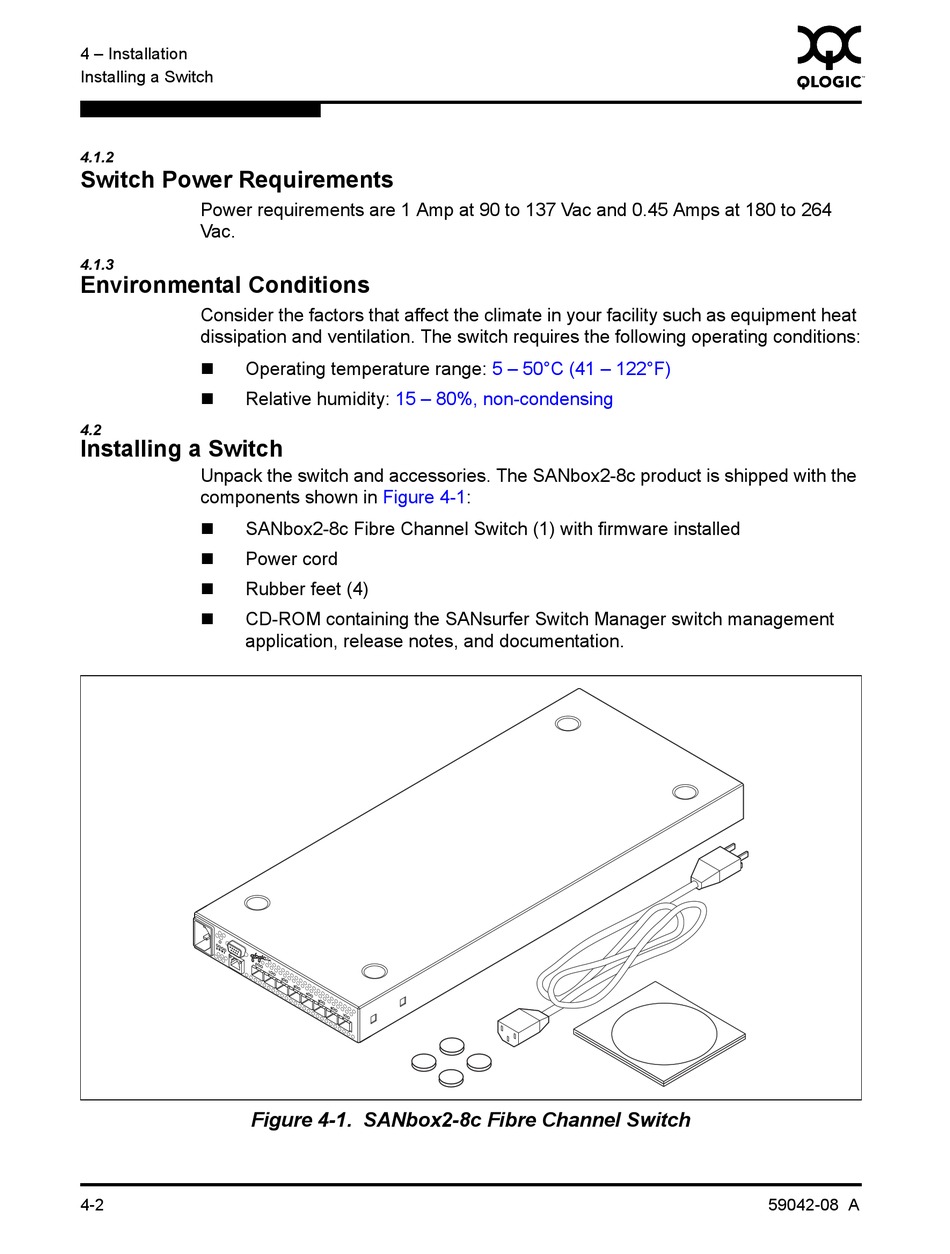

Figure 4-1. SANbox2-8c Fibre Channel Switch
4-2
5 – 50°C (41 – 122°F)
15 – 80%, non-condensing
Figure
4-1:
0
59042-08 A
