4.2.4.2

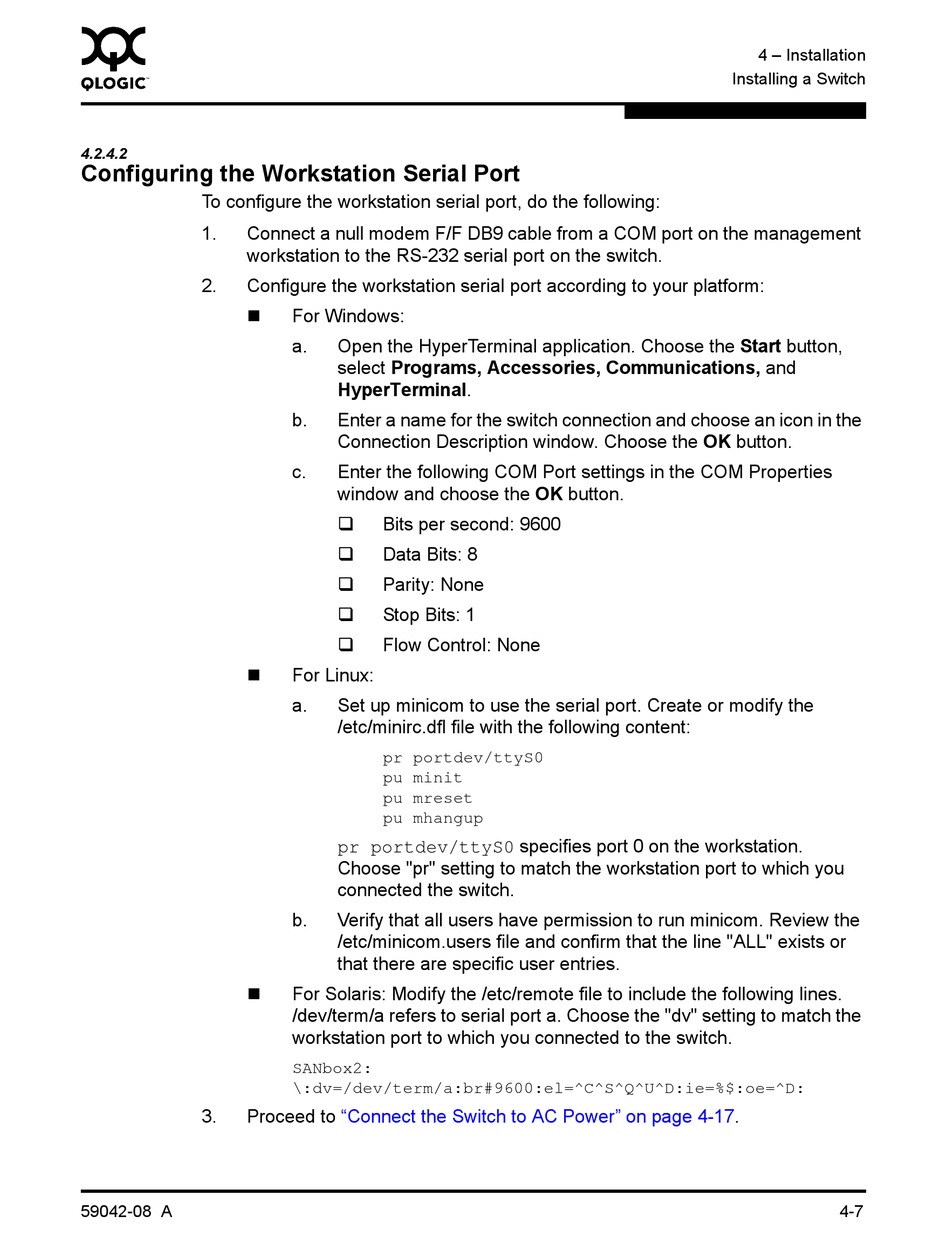

Configuring the Workstation Serial Port
To configure the workstation serial port, do the following:
1.
Connect a null modem F/F DB9 cable from a COM port on the management
workstation to the RS-232 serial port on the switch.
2.
Configure the workstation serial port according to your platform:
3.
Proceed to
59042-08 A
For Windows:
a.
Open the HyperTerminal application. Choose the Start button,
select Programs, Accessories, Communications, and
HyperTerminal.
b.
Enter a name for the switch connection and choose an icon in the
Connection Description window. Choose the OK button.
c.
Enter the following COM Port settings in the COM Properties
window and choose the OK button.
Bits per second: 9600
Data Bits: 8
Parity: None
Stop Bits: 1
Flow Control: None
For Linux:
a.
Set up minicom to use the serial port. Create or modify the
/etc/minirc.dfl file with the following content:
pr portdev/ttyS0
pu minit
pu mreset
pu mhangup
pr portdev/ttyS0 specifies port 0 on the workstation.
Choose "pr" setting to match the workstation port to which you
connected the switch.
b.
Verify that all users have permission to run minicom. Review the
/etc/minicom.users file and confirm that the line "ALL" exists or
that there are specific user entries.
For Solaris: Modify the /etc/remote file to include the following lines.
/dev/term/a refers to serial port a. Choose the "dv" setting to match the
workstation port to which you connected to the switch.
SANbox2:
\:dv=/dev/term/a:br#9600:el=^C^S^Q^U^D:ie=%$:oe=^D:
"Connect the Switch to AC Power" on page
4 – Installation
Installing a Switch
4-17.
