B – Command Line Interface
Set Config Command
DefaultDomainID
DomainIDLock
SymbolicName
R_A_TOV
E_D_TOV
PrincipalPriority
ConfigDescription
InteropMode
LegacyAddressFormat
B-64

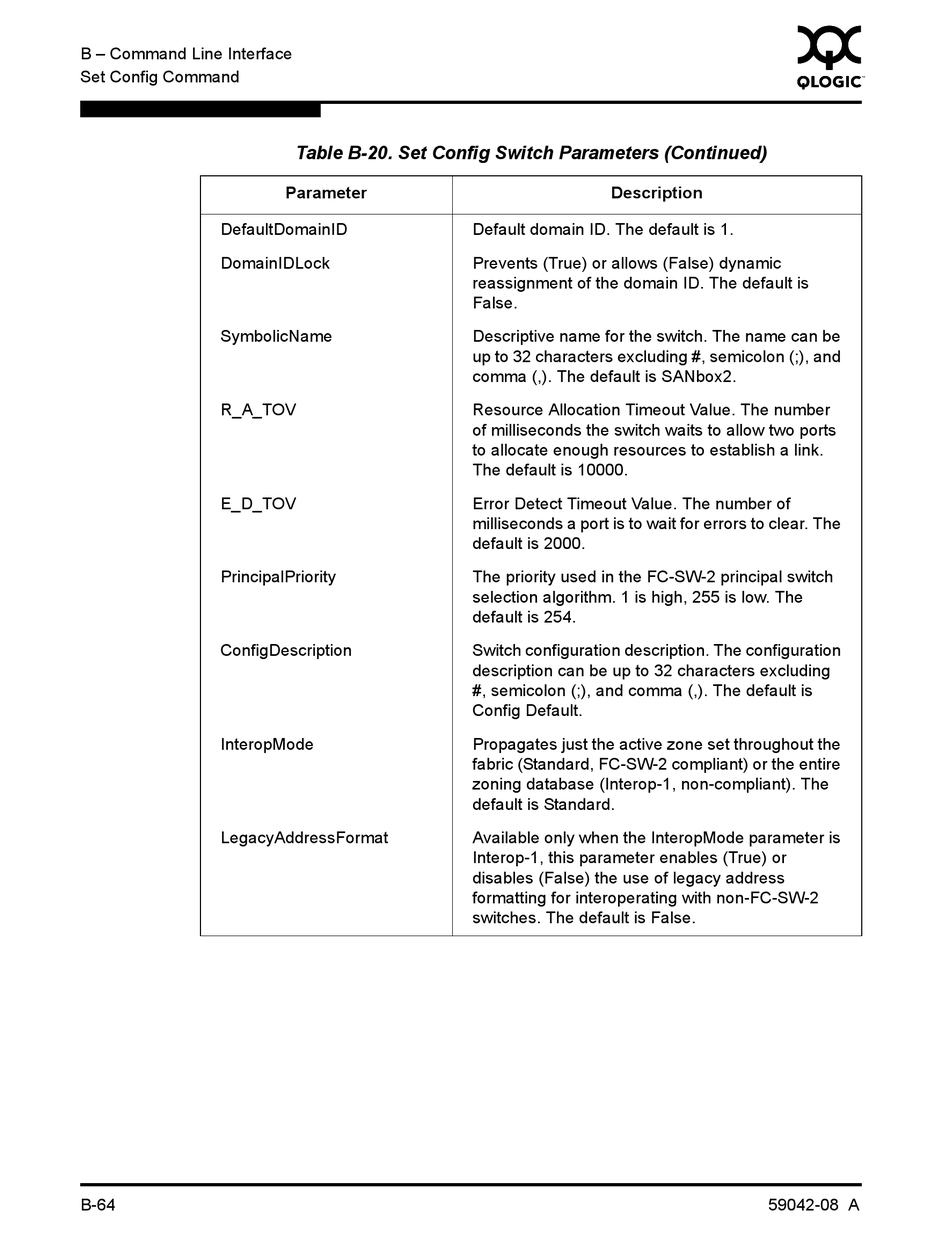

Table B-20. Set Config Switch Parameters (Continued)
Parameter Description
Default domain ID. The default is 1.
Prevents (True) or allows (False) dynamic
reassignment of the domain ID. The default is
False.
Descriptive name for the switch. The name can be
up to 32 characters excluding #, semicolon (;), and
comma (,). The default is SANbox2.
Resource Allocation Timeout Value. The number
of milliseconds the switch waits to allow two ports
to allocate enough resources to establish a link.
The default is 10000.
Error Detect Timeout Value. The number of
milliseconds a port is to wait for errors to clear. The
default is 2000.
The priority used in the FC-SW-2 principal switch
selection algorithm. 1 is high, 255 is low. The
default is 254.
Switch configuration description. The configuration
description can be up to 32 characters excluding
#, semicolon (;), and comma (,). The default is
Config Default.
Propagates just the active zone set throughout the
fabric (Standard, FC-SW-2 compliant) or the entire
zoning database (Interop-1, non-compliant). The
default is Standard.
Available only when the InteropMode parameter is
Interop-1, this parameter enables (True) or
disables (False) the use of legacy address
formatting for interoperating with non-FC-SW-2
switches. The default is False.
