2.1.2.4

Input Power LED (Green)

The Input Power LED indicates the voltage status at the switch logic circuitry.
During normal operation, this LED illuminates to indicate that the switch logic
circuitry is receiving the proper DC voltages.
2.2

Fibre Channel Ports

The SANbox2-8c switch has 8 Fibre Channel ports numbered 0–7 as shown in
Figure 2-4. Each of these ports is served by a Small Form-Factor Pluggable (SFP)
optical transceiver. The port LEDs are located above their respective ports and
provide port login and activity status information. The ports self discover the
proper mode when connected to public devices and other switches.
59042-08 A
Port LEDs
Fibre Channel
Port

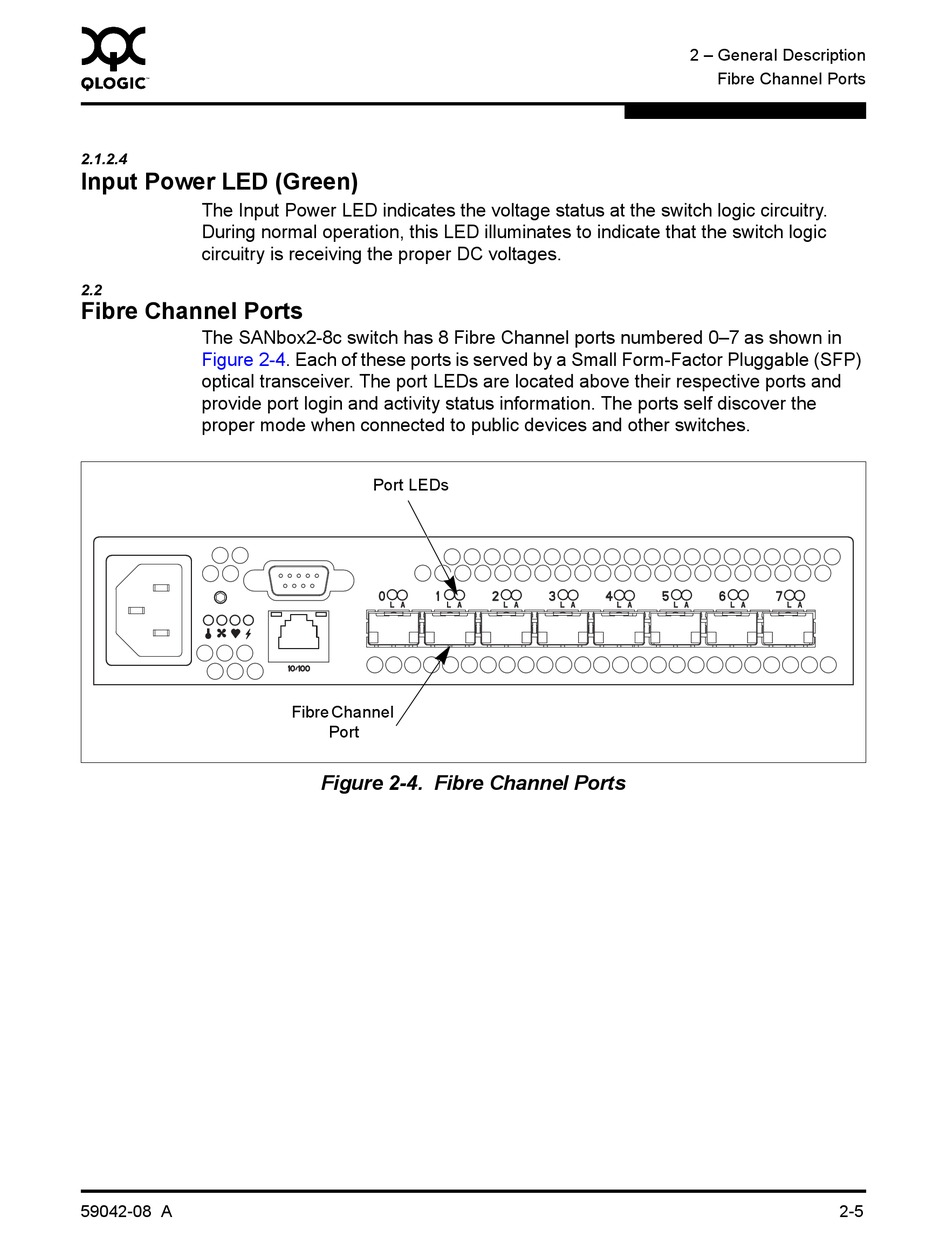

Figure 2-4. Fibre Channel Ports
2 – General Description
Fibre Channel Ports
2-5
