0
Switch_2
HBA_2 or APP_2
3.
Configure security on HBA_2 or APP_2 using the appropriate management
tool. Logins between the Switch_2 and HBA_2 or APP_2 will be challenged
(MD5) for their respective secrets. Therefore, the secrets that you
configured for HBA_2 or APP_2 on Switch_2 must also be configured on
HBA_2 or APP_2.
4.
Save Security_Set_2 and prepare to activate it. Activating a security set
does not affect currently logged-in ports. Therefore, to apply the security
policy that you designed in the security database, you must offline the
secured ports, activate the security set, then place the secured ports back
online.
59042-08 A

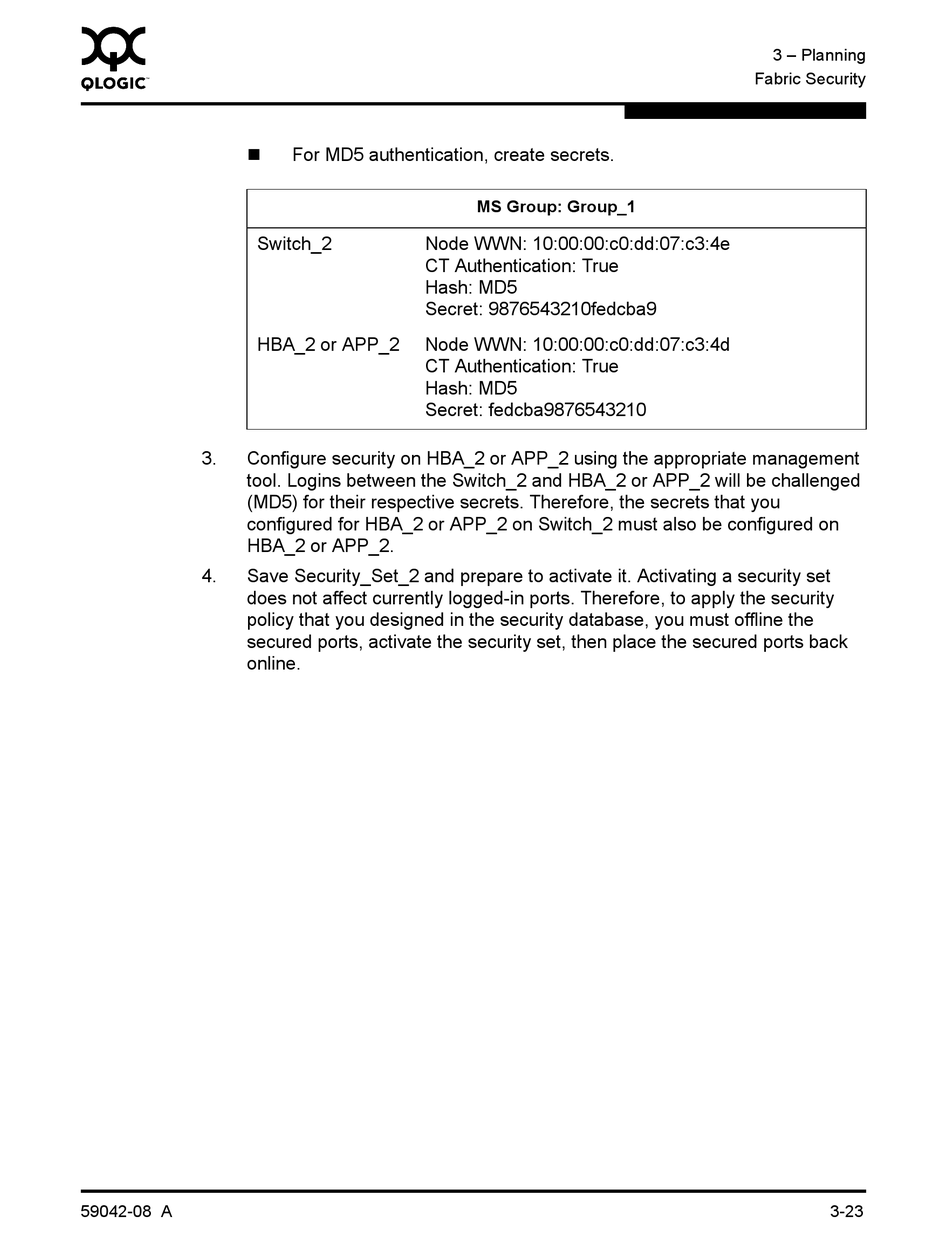

For MD5 authentication, create secrets.
Node WWN: 10:00:00:c0:dd:07:c3:4e
CT Authentication: True
Hash: MD5
Secret: 9876543210fedcba9
Node WWN: 10:00:00:c0:dd:07:c3:4d
CT Authentication: True
Hash: MD5
Secret: fedcba9876543210
MS Group: Group_1
3 – Planning
Fabric Security
3-23
