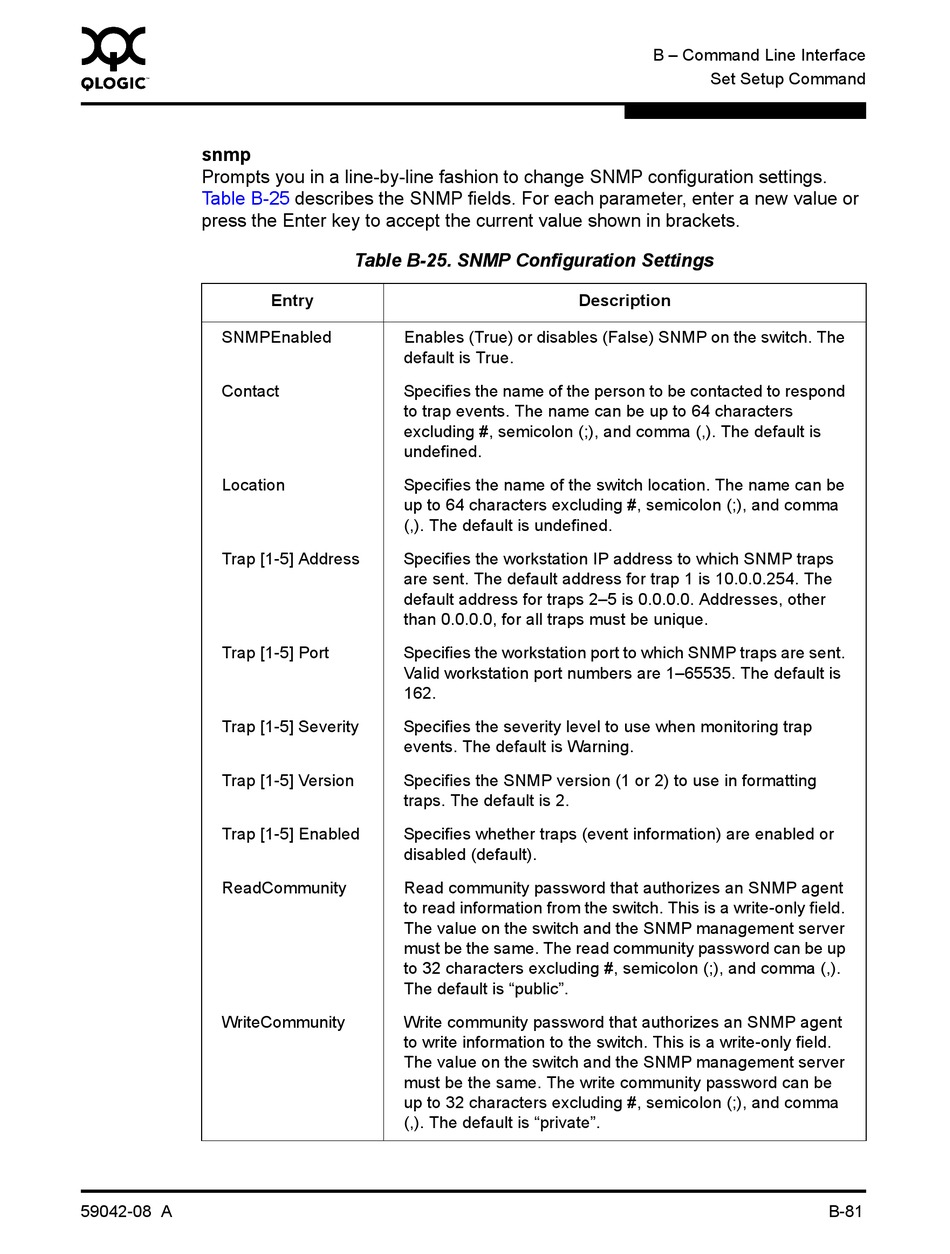

B-25 Snmp Configuration Settings - Qlogic SANbox2-8c Installation Manual

0
snmp
Prompts you in a line-by-line fashion to change SNMP configuration settings.
Table B-25
press the Enter key to accept the current value shown in brackets.
SNMPEnabled
Contact
Location
Trap [1-5] Address
Trap [1-5] Port
Trap [1-5] Severity
Trap [1-5] Version
Trap [1-5] Enabled
ReadCommunity
WriteCommunity
59042-08 A
describes the SNMP fields. For each parameter, enter a new value or
Table B-25. SNMP Configuration Settings
Entry
Enables (True) or disables (False) SNMP on the switch. The
default is True.
Specifies the name of the person to be contacted to respond
to trap events. The name can be up to 64 characters
excluding #, semicolon (;), and comma (,). The default is
undefined.
Specifies the name of the switch location. The name can be
up to 64 characters excluding #, semicolon (;), and comma
(,). The default is undefined.
Specifies the workstation IP address to which SNMP traps
are sent. The default address for trap 1 is 10.0.0.254. The
default address for traps 2–5 is 0.0.0.0. Addresses, other
than 0.0.0.0, for all traps must be unique.
Specifies the workstation port to which SNMP traps are sent.
Valid workstation port numbers are 1–65535. The default is
162.
Specifies the severity level to use when monitoring trap
events. The default is Warning.
Specifies the SNMP version (1 or 2) to use in formatting
traps. The default is 2.
Specifies whether traps (event information) are enabled or
disabled (default).
Read community password that authorizes an SNMP agent
to read information from the switch. This is a write-only field.
The value on the switch and the SNMP management server
must be the same. The read community password can be up
to 32 characters excluding #, semicolon (;), and comma (,).
The default is "public".
Write community password that authorizes an SNMP agent
to write information to the switch. This is a write-only field.
The value on the switch and the SNMP management server
must be the same. The write community password can be
up to 32 characters excluding #, semicolon (;), and comma
(,). The default is "private".
B – Command Line Interface
Set Setup Command
Description
B-81
