2.6.2

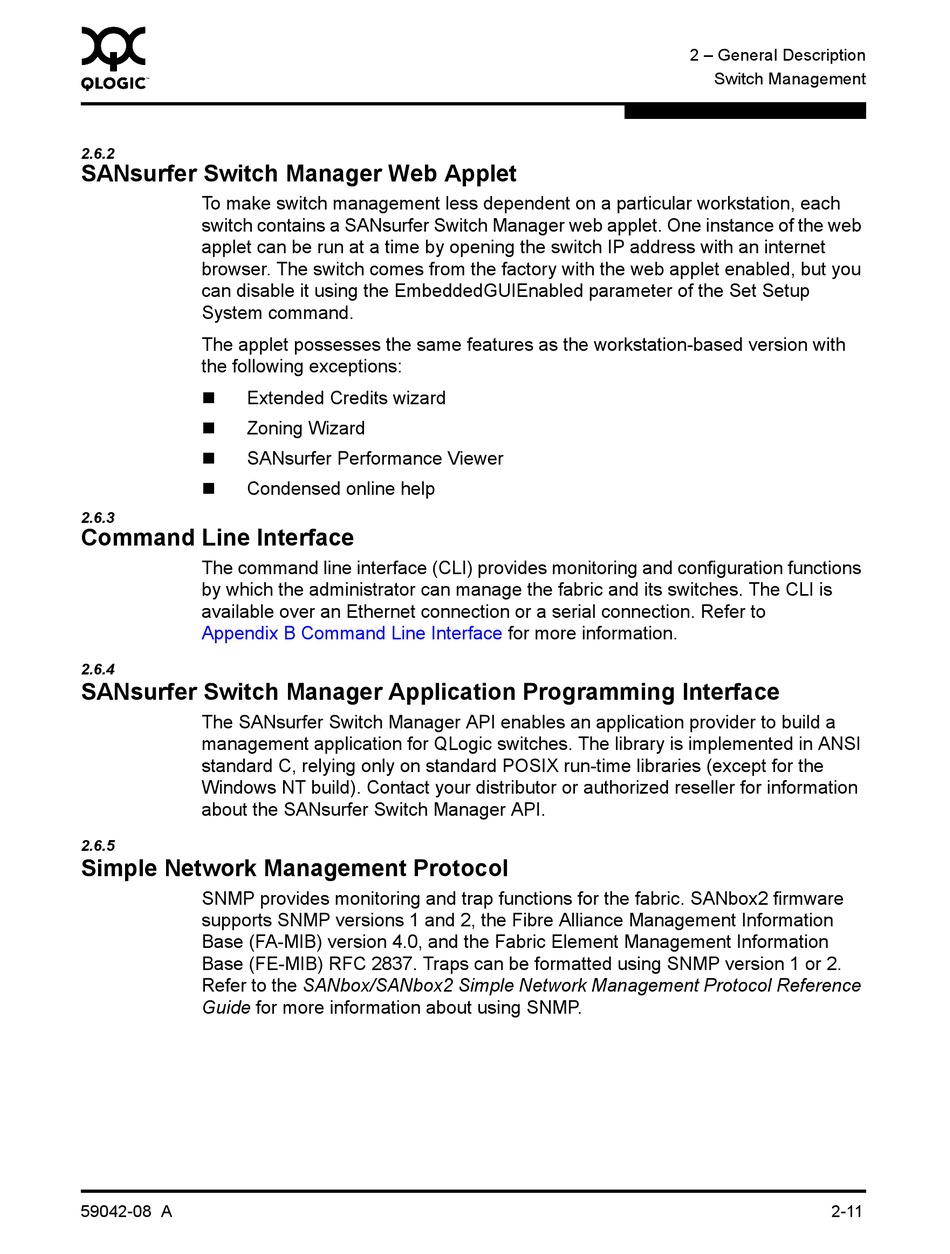

SANsurfer Switch Manager Web Applet
To make switch management less dependent on a particular workstation, each
switch contains a SANsurfer Switch Manager web applet. One instance of the web
applet can be run at a time by opening the switch IP address with an internet
browser. The switch comes from the factory with the web applet enabled, but you
can disable it using the EmbeddedGUIEnabled parameter of the Set Setup
System command.
The applet possesses the same features as the workstation-based version with
the following exceptions:
Extended Credits wizard
Zoning Wizard
SANsurfer Performance Viewer
Condensed online help
2.6.3
Command Line Interface
The command line interface (CLI) provides monitoring and configuration functions
by which the administrator can manage the fabric and its switches. The CLI is
available over an Ethernet connection or a serial connection. Refer to
Appendix B Command Line Interface
2.6.4
SANsurfer Switch Manager Application Programming Interface
The SANsurfer Switch Manager API enables an application provider to build a
management application for QLogic switches. The library is implemented in ANSI
standard C, relying only on standard POSIX run-time libraries (except for the
Windows NT build). Contact your distributor or authorized reseller for information
about the SANsurfer Switch Manager API.
2.6.5
Simple Network Management Protocol
SNMP provides monitoring and trap functions for the fabric. SANbox2 firmware
supports SNMP versions 1 and 2, the Fibre Alliance Management Information
Base (FA-MIB) version 4.0, and the Fabric Element Management Information
Base (FE-MIB) RFC 2837. Traps can be formatted using SNMP version 1 or 2.
Refer to the SANbox/SANbox2 Simple Network Management Protocol Reference
Guide for more information about using SNMP.
59042-08 A
for more information.
2 – General Description
Switch Management
2-11
