Chassis Diagnostics

Chassis diagnostics are indicated by the chassis and power supply LEDs as
shown in
Output Power LED
(Green)
Power Supply Over
Temperature LED
(Red)
The following conditions are described:
Chassis Over Temperature LED is illuminated
Input Power LED is extinguished
Fan Fail LED is illuminated
Output Power LED is extinguished
Power supply Over Temperature LED is illuminated
Note:
59021-07 A

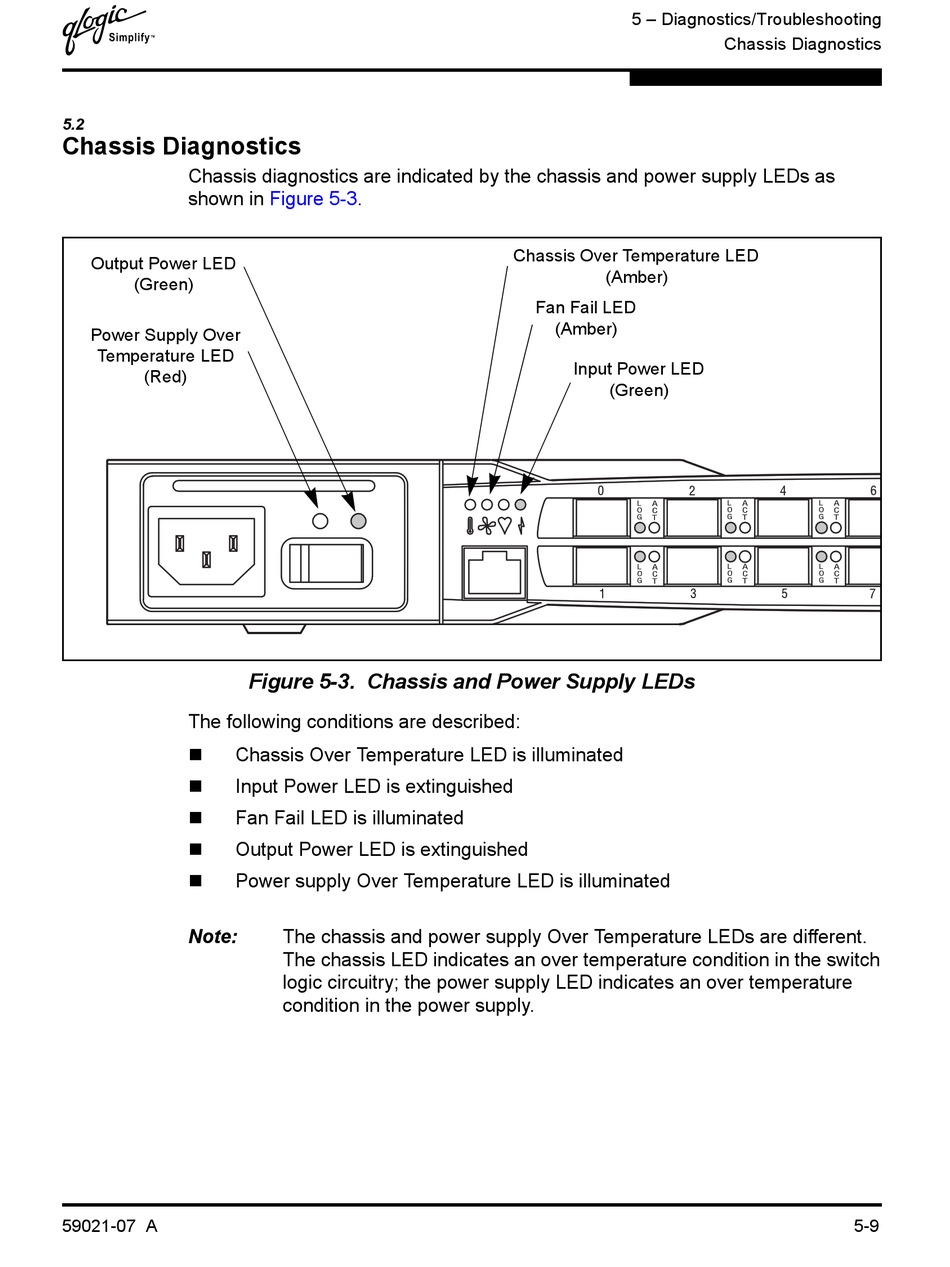

Figure 5-3.
Figure 5-3. Chassis and Power Supply LEDs
The chassis and power supply Over Temperature LEDs are different.
The chassis LED indicates an over temperature condition in the switch
logic circuitry; the power supply LED indicates an over temperature
condition in the power supply.
