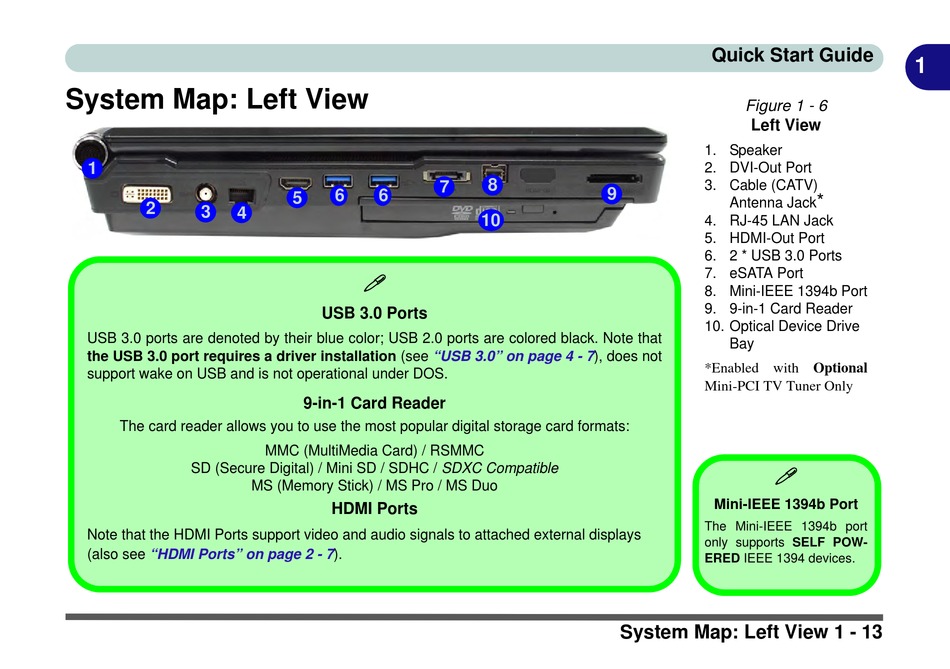

System Map: Left View

1
2
3
4
USB 3.0 ports are denoted by their blue color; USB 2.0 ports are colored black. Note that
the USB 3.0 port requires a driver installation (see
support wake on USB and is not operational under DOS.
The card reader allows you to use the most popular digital storage card formats:
SD (Secure Digital) / Mini SD / SDHC / SDXC Compatible
Note that the HDMI Ports support video and audio signals to attached external displays
(also see "HDMI Ports" on page 2 -
6 6
5

USB 3.0 Ports
9-in-1 Card Reader
MMC (MultiMedia Card) / RSMMC
MS (Memory Stick) / MS Pro / MS Duo
HDMI Ports
7).
8
7
9
10
"USB 3.0" on page 4 - 7), does not
Quick Start Guide
Figure 1 - 6
Left View
1. Speaker
2. DVI-Out Port
3. Cable (CATV)
Antenna Jack
4. RJ-45 LAN Jack
5. HDMI-Out Port
6. 2 * USB 3.0 Ports
7. eSATA Port
8. Mini-IEEE 1394b Port
9. 9-in-1 Card Reader
10. Optical Device Drive
Bay
*Enabled with Optional
Mini-PCI TV Tuner Only

Mini-IEEE 1394b Port
The Mini-IEEE 1394b port
only supports SELF POW-
ERED IEEE 1394 devices.
System Map: Left View 1 - 13
